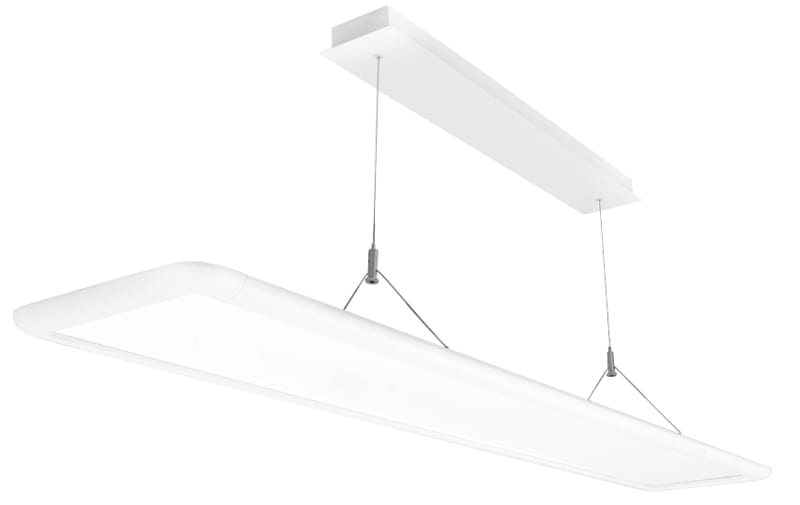

Sense AIR 3600LM 39W/840

SG Armaturen 212242 SENSE AIR 840.

Manufacturer part number (MPN)

212242

EAN / GTIN

7021982122422

Sales unit

pcs

Power

39 W

Luminous flux

3600 lm

Efficacy

100 lm/W

Lumen

3600lm

IP Class

IP20

Colour temperature

4000K

Colour rendering (Ra)

Ra>80

Lifetime

100,000 L80/B20>

Mounting

Suspended, Indoor

System wattage

36W

Max. luminaires per circuit breaker

B10: 14, B16: 23, C10: 22, C16: 36

Leakage current (mA)

0.31

Type of light source

LED

MacAdams factor

SDCM: 3

Light distribution

Direct/Indirect 70/30%

Optic

Opal prismatic

UGR

UGR<19

Photobiological safety

RG 0

Type

On/Off

Luminaire class

Class I

Contains light source of energy class

C

Breeam

Fulfils Hea 01 for flicker free lighting

Housing

Steel, Aluminium

Colour

White

Optics

Acrylic (PMMA)

Wire set

2x2m wire kit

Connection

Screwless terminal block

Length (mm) L

1200

Width (mm) W

210

Height (mm) H

13

Weight (kg) gross/net

4.7 / 4.5

Packaging dimensions (mm)

1250 x 365 x 42

Operation by Bluetooth

No

Device emplacement

Indoor positioning

With movement sensor

No

Nominal operation time

8–12

RAL-number

9003

Suitable for light line configuration

No

Suitable for workplace according to EN 12464-1

No

Lamp type

LED not exchangeable

With light source

Yes

Suitable for number of light sources

1

Housing material

Aluminium

Housing colour

White

Material cover

Plastic matt/satinized

Type of grid

None

Voltage type

AC

Nominal voltage

222–240 V

Type of control gear

LED operating device current-controlled

With control gear

Yes

Exchangeable control gear

No

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DALI

No

Dimming DALI-2

No

Dimming DMX

No

Dimming programmable

No

Dimming DSI

No

Dimming RF

No

Dimming potentiometer (integrated)

No

Dimming manufacturer's proprietary system

No

Dimming mains voltage modulation

No

Dimming phase cut-off (trailing edge)

No

Dimming phase cut-on (leading edge)

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

No dim function

Yes

Colour consistency (McAdam ellipse)

SDCM3

Light outlet

Direct/indirect

Energy efficiency class of the built-in lamp

A++, A+, A (LED)

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

A++

Degree of protection (IP)

IP20

Impact strength

IK00

Protection class according to IEC 61140

I

Suitable for emergency lighting

No

Filament test according to IEC 60695-2-11

None

Suitable for lamp power

36 W

Max. system power

36 W

Rated luminous flux according to IEC 62722-2-1

3600 lm

Colour of light

White

Luminaire efficacy

93 lm/W

Colour rendering index CRI

80-89

Unified Glare Ratio (UGR)

17

Power factor

100

Colour of light adjustable

No

Luminous flux adjustable

No

Beam angle adjustable

No

Width

200 mm

Height/depth

13 mm

Length

1200 mm

With suspension

Yes

Pendant length

0–2000 mm

Type of wiring

Suitable for loop-through wiring

Number of poles

1

Conductor cross section

2.5 mm²

Connection type

Push-in clamp

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

HS Code

9405.11

• EAN 7021982122422
• SAP 1200258002
• Code 82232102
