SG Armaturen

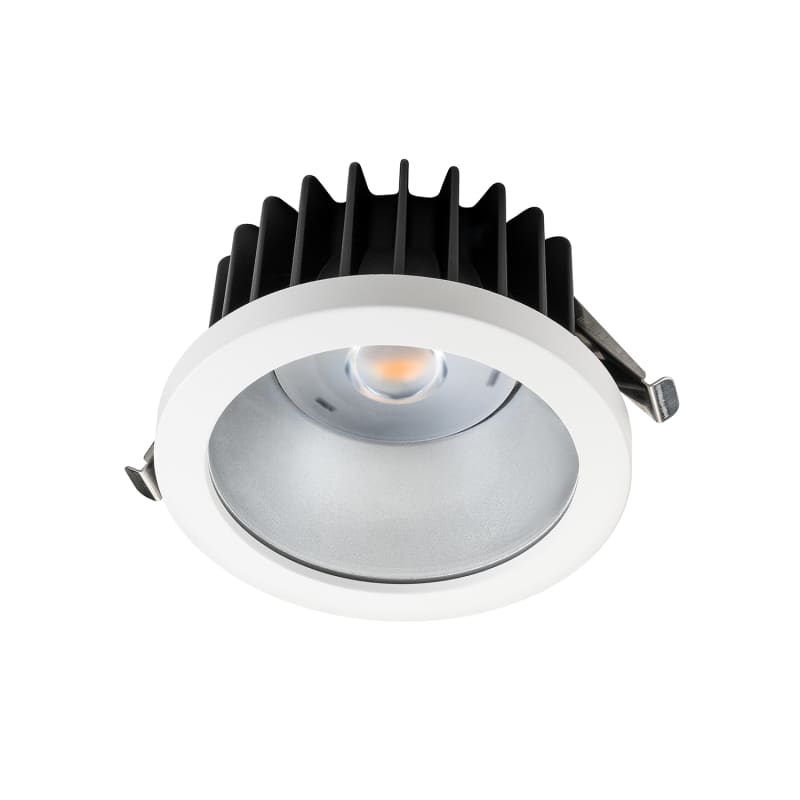

RAX SOFT 150 Satin 4000 34W/840
Part number212751EAN / GTIN7021982127519HS code9405.11
Lighting & Electrical Accessories
Downlights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 212751 RAX SOFT IP65 150 WHITE 4000 4000K, 34W, 3780lm, L90/B10 100000, IP65, Class II SELV, SDCM 2.
Technical Specifications
- Manufacturer part number (MPN)
- 212751
- EAN / GTIN
- 7021982127519
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Power
- 34 W
- Efficacy
- 109 lm/W
- Lumen
- 3690lm
- IP Class
- IP65
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L90/B10>
- Mounting
- Recessed, Indoor / Outdoor
- System wattage
- 34W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 17, B16: 27, C10: 28, C16: 45
- Type of light source
- LED
- Luminous flux
- 3690lm
- MacAdams factor
- SDCM: 2
- Light distribution
- Direct
- Optic
- Satin Matt Reflector
- Beam angle
- 68°
- UGR
- UGR<25
- Visible flicker (PstLM)
- 0.02
- Stroboscopic flicker (SVM)
- 0.01
- Photobiological safety
- RG 1
- Type
- On/Off
- Luminaire class
- Class II SELV
- IK Class
- IK06
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- White/Satin mat
- Optics
- Glass
- Connection
- 5 pol Screwless terminal block
- Height (mm) H
- 94
- Diameter (mm) D
- 175
- Cut-out (mm)
- 150
- Ceiling void depth (mm)
- 79
- Weight (kg) gross/net
- 2.2 / 1.8
- Packaging dimensions (mm)
- 360 x 185 x 160
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021982127519
- SAP 1200747189
- Code 83886086
Product Documentation
Document preview: RAX SOFT 150 Satin 4000 34W/840 (212751) — Specification sheet
