SG Armaturen
DISC 285X285 White 22W/827 DALI
Part number606058EAN / GTIN7021986060584HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

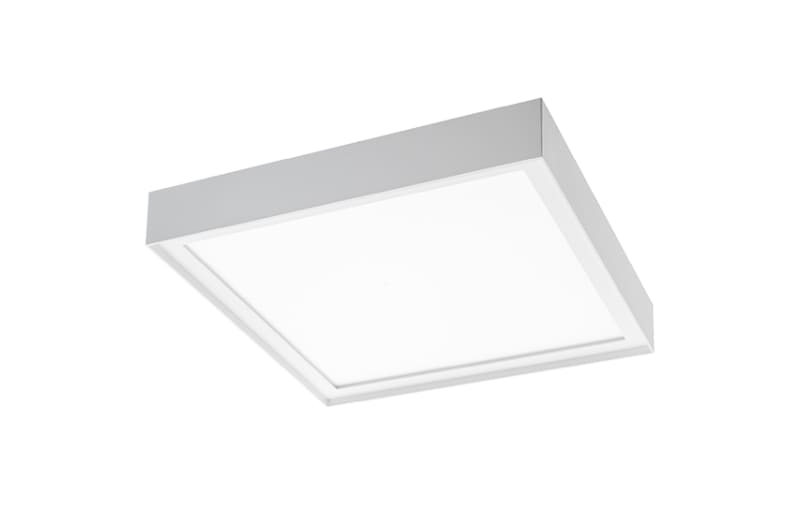

SG Armaturen 606058 DISC 285X285 WHITE 2700K DALI.
Technical Specifications
- Manufacturer part number (MPN)
- 606058
- EAN / GTIN
- 7021986060584
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Power
- 22 W
- Efficacy
- 109 lm/W
- Lumen
- 2170lm
- IP Class
- IP20
- Colour temperature
- 2700K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Surface, Indoor
- System wattage
- 20W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 35, B16: 55, C10: 57, C16: 92
- Type of light source
- LED
- Luminous flux
- 2170lm
- Programmable with CLO
- Yes (affects lumen output)
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal prismatic
- Beam angle
- 85°
- UGR
- UGR<22
- Photobiological safety
- RG 0
- Type
- DALI-2 / Push Dim
- Luminaire class
- Class II
- IK Class
- IK10
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- White
- Optics
- Acrylic (PMMA)
- Connection
- Screwless terminal block
- Length (mm) L
- 283
- Width (mm) W
- 283
- Height (mm) H
- 55
- Weight (kg) gross/net
- 2.285 / 2.098
- Packaging dimensions (mm)
- 303 x 308 x 60
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986060584
- SAP 1200374557
- Code 82387203
Product Documentation
Document preview: DISC 285X285 White 22W/827 DALI (606058) — Specification sheet
