SG Armaturen
WAX Bollard Black (8249044308)
Part number8249044308EAN / GTIN5703821173179HS code9405.42
Lighting & Electrical Accessories
Outdoor & Street Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

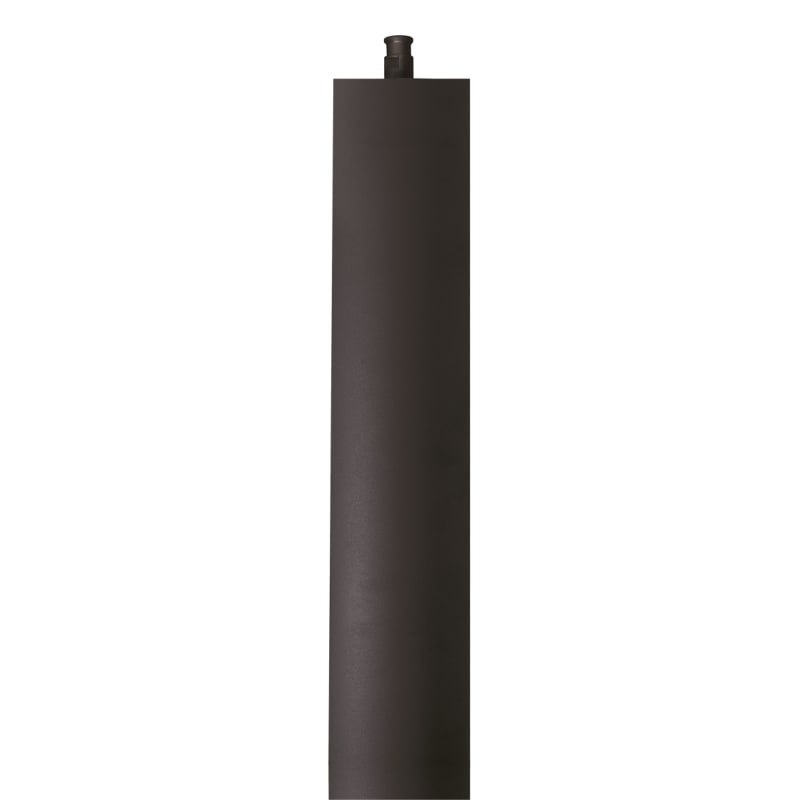

SG Armaturen 8249044308 Wax Bollard black IP54.
Technical Specifications
- Manufacturer part number (MPN)
- 8249044308
- EAN / GTIN
- 5703821173179
- Sales unit
- pcs
- IP Class
- IP54
- Mounting
- Outdoor
- Luminaire class
- Class II
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Black (20% gloss)
- Length (mm) L
- 759
- Width (mm) W
- 160
- Height (mm) H
- 160
- Weight (kg) gross/net
- 8.55 / 8.35
- Packaging dimensions (mm)
- 965 x 265 x 282
- Protection class according to IEC 61140
- II
- Conductor cross section
- 6 mm²
- Housing colour
- Black
- Surface protection
- Galvanised
- Voltage type
- AC
- Type of control gear
- LED operating device current-controlled
- Colour rendering index CRI
- 80-89
- Diameter
- 160 mm
- With light sensor
- No
- Number of poles
- 2
- Height/depth
- 759 mm
- Housing material
- Aluminium
- Material
- Aluminium
- Material cover
- Glass transparent
- Impact strength
- IK07
- With connection cable
- Yes
- Nominal voltage
- 230 V
- Degree of protection (IP)
- IP66
- With light source
- No
- Suitable for number of light sources
- 1
- With control gear
- No
- Adjustable optics
- Yes
- Remote control
- None
- With radio control
- No
- With light regulation program control
- No
- Constant light output (CLO)
- No
- IFTTT support available
- No
- Type of wiring
- Ending
- Rated life time L90/B10 at 25 °C
- 100000 h
- Rated ambient temperature according to IEC 62722-2-1
- 25 °C
- Dimming 0-10 V
- No
- Dimming 1-10 V
- No
- Dimming DALI
- No
- Dimming DMX
- No
- Dimming potentiometer (integrated)
- No
- Dimming GPRS
- No
- Dimming LineSwitch
- No
- Dimming manufacturer's proprietary system
- No
- Dimming mains voltage modulation
- No
- Dimming phase cut-off (trailing edge)
- No
- Dimming phase cut-on (leading edge)
- No
- Dimming programmable
- No
- Dimming RF
- No
- Dimming Its Wave Reduction
- No
- Dimming Touch and Dim
- No
- Dimming Zigbee
- No
- Dimming with push-button
- No
- No dim function
- No
- Dimming DSI
- No
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Highest energy efficiency class of the exchangeable lamp
- A++
- Lowest energy efficiency class of the exchangeable lamp
- A
- Operation by Bluetooth
- No
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Exchangeable control gear
- No
- Country of origin
- Denmark
Standards & Compliance
- HS Code
- 9405.42
Cross References
- EAN 5703821173179
- SAP 1200071072
- Code 81919077
Product Documentation
Document preview: WAX Bollard Black (8249044308) — Specification sheet
