SG Armaturen

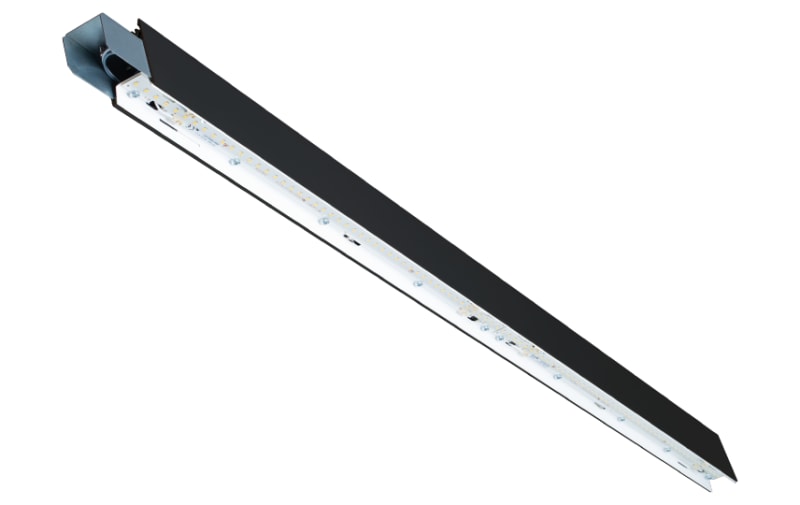

Lineal S 1400 Black 37W/830 DALI
Part number8246094649EAN / GTIN5703821177986HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 8246094649 LINEAL 1400mm, RA80, 4640lm, SDCM 3, Service life 100 000 hours (L80/B10), class In, IP20.
Technical Specifications
- Manufacturer part number (MPN)
- 8246094649
- EAN / GTIN
- 5703821177986
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Power
- 37 W
- Efficacy
- 116 lm/W
- Lumen
- 4280lm
- IP Class
- IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B10>
- Mounting
- Suspended, Indoor
- System wattage
- 37W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 13, B16: 20, C10: 21, C16: 33
- Leakage current (mA)
- 0.29
- Type of light source
- LED
- Luminous flux
- 4280lm
- Programmable with CLO
- Yes (affects lumen output)
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct/Indirect 50/50%
- UGR
- UGR<22
- Photobiological safety
- RG 1
- Type
- DALI-2 / Push Dim
- Luminaire class
- Class I
- IK Class
- IK08
- Contains light source of energy class
- D
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Black
- Module
- 1400
- Wire set
- 1x2m wire kit w/ceiling bracket
- Connection
- 5-pole Winsta mini with 5x1,5mm2 through wiring
- Length (mm) L
- 1401
- Width (mm) W
- 42
- Height (mm) H
- 70
- Weight (kg) gross/net
- 3.5 / 3.3
- Packaging dimensions (mm)
- 1560 x 50 x 80
- Country of origin
- Denmark
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 5703821177986
- SAP 1200374583
- Code 82385102
Product Documentation
Document preview: Lineal S 1400 Black 37W/830 DALI (8246094649) — Specification sheet
