SG Armaturen

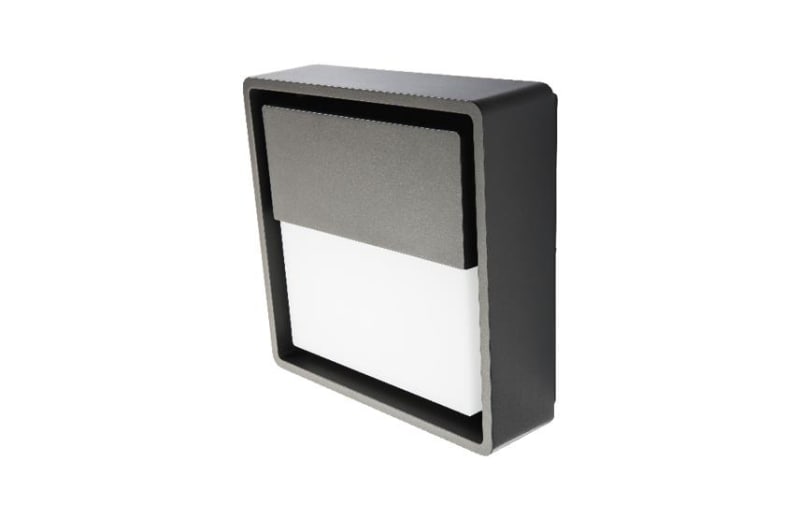

Frame SQ WALL Graphite 7W/830
Part number605266EAN / GTIN7021986052664HS code9405.11
Lighting & Electrical Accessories
Outdoor Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 605266 FRAME SQUARE WALL GRAPHITE.
Technical Specifications
- Manufacturer part number (MPN)
- 605266
- EAN / GTIN
- 7021986052664
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Power
- 7 W
- Efficacy
- 43 lm/W
- Lumen
- 300lm
- IP Class
- IP66
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L70/B20>
- Mounting
- Surface, Indoor / Outdoor
- System wattage
- 7W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 77, B16: 123, C10: 77, C16: 123
- Type of light source
- LED
- Luminous flux
- 300lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal
- Beam angle
- 110°
- Photobiological safety
- RG 0
- Type
- Trailing edge
- Luminaire class
- Class II
- IK Class
- IK10
- Fire protection class
- 850°C - 30s
- Contains light source of energy class
- E
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Graphite
- Optics
- UV-stabilized polycarbonate
- Connection
- Screwless terminal block
- Length (mm) L
- 240
- Width (mm) W
- 240
- Height (mm) H
- 77
- Weight (kg) gross/net
- 2.47 / 2.1
- Packaging dimensions (mm)
- 248 x 248 x 92
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986052664
- SAP 1200117303
- Code 81972247
Product Documentation
Document preview: Frame SQ WALL Graphite 7W/830 (605266) — Specification sheet
More from SG Armaturen
SG Armaturen
Frosta 480 Dome Akryl
211724
SG Armaturen
Frame White 8W/830 Twilight
605542
SG Armaturen

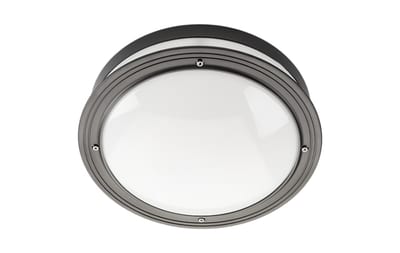

Piano Graphite 19W/830 IP65 Sensor
633877
SG Armaturen

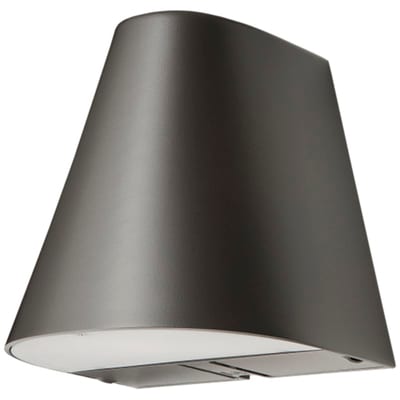

Spike Graphite 10W/840
623936
SG Armaturen

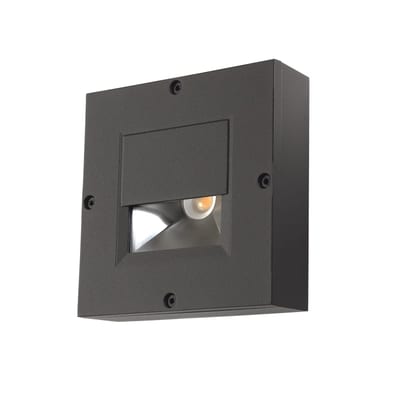

Callisto WALL Square Graphite 3W/840
923128
SG Armaturen

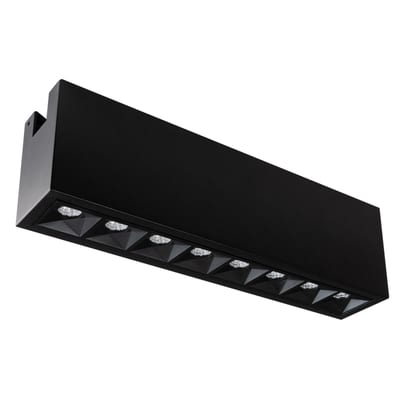

ZIP 1T Inspire 300 Black 15W/930
300779
SG Armaturen

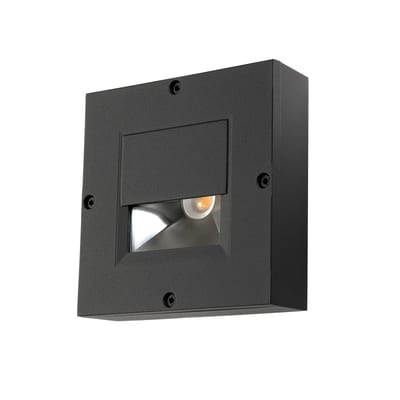

Callisto WALL Square Black 3W/840
923121
SG Armaturen

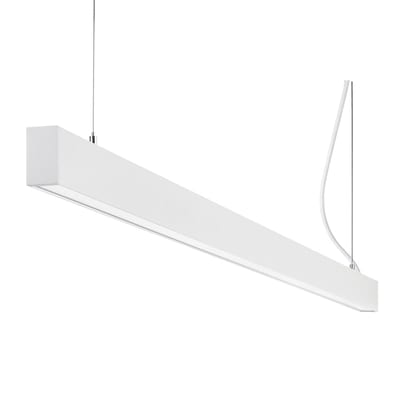

Inspire 1500 White Prism 35W/840
