SG Armaturen

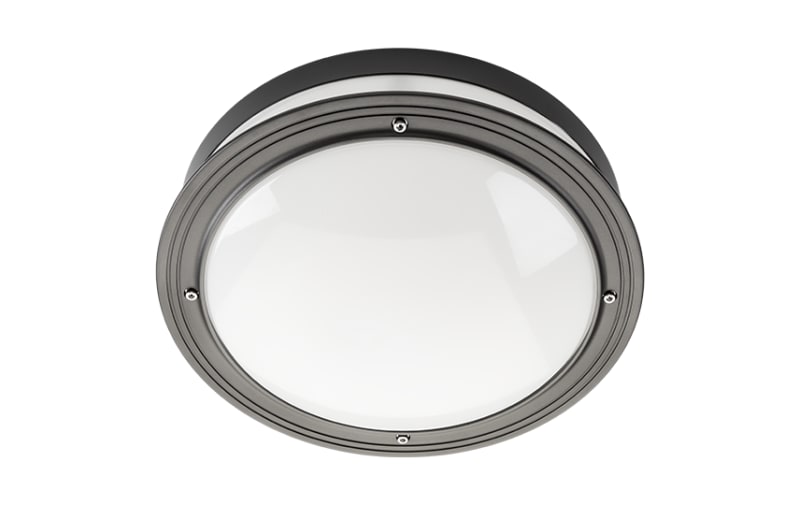

Piano Graphite 19W/830 IP65 Sensor
Part number633877EAN / GTIN7021986338775HS code8536.90
Lighting & Electrical Accessories
Outdoor Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 633877 IP65 3000K KL.1.
Technical Specifications
- Manufacturer part number (MPN)
- 633877
- EAN / GTIN
- 7021986338775
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 8 pcs
- IP rating
- IP65
- Power
- 19 W
- Efficacy
- 118 lm/W
- Lumen
- 1650lm
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L70/B50>
- Mounting
- Surface, Outdoor
- System wattage
- 14W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 44, B16: 30, C10: 44, C16: 51
- Type of light source
- LED
- Luminous flux
- 1650lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct/Indirect
- Optic
- Opal
- Beam angle
- 110°
- Photobiological safety
- RG 0
- Type
- Sensor
- Luminaire class
- Class I
- IK Class
- IK10
- Fire protection class
- 850°C - 30s
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Graphite
- Optics
- UV-stabilized polycarbonate
- Module
- 2000
- Connection
- Screwless terminal block
- Height (mm) H
- 105
- Diameter (mm) D
- 340
- Weight (kg) gross/net
- 2.616 / 2.18
- Packaging dimensions (mm)
- 340 x 340 x 120
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7021986338775
- SAP 1000704778
- Code 8659719
Product Documentation
Document preview: Piano Graphite 19W/830 IP65 Sensor (633877) — Specification sheet
