SG Armaturen

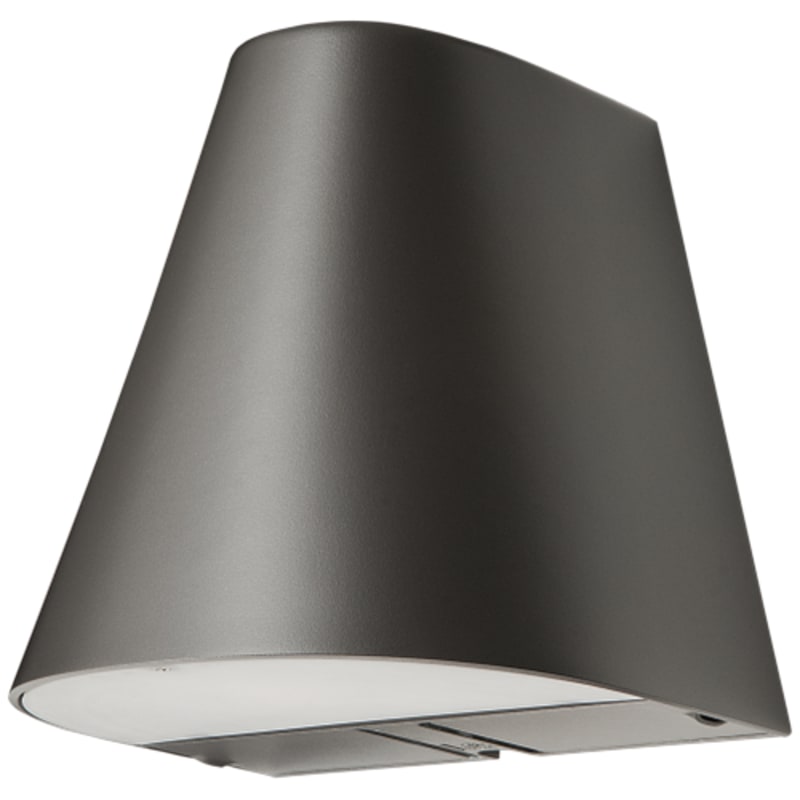

Spike Graphite 10W/840
Part number623936EAN / GTIN7021986239362HS code9405.11
Lighting & Electrical Accessories
Outdoor Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 623936 SPIKE graphite 4000K 11W, 920lm, SDCM 3, IP44, IK08, KL In, RA80, L70/B50, A+.
Technical Specifications
- Manufacturer part number (MPN)
- 623936
- EAN / GTIN
- 7021986239362
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Power
- 10 W
- Efficacy
- 113 lm/W
- Lumen
- 900lm
- IP Class
- IP44
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L90/B10>
- Mounting
- Surface, Outdoor
- System wattage
- 8W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 33, B16: 52, C10: 40, C16: 64
- Type of light source
- LED
- Luminous flux
- 900lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal
- Beam angle
- 95°
- ULOR (<1%)
- Yes
- Type
- Trailing edge
- Luminaire class
- Class I
- IK Class
- IK08
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Sunda Hus
- C-
- Housing
- Aluminium
- Colour
- Graphite
- Optics
- UV-stabilized polycarbonate
- Connection
- Screwless terminal block
- Width (mm) W
- 171
- Height (mm) H
- 173
- Depth (D)
- 155
- Weight (kg) gross/net
- 2.028 / 1.529
- Packaging dimensions (mm)
- 180 x 165 x 185
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986239362
- SAP 1200369599
- Code 82376222
Product Documentation
Document preview: Spike Graphite 10W/840 (623936) — Specification sheet
More from SG Armaturen
SG Armaturen
Callisto WALL Square Graphite 3W/840
923128
SG Armaturen
ZIP 1T Inspire 300 Black 15W/930
300779
SG Armaturen
Callisto WALL Square Black 3W/840
923121
SG Armaturen
Inspire 1500 White Prism 35W/840
212872
SG Armaturen
Callisto Reflector Black WALL/POLE
790
SG Armaturen
WAX Flood GREY 27° 45W/830 IP66
8246090711
SG Armaturen

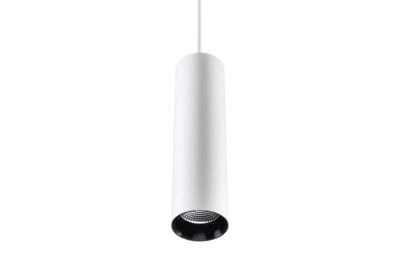

ZIP TUBE Pendant MINI White 14W/930 40°
320641
SG Armaturen

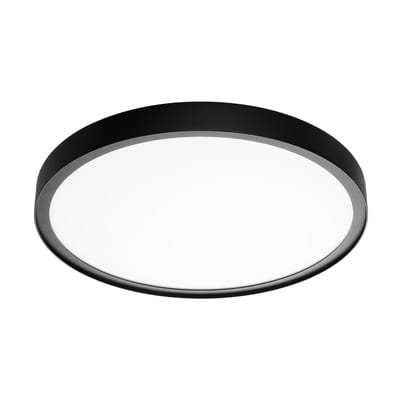

DISC 480 D/In Black 34W 3K/4K DALI
