SG Armaturen

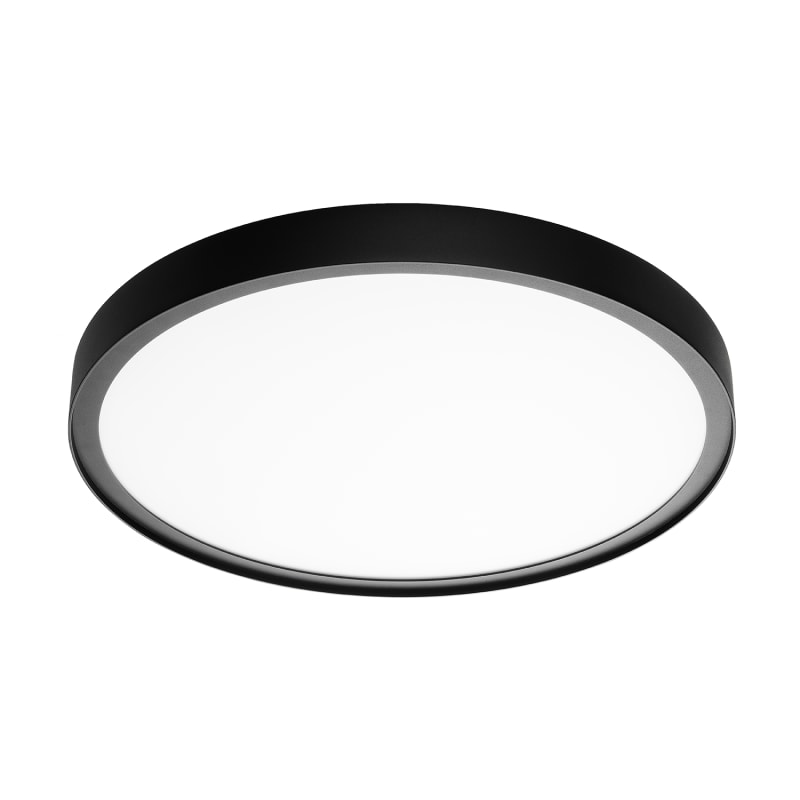

DISC 480 D/In Black 34W 3K/4K DALI
Part number606205EAN / GTIN7021986062052HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 606205 DISC 480 D/In BLACK 3000/4000K DALI, 34, 4270lm, Ra>80, SDCM 3, L80/B20>100.000, IK10, IP20.
Technical Specifications
- Manufacturer part number (MPN)
- 606205
- EAN / GTIN
- 7021986062052
- Sales unit
- pcs
- Package quantity
- 3 pcs
- Power
- 34 W
- Efficacy
- 118 lm/W
- Lumen
- 4000/4270lm
- IP Class
- IP20
- Colour temperature
- 3000/4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Surface, Indoor
- System wattage
- 34W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 32, B16: 50, C10: 52, C16: 85
- Type of light source
- LED
- Luminous flux
- 4000/4270lm
- Programmable with CLO
- Yes (affects lumen output)
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal prismatic
- Beam angle
- 85°
- UGR
- UGR<22
- Visible flicker (PstLM)
- 0,02
- Stroboscopic flicker (SVM)
- 0,01
- Type
- DALI-2 / Push Dim
- Luminaire class
- Class II
- IK Class
- IK10
- Contains light source of energy class
- D/D/C/C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium/plastic
- Colour
- Black
- Optics
- Acrylic (PMMA)
- Connection
- Screwless terminal block
- Height (mm) H
- 62
- Diameter (mm) D
- 467
- Weight (kg) gross/net
- 3.6 / 3.188
- Packaging dimensions (mm)
- 490 x 485 x 70
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986062052
- SAP 1200880685
- Code 84119990
Product Documentation
Document preview: DISC 480 D/In Black 34W 3K/4K DALI (606205) — Specification sheet
More from SG Armaturen
SG Armaturen
Shopline 3T DALI STRAIGHT Joint White
312512
SG Armaturen
Sense 495 OPAL Prism 31W/840
212292
SG Armaturen
Callisto WALL Square White 3W/827
923123
SG Armaturen
WAX Flood 27° Black 3500LM 3000K DALI
8241001934
SG Armaturen
UNO Graphite E27 (623640)
SG Armaturen
Circulus MAXI White 30W/840 Emergency Lighting
214019
SG Armaturen
Arena 1200 57W/840 (8246093527)
SG Armaturen

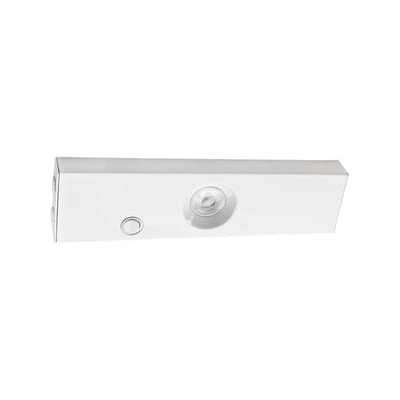

CHEF White 1X5W/930 (391055)
