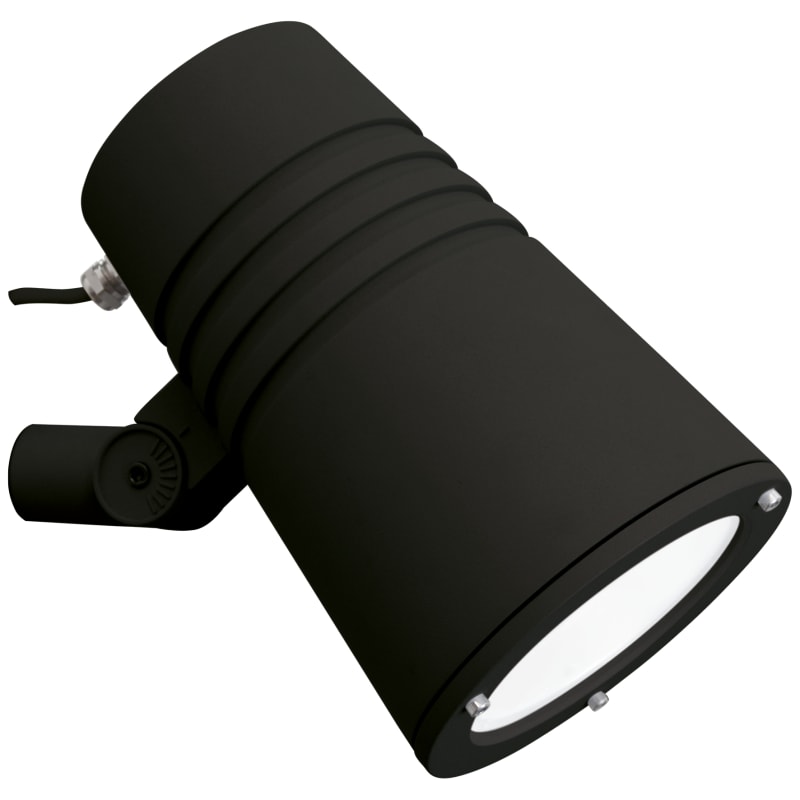

WAX Flood 27° Black 3500LM 3000K DALI
Part number8241001934EAN / GTIN5703821213165HS code9405.42
Lighting & Electrical Accessories
Floodlights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 8241001934 WAX FLOOD 27° BLACK 3500lm 3000K DALI, 34W, Ra>80, SDCM2, L90/B10 100.000, IK07, IP66.
Technical Specifications
- Manufacturer part number (MPN)
- 8241001934
- EAN / GTIN
- 5703821213165
- Sales unit
- pcs
- Package quantity
- 45 pcs
- Colour temperature
- 3000 K
- Efficacy
- 103 lm/W
- Lumen
- 3500lm
- IP Class
- IP66
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L90/B10>
- Mounting
- Pole, wall, bollard or earthing rod, Outdoor
- System wattage
- 34W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 18, B16: 30, C10: 31, C16: 51
- Type of light source
- LED
- Luminous flux
- 3500lm
- Programmable with CLO
- Yes (affects lumen output)
- MacAdams factor
- SDCM: 2
- Light distribution
- Direct
- Optic
- Reflector Flood 27dg.
- Beam angle
- 27°
- Type
- DALI-2
- Driver
- 900mA
- Luminaire class
- Class II
- IK Class
- IK07
- Surge protection
- Integrated (min. 10 kV)
- Contains light source of energy class
- C
- Housing
- Die-cast aluminium
- Colour
- Black (20% gloss)
- Optics
- Tempered glass
- Cable
- Cable 4x1mm² 10m
- Wind projected area
- 0,0403m² - Max 5,3 kg
- Height (mm) H
- 268
- Diameter (mm) D
- 180
- Weight (kg) gross/net
- 4.7 / 4.5
- Packaging dimensions (mm)
- 230 x 230 x 280
- Country of origin
- Denmark
Standards & Compliance
- HS Code
- 9405.42
Cross References
- EAN 5703821213165
- SAP 1200950183
- Code 84238332
Product Documentation
Document preview: WAX Flood 27° Black 3500LM 3000K DALI (8241001934) — Specification sheet
