SG Armaturen

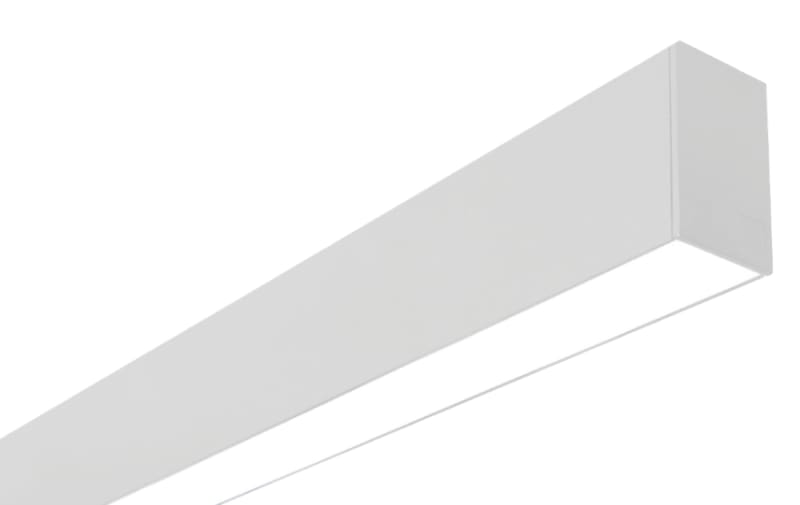

Lineal SURF 1120 18W/830 White DALI
Part number8246095871EAN / GTIN5703821180399HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 8246095871 LINEAL SURF 1120 WHITE 3000K DALI 18W,1900lm, RA80, SDCM 3, L80/B10, Class In, IP20.
Technical Specifications
- Manufacturer part number (MPN)
- 8246095871
- EAN / GTIN
- 5703821180399
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Power
- 18 W
- Efficacy
- 110 lm/W
- Lumen
- 1870lm
- IP Class
- IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B10>
- Mounting
- Surface, Indoor
- System wattage
- 17W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 15, B16: 24, C10: 25, C16: 41
- Leakage current (mA)
- 0.29
- Type of light source
- LED
- Luminous flux
- 1870lm
- Programmable with CLO
- Yes (affects lumen output)
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- UGR
- UGR<26
- Photobiological safety
- RG 0
- Type
- DALI-2 / Push Dim
- Luminaire class
- Class I
- IK Class
- IK08
- Contains light source of energy class
- D
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- White (RAL 9003)
- Module
- 1120
- Connection
- 5-pole Winsta mini with 5x1,5mm2 through wiring
- Length (mm) L
- 1121
- Width (mm) W
- 42
- Height (mm) H
- 70
- Weight (kg) gross/net
- 2.25 / 2.175
- Packaging dimensions (mm)
- 1275 x 50 x 80
- Country of origin
- Denmark
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 5703821180399
- SAP 1200486555
- Code 82579101
Product Documentation
Document preview: Lineal SURF 1120 18W/830 White DALI (8246095871) — Specification sheet
