SG Armaturen

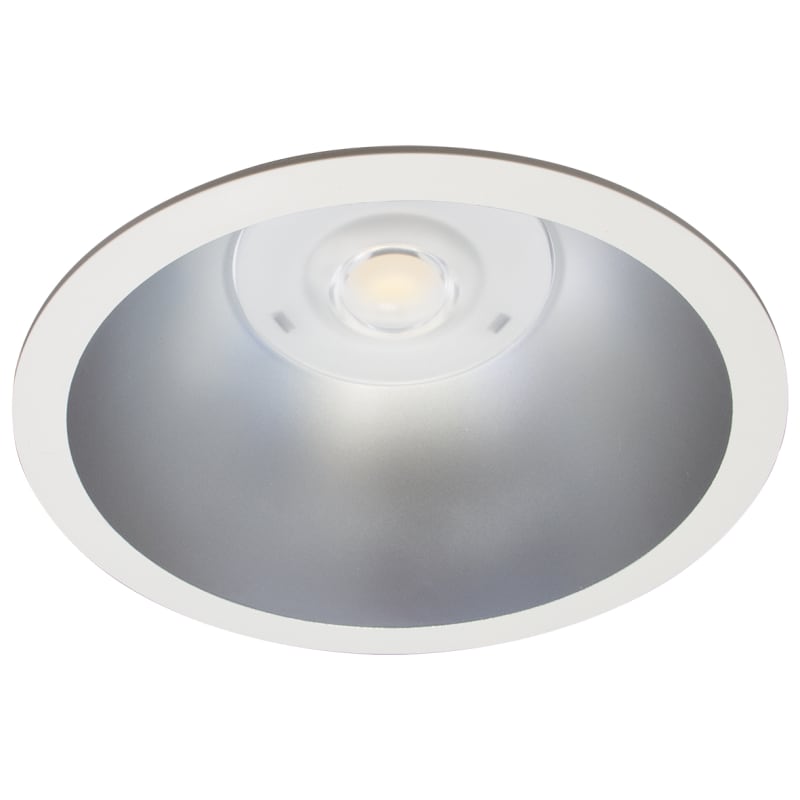

RAX SOFT 200 Satin 2200 22W/930 DALI
Part number212521EAN / GTIN7021982125218HS code9405.11
Lighting & Electrical Accessories
Downlights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 212521 RAX SOFT 200 SATIN 2200 3000K RA>90 DALI 22W, SDCM 2, Class II SELV, IP44/20, IK08, L90/B10 100.000.
Technical Specifications
- Manufacturer part number (MPN)
- 212521
- EAN / GTIN
- 7021982125218
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Power
- 22 W
- Efficacy
- 107 lm/W
- Lumen
- 2030lm
- IP Class
- IP54/IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>90
- Lifetime
- 100,000 L90/B10>
- Mounting
- Recessed, Indoor
- System wattage
- 19W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 32, B16: 50, C10: 52, C16: 85
- Type of light source
- LED
- Luminous flux
- 2030lm
- Emergency lumen
- 300lm
- MacAdams factor
- SDCM: 2
- Light distribution
- Direct
- Optic
- Satin Matt Reflector
- Beam angle
- 62°
- UGR
- UGR<19 up to 700 mA/2500 lm
- Photobiological safety
- RG 1
- Type
- DALI-2 / Push Dim
- Luminaire class
- Class II SELV
- IK Class
- IK07
- Contains light source of energy class
- E
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Flame retardant polycarbonate
- Colour
- White/Satin mat
- Optics
- Polycarbonat (PC)
- Cable
- Cable 5x0,75mm²
- Connection
- 5 pol Linect / screwless terminal block
- Height (mm) H
- 93
- Diameter (mm) D
- 216
- Cut-out (mm)
- 200
- Ceiling void depth (mm)
- 90
- Weight (kg) gross/net
- 1.2 / 1
- Packaging dimensions (mm)
- 240 x 240 x 102
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021982125218
- SAP 1200566403
- Code 82925749
Product Documentation
Document preview: RAX SOFT 200 Satin 2200 22W/930 DALI (212521) — Specification sheet
More from SG Armaturen
SG Armaturen
Lineal Recessed Start KIT White DALI
8246095693
SG Armaturen
ZIP PRO 3T Black 40W/930 40° DALI
320732
SG Armaturen
Circled Multi 27W/740 GREY
8246086398
SG Armaturen
VIEW 460 White 16W/940 IP44
111422
SG Armaturen
Arena ECO 1200 76W/840 WIDE DALI
607018
SG Armaturen
SOFT SLIM White 9W/930 DALI
903222
SG Armaturen
Artes White 8W/840 IP65 IK10
641702
SG Armaturen

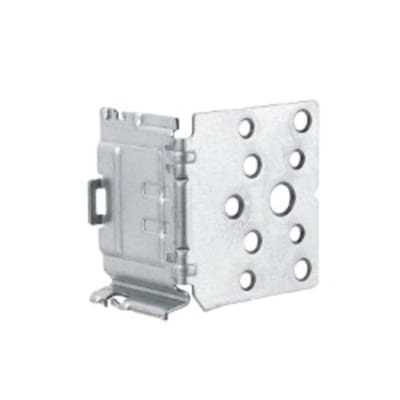

Stud Bracket Metal 2 Plates
