SG Armaturen
SOFT SLIM White 9W/930 DALI
Part number903222EAN / GTIN7021989032229HS code9405.11
Lighting & Electrical Accessories
Downlights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

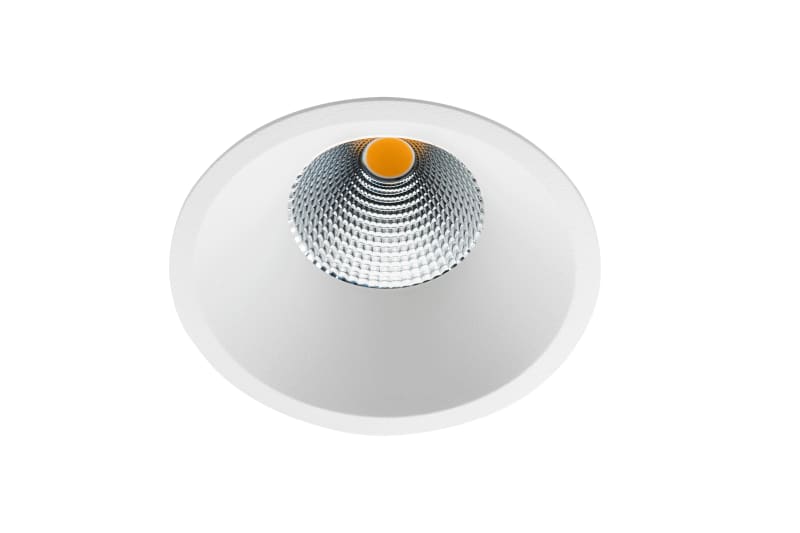

SG Armaturen 903222 SOFT SLIM Matte WHITE 3000K DALI.
Technical Specifications
- Manufacturer part number (MPN)
- 903222
- EAN / GTIN
- 7021989032229
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Power
- 9 W
- Efficacy
- 77 lm/W
- Lumen
- 850lm
- Wattage
- 9W
- IP Class
- IP54/IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra 98
- Lifetime
- 100,000 L90/B10>
- Mounting
- Recessed, Indoor / Outdoor
- System wattage
- 11W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 31, B16: 50, C10: 52, C16: 85
- Type of light source
- LED
- Luminous flux
- 850lm
- MacAdams factor
- SDCM: 2
- Light distribution
- Direct
- Optic
- Reflector
- Beam angle
- 42°
- UGR
- UGR<19
- Photobiological safety
- RG 1
- Type
- DALI-2
- Luminaire class
- Class II SELV
- Contains light source of energy class
- F
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- White (RAL 9003)
- Optics
- Tempered glass
- Connection
- 5 pol Linect / screwless terminal block
- Height (mm) H
- 52
- Diameter (mm) D
- 90
- Cut-out (mm)
- 83
- Ceiling void depth (mm)
- 51
- Distance to flammable materials
- 10mm
- Weight (kg) gross/net
- 0.43 / 0.385
- Packaging dimensions (mm)
- 130 x 115 x 85
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021989032229
- SAP 1200423445
- Code 82466452
Product Documentation
Document preview: SOFT SLIM White 9W/930 DALI (903222) — Specification sheet
