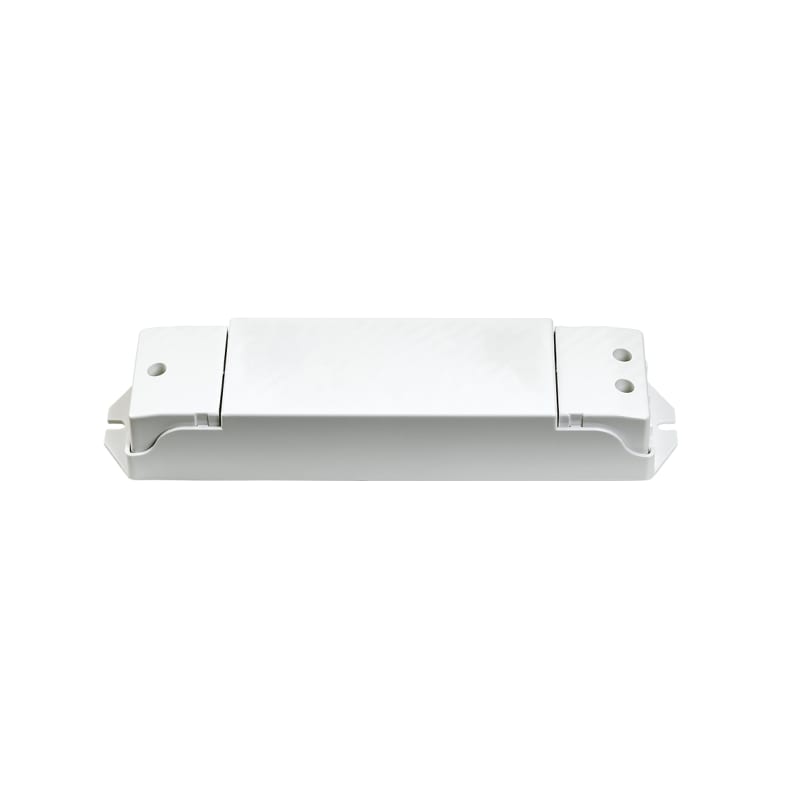

Controller RF RGB (391454)

SG Armaturen 391454 CONTROLLER RF RGB.

Manufacturer part number (MPN)

391454

EAN / GTIN

7021983914545

Sales unit

pcs

Package quantity

100 pcs

IP Class

IP20

Mounting

Indoor

Function

Includes controllers and strain reliefs. Must be combined with a 24V driver and LED strip. Can be controlled with an RF remote control or wired push button switch.

System wattage

150W

Voltage

24V

Type

Remote Control RF / Push Dim

Luminaire class

Class III

Housing

Plastic

Length (mm) L

175

Width (mm) W

45

Height (mm) H

27

Weight (kg) gross/net

0.127 / 0.108

Packaging dimensions (mm)

178 x 50 x 38

Nominal voltage

24 V

Method of operation

Radio frequency (RF)

Colour

White

Rated current

6 A

Power consumption

150 W

Light value memory

Yes

Substation input

Yes

RAL-number (similar)

9003

Applicable with movement sensor

No

Applicable with transmission button

No

Applicable with infrared button

No

Applicable with presence indicator

No

Applicable with button

No

Applicable with time switch/timer

Yes

Transparent

No

Device width

45 mm

Device height

175 mm

Device depth

27 mm

IFTTT support available

No

Dimming 1-10 V

No

Dimming DALI

No

Dimming manufacturer's proprietary system

No

Dimming Touch and Dim

Yes

Dimming with push-button

No

Dimming DSI

No

Min. depth of built-in installation box

45 mm

Operation by Bluetooth

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

Metallic colour

No

Compatible with Casambi

No

Country of origin

China

HS Code

9405.99

• EAN 7021983914545
• SAP 1200599793
• Code 82994611
