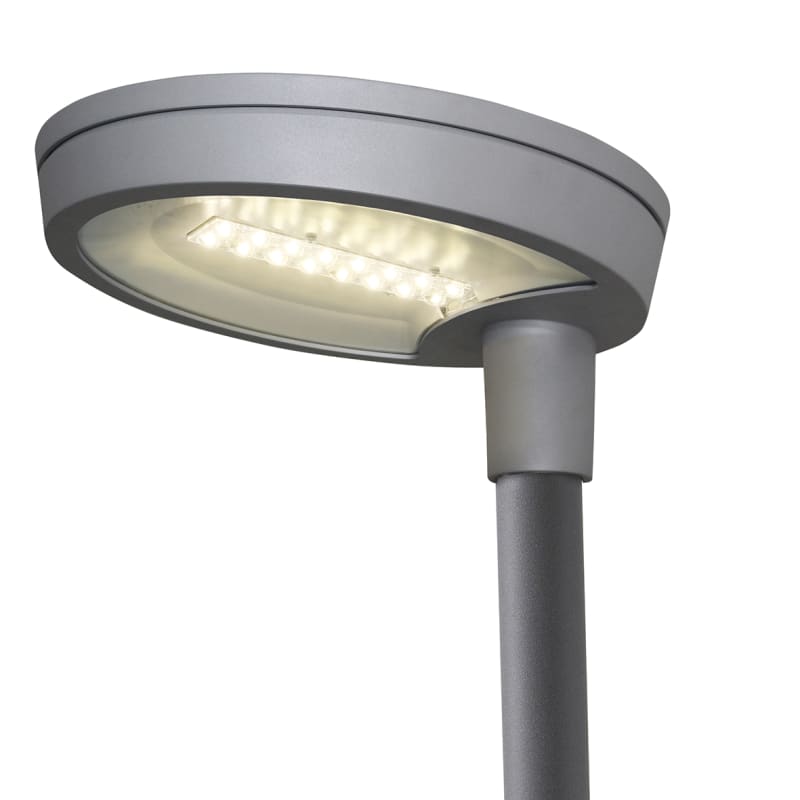

Circled Multi GREY TOP 27W/740

SG Armaturen 8246084552 CircLED Multi 27W 4000K grey.

Manufacturer part number (MPN)

8246084552

EAN / GTIN

5703821165907

Sales unit

pcs

Package quantity

8 pcs

Power

27 W

Efficacy

136 lm/W

Lumen

3120lm

IP Class

IP66

Colour temperature

4000K

Colour rendering (Ra)

Ra>70

Lifetime

100,000 L80/B10>

Mounting

Post - top (Ø60mm), Outdoor

System wattage

23W

Voltage

220-240V

Max. luminaires per circuit breaker

B10: 32, B16: 50, C10: 52, C16: 85

Type of light source

LED

Luminous flux

3120lm

MacAdams factor

SDCM: 3

Light distribution

Multi Lens

Optic

Lens

ULOR (<1%)

Yes / Yes, up to 17° tilt angle

Type

On/Off

Luminaire class

Class II

IK Class

IK09

Surge protection

Integrated (min. 4 kV)

Contains light source of energy class

C

Breeam

Fulfils Hea 01 for flicker free lighting

Housing

Die-cast aluminium

Colour

Grey (structure 2150 sablé)

Optics

Tempered glass

Module

Top

Cable

Cable 2x1mm² 6m

Wind projected area

0,0415m² - Max 6,2 kg

Length (mm) L

460

Width (mm) W

390

Height (mm) H

185

Weight (kg) gross/net

8.2 / 8

Packaging dimensions (mm)

525 x 395 x 210

Mounting method

Post top

Protection class according to IEC 61140

II

Width

390 mm

Conductor cross section

1 mm²

Housing colour

Grey

Dimmable

No

Voltage type

AC

With movement sensor

No

Max. lamp power

27 W

Suitable for lamp power

23 W

Type of control gear

LED operating device current-controlled

Colour rendering index CRI

70-79

Cable length

6 m

With light sensor

No

Number of poles

2

Length

460 mm

Height/depth

185 mm

Housing material

Aluminium

Lamp type

LED not exchangeable

With presence detector

No

Material cover

Glass transparent

Impact strength

IK09

With connection cable

Yes

Nominal voltage

220–240 V

Degree of protection (IP)

IP66

With light source

Yes

Built-in battery

No

Suitable for number of light sources

1

With control gear

Yes

Adjustable optics

No

Suitable for spigot size

60 mm

Max. system power

23 W

Rated luminous flux according to IEC 62722-2-1

3120 lm

Colour of light

White

With radio control

Yes

With light regulation program control

Yes

Constant light output (CLO)

Yes

IFTTT support available

No

Type of wiring

Ending

Rated life time L80/B10 at 25 °C

100000 h

Colour consistency (McAdam ellipse)

SDCM3

Rated ambient temperature according to IEC 62722-2-1

25 °C

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DALI

No

Dimming DMX

No

Dimming potentiometer (integrated)

No

Dimming GPRS

No

Dimming LineSwitch

No

Dimming manufacturer's proprietary system

No

Dimming mains voltage modulation

No

Dimming phase cut-off (trailing edge)

No

Dimming phase cut-on (leading edge)

No

Dimming programmable

No

Dimming RF

No

Dimming Its Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

No dim function

Yes

Luminaire efficacy

136 lm/W

Dimming DSI

No

Energy efficiency class of the built-in lamp

A++, A+, A (LED)

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

A++

Operation by Bluetooth

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

Dimming DALI-2

No

Exchangeable control gear

No

Dimming D4i

No

Solar powered

No

With integrated PV panel

No

Suitable for off-grid power system

No

Zhaga-D4i certified

No

Country of origin

Denmark

HS Code

9405.11

• EAN 5703821165907
• SAP 1200056067
• Code 81904647
