SG Armaturen

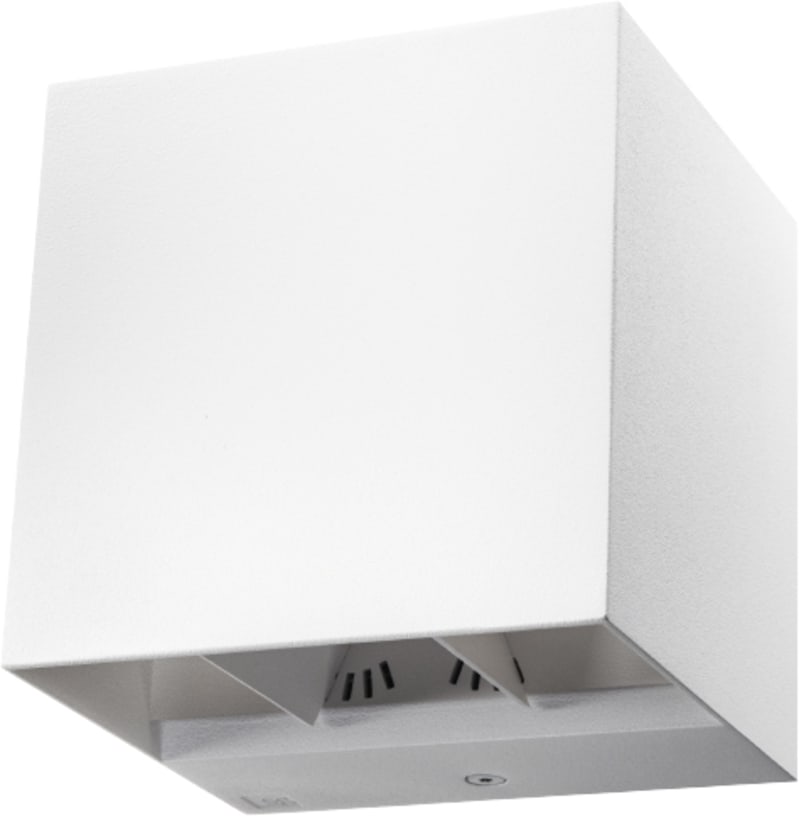

Artes White 8W/840 IP65 IK10
Part number641702EAN / GTIN7021986417029HS code9405.11
Lighting & Electrical Accessories
Outdoor Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 641702 L80/B20>60 000 hours, 500lm, 63 lm/W, SDCM3, phase dimming.
Technical Specifications
- Manufacturer part number (MPN)
- 641702
- EAN / GTIN
- 7021986417029
- Sales unit
- pcs
- Package quantity
- 20 pcs
- IP rating
- IP65
- Power
- 8 W
- Efficacy
- 63 lm/W
- Lumen
- 500lm
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 60,000 L80/B20>
- Mounting
- Surface, Indoor / Outdoor
- System wattage
- 8W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 90, B16: 150, C10: 90, C16: 150
- Type of light source
- LED
- Luminous flux
- 500lm
- MacAdams factor
- SDCM: 3
- Optic
- Lens
- Visible flicker (PstLM)
- 0.07
- Stroboscopic flicker (SVM)
- 0.32
- Photobiological safety
- RG 1
- ULOR (<1%)
- Yes, for direct only
- Type
- Trailing edge
- Luminaire class
- Class II
- IK Class
- IK10
- Contains light source of energy class
- E
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Sunda Hus
- C+
- Housing
- Aluminium
- Colour
- White (RAL 9003)
- Optics
- UV-stabilized polycarbonate
- Connection
- Screwless terminal block
- Length (mm) L
- 120
- Width (mm) W
- 110
- Height (mm) H
- 120
- Weight (kg) gross/net
- 0.98 / 0.795
- Packaging dimensions (mm)
- 125 x 125 x 130
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986417029
- SAP 1200380729
- Code 82393611
Product Documentation
Document preview: Artes White 8W/840 IP65 IK10 (641702) — Specification sheet
