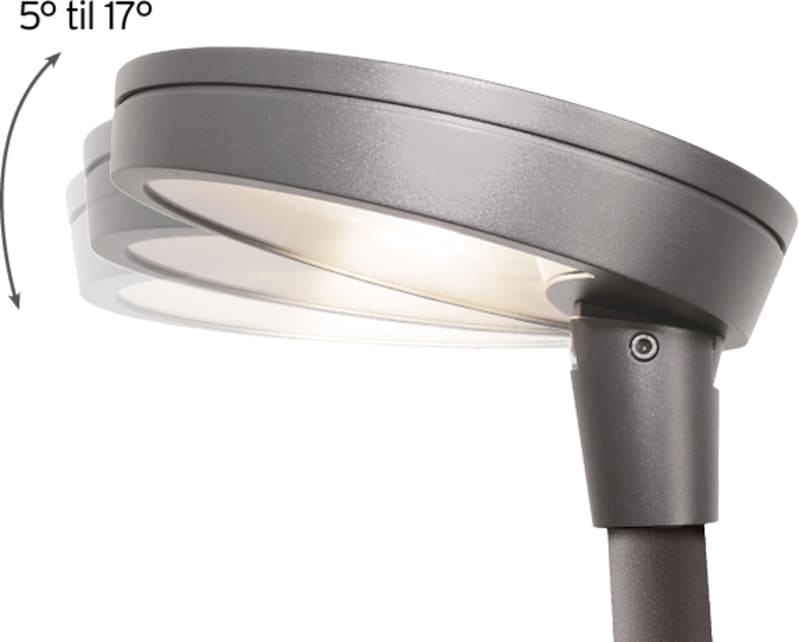

Circled Multi 27W/740 GREY

SG Armaturen 8246086398 CircLED Multi 27W 4000K grey adjustable.

Manufacturer part number (MPN)

8246086398

EAN / GTIN

5703821166249

Sales unit

pcs

Power

27 W

Efficacy

136 lm/W

Lumen

3120lm

IP Class

IP66

Colour temperature

4000K

Colour rendering (Ra)

Ra>70

Lifetime

100,000 L80/B10>

Mounting

Post - adjustable head 5-17°, Outdoor

System wattage

23W

Voltage

220-240V

Max. luminaires per circuit breaker

B10: 32, B16: 50, C10: 52, C16: 85

Type of light source

LED

Luminous flux

3120lm

MacAdams factor

SDCM: 3

Light distribution

Multi Lens

Optic

Lens

ULOR (<1%)

Yes / Yes, up to 17° tilt angle

Type

On/Off

Luminaire class

Class II

IK Class

IK09

Surge protection

Integrated (min. 4 kV)

Contains light source of energy class

C

Breeam

Fulfils Hea 01 for flicker free lighting

Housing

Die-cast aluminium

Colour

Grey (structure 2150 sablé)

Optics

Tempered glass

Module

Top Adjustable 5-17°

Cable

Cable 2x1mm² 6m

Wind projected area

0,0415m² - Max 6,2 kg

Length (mm) L

460

Width (mm) W

390

Height (mm) H

185

Weight (kg) gross/net

8.2 / 8

Packaging dimensions (mm)

525 x 395 x 210

Mounting method

Post top

Protection class according to IEC 61140

II

Width

390 mm

Conductor cross section

1 mm²

Housing colour

Grey

Dimmable

No

Surface protection

Powder coating

Voltage type

AC

Suitable for lamp power

23 W

Type of control gear

LED operating device current-controlled

Colour rendering index CRI

70-79

Cable length

6 m

Diameter

390 mm

With light sensor

No

Number of poles

2

Length

460 mm

Height/depth

185 mm

Housing material

Aluminium

Material

Aluminium

Lamp type

LED not exchangeable

Material cover

Glass transparent

Impact strength

IK09

With connection cable

Yes

Nominal voltage

230 V

Degree of protection (IP)

IP66

With light source

Yes

Built-in battery

No

Suitable for number of light sources

1

With control gear

Yes

Adjustable optics

No

Suitable for spigot size

60 mm

Max. system power

23 W

Rated luminous flux according to IEC 62722-2-1

3120 lm

Colour of light

White

Remote control

None

With radio control

Yes

With light regulation program control

Yes

Constant light output (CLO)

Yes

Type of wiring

Ending

Rated life time L80/B10 at 25 °C

100000 h

Colour consistency (McAdam ellipse)

SDCM3

Rated ambient temperature according to IEC 62722-2-1

25 °C

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DALI

No

Dimming DMX

No

Dimming LineSwitch

No

Dimming manufacturer's proprietary system

No

Dimming mains voltage modulation

No

Dimming phase cut-off (trailing edge)

No

Dimming phase cut-on (leading edge)

No

Dimming programmable

No

Dimming RF

No

Dimming Its Wave Reduction

No

Dimming Zigbee

No

No dim function

Yes

Luminaire efficacy

136 lm/W

Dimming DSI

No

Energy efficiency class of the built-in lamp

A++, A+, A (LED)

Highest energy efficiency class of the exchangeable lamp

A+

Lowest energy efficiency class of the exchangeable lamp

A

Nominal operation time

10–12

Operation by Bluetooth

No

Dimming DALI-2

No

Exchangeable control gear

No

Dimming D4i

No

Solar powered

No

With integrated PV panel

No

Suitable for off-grid power system

No

Device emplacement

Outdoor positioning

Power factor

100

Country of origin

Denmark

HS Code

9405.11

• EAN 5703821166249
• SAP 1200056107
• Code 81904640
