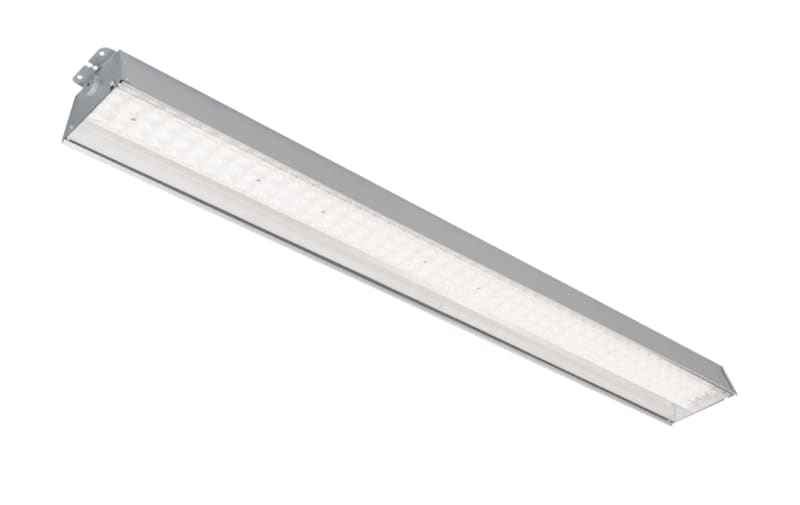

Arena ECO 1200 76W/840 WIDE DALI

SG Armaturen 607018 ARENA ECO 1200 WIDE 11000lm 4000K DALI, 76W, Ra>80, SDCM:3, Class In, IP23, 100.000, L80/B20>.

Manufacturer part number (MPN)

607018 EAN / GTIN: 7021986070187 Sales unit: pcs Package quantity: 4 pcs Power: 76 W Efficacy: 144 lm/W Lumen: 10960lm Wattage: 76W IP Class: IP23 Colour temperature: 4000K Colour rendering (Ra): Ra>80 Lifetime: 100,000 L80/B20> Mounting: Surface, Indoor System wattage: 76W Voltage: 220-240V Max. luminaires per circuit breaker: B10: 9, B16: 15, C10: 16, C16: 25 Leakage current (mA): 0.22 Light source included: Yes Luminous flux: 10960lm Programmable with CLO: Yes (affects lumen output) MacAdams factor: SDCM: 3 minimum ambient temperature: -25°C Light distribution: Direct Beam angle: 90° UGR: UGR<25 Photobiological safety: RG 1 Type: DALI-2 Luminaire class: Class I IK Class: IK10 Contains light source of energy class: C Breeam: Fulfils Hea 01 for flicker free lighting Housing: Steel Optics: Acrylic (PMMA) Module: 1200 Connection: 7-pole screwless terminal block with 5x2,5mm² (+DALI) through wiring Length (mm) L: 1184 Width (mm) W: 134 Height (mm) H: 72 Weight (kg) gross/net: 3.7 / 3.2 Packaging dimensions (mm): 1192 x 76 x 143 Country of origin: China

HS Code

9405.11

• EAN 7021986070187
• SAP 1200685153
• Code 83342503
