SG Armaturen

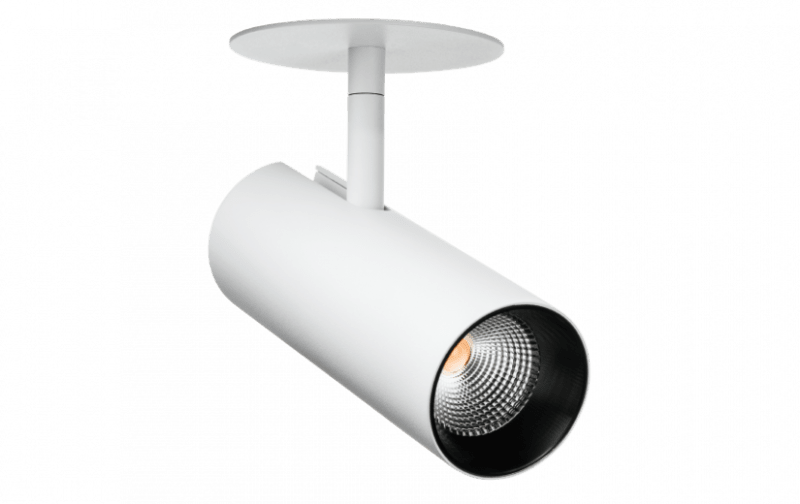

TUBE MINI R White 14W/927 40°
Part number320696EAN / GTIN7021983206961HS code9405.11
Lighting & Electrical Accessories
Track Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 320696 TUBE MINI R white 2700K 14W 880lm, RA 98, L90/B10 100,000, CLASS II, IP20, SDCM 2.
Technical Specifications
- Manufacturer part number (MPN)
- 320696
- EAN / GTIN
- 7021983206961
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Power
- 14 W
- Efficacy
- 63 lm/W
- Lumen
- 880lm
- IP Class
- IP20
- Colour temperature
- 2700K
- Colour rendering (Ra)
- Ra 98
- Lifetime
- 100,000 L90/B10>
- Mounting
- Recessed, Indoor
- System wattage
- 14W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 19, B16: 30, C10: 31, C16: 51
- Type of light source
- LED
- Luminous flux
- 880lm
- MacAdams factor
- SDCM: 2
- Light distribution
- Direct
- Optic
- Reflector
- Beam angle
- 40°
- UGR
- UGR<19
- Type
- Trailing edge
- Luminaire class
- Class II
- Contains light source of energy class
- F
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- White (RAL 9003)
- Optics
- UV-stabilized polycarbonate
- Length (mm) L
- 59
- Width (mm) W
- 59
- Height (mm) H
- 160
- Cut-out (mm)
- 83
- Distance to flammable materials
- 50mm
- Weight (kg) gross/net
- 0.74 / 0.632
- Packaging dimensions (mm)
- 230 x 105 x 105
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021983206961
- SAP 1200536214
- Code 82703584
Product Documentation
Document preview: TUBE MINI R White 14W/927 40° (320696) — Specification sheet
More from SG Armaturen
SG Armaturen
Stripline Profile Surface-Mounted Corner Piece, White
391460
SG Armaturen
CUBE LUX Black 7W/927
902545
SG Armaturen
FARM66 1500 43W/840 IP66 IK08 DALI
120012
SG Armaturen
Stripline 230V OUT 20M 9W/927 1,5M CABLE
391482
SG Armaturen

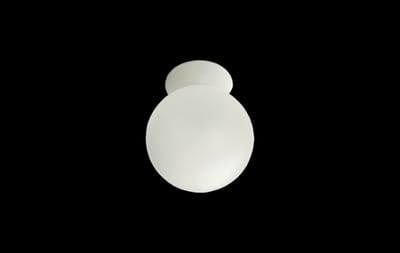

Rondo White 10W E27 (100143)
SG Armaturen

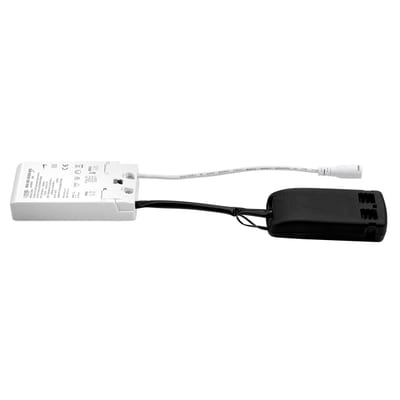

Sense Driver 900MA/4000LM Faseav Linect
820493
SG Armaturen

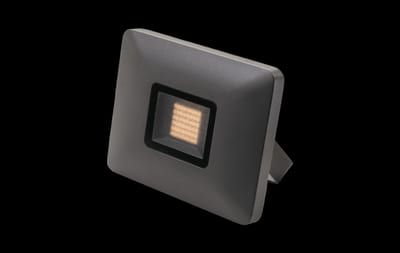

FLOM MIDI 23W/830 IP65
630020
SG Armaturen

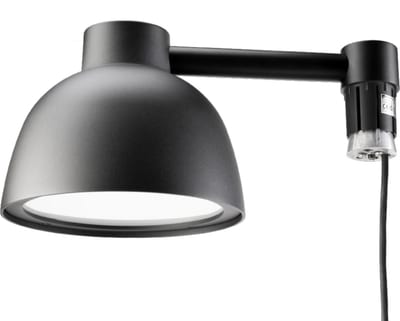

Herning MIDI Pole Head Ø60 Black CCT
