SG Armaturen

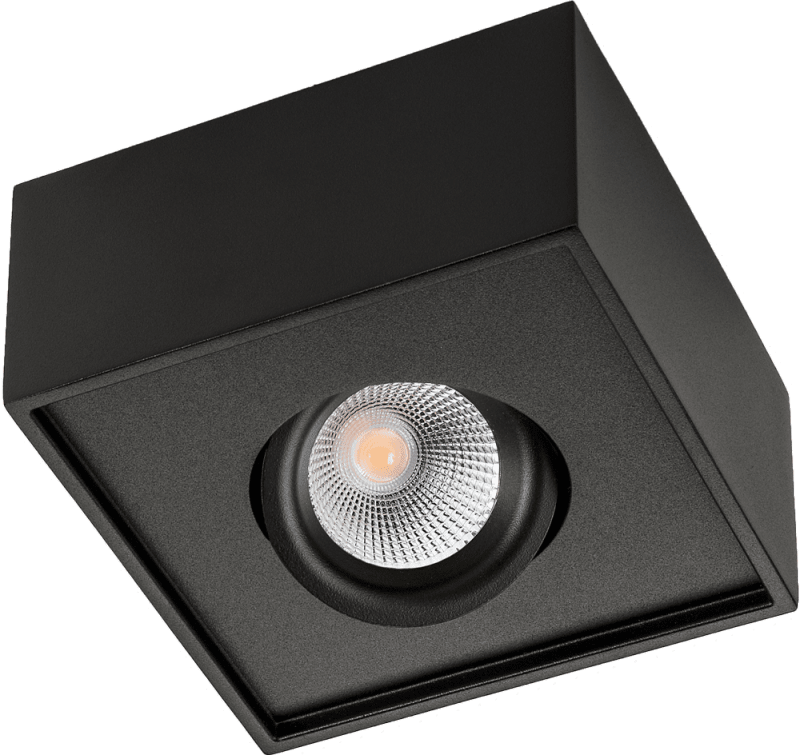

CUBE LUX Black 7W/927
Part number902545EAN / GTIN7021989025450HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 902545 CUBE LUX BLACK 2700, 7W, 540lm, RA98, SDCM 1, L90/B10, Class II, IP21, A++.
Technical Specifications
- Manufacturer part number (MPN)
- 902545
- EAN / GTIN
- 7021989025450
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Power
- 7 W
- Replaces
- 906203, 914390
- Efficacy
- 73 lm/W
- Lumen
- 580lm
- Wattage
- 7W
- IP Class
- IP21
- Colour temperature
- 2700K
- Colour rendering (Ra)
- Ra 98
- Lifetime
- 100,000 L90/B10>
- Mounting
- Indoor / Outdoor
- System wattage
- 8W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 105, B16: 168, C10: 105, C16: 168
- Type of light source
- LED
- Luminous flux
- 580lm
- MacAdams factor
- SDCM: 1
- Light distribution
- Direct
- Optic
- Reflector
- Beam angle
- 42°
- UGR
- UGR<22
- Type
- Trailing edge
- Luminaire class
- Class I
- Contains light source of energy class
- E
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Black (RAL 9004)
- Optics
- Tempered glass
- Connection
- Screwless terminal block
- Length (mm) L
- 132
- Width (mm) W
- 132
- Height (mm) H
- 65
- Weight (kg) gross/net
- 0.87 / 0.79
- Packaging dimensions (mm)
- 140 x 140 x 75
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021989025450
- SAP 1200286247
- Code 82250826
Product Documentation
Document preview: CUBE LUX Black 7W/927 (902545) — Specification sheet
