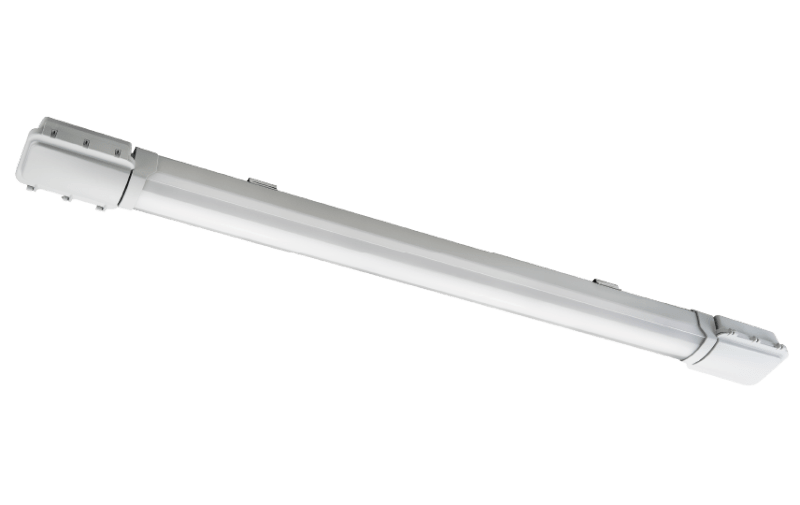

FARM66 1500 43W/840 IP66 IK08 DALI

SG Armaturen 120012 Farm 66 1500 4000K DALI 43W, 5860lm, Class In, IP66, IK08, RA80, L90/B50.

Manufacturer part number (MPN)

120012 EAN / GTIN: 7021981200121 Sales unit: pcs IP rating: IP66 Power: 43 W Efficacy: 136 lm/W Lumen: 5860lm Colour temperature: 4000K Colour rendering (Ra): Ra>80 Lifetime: 50,000 L90/B50> Mounting: Surface, Indoor System wattage: 43W Voltage: 220-240V Frequency (Hz): 50/60Hz Max. luminaires per circuit breaker: B10: 15, B16: 24, C10: 25, C16: 40 Leakage current (mA): 0.32 Type of light source: LED Luminous flux: 5860lm Programmable with CLO: Yes (affects lumen output) MacAdams factor: SDCM: 3 minimum ambient temperature: -25°C Light distribution: Direct Optic: Opal UGR: UGR<28 Type: DALI-2 / Push Dim Luminaire class: Class I IK Class: IK08 Fire protection class: 850°C - 30s Contains light source of energy class: C Breeam: Fulfils Hea 01 for flicker free lighting Food Safety approved (IFS and HACCP): Yes Housing: PC with ammonia-protection coating, end caps in ASA Colour: Grey Optics: Polycarbonat (PC) Module: 1500 Connection: 7-pole screwless terminal block with 5x2,5mm² (+DALI) through wiring Length (mm) L: 1460 Width (mm) W: 112 Height (mm) H: 67 Weight (kg) gross/net: 2.236 / 1.885 Packaging dimensions (mm): 1466 x 114 x 71 Country of origin: Spain

HS Code

9405.11

• EAN 7021981200121
• SAP 1200543112
• Code 82824332
