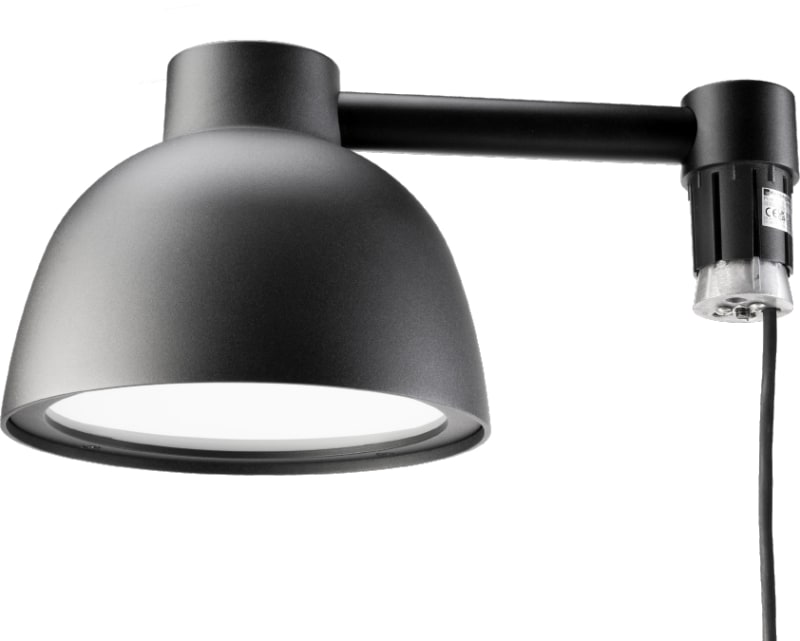

Herning MIDI Pole Head Ø60 Black CCT
Part number623979EAN / GTIN7021986239799HS code9405.42
Lighting & Electrical Accessories
Outdoor & Street Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 623979 HERNING MIDI POLE HEAD Ø60 BLACK 3000/4000K.
Technical Specifications
- Manufacturer part number (MPN)
- 623979
- EAN / GTIN
- 7021986239799
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Diameter
- 60 mm
- Efficacy
- 82/88/71/77lm/W
- Lumen
- 1060/1140/1770/1920lm
- Wattage
- 13W/25W
- IP Class
- IP65
- Colour temperature
- 3000/4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L80/B20>
- Mounting
- Pole, wall, bollard or earthing rod, Outdoor
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 23, B16: 36, C10: 37, C16: 60
- Type of light source
- LED
- Luminous flux
- 1060/1140/1770/1920lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Glass
- UGR
- UGR<25
- Photobiological safety
- RG 1
- ULOR (<1%)
- Yes
- Type
- Trailing edge
- Luminaire class
- Class II
- IK Class
- IK06
- Contains light source of energy class
- E
- Housing
- Aluminium
- Module
- Ø60
- Cable
- Cable 2x1mm² 3m
- Length (mm) L
- 400
- Width (mm) W
- 240
- Height (mm) H
- 189
- Weight (kg) gross/net
- 3.64 / 2.915
- Packaging dimensions (mm)
- 412 x 250 x 240
- Protection class according to IEC 61140
- II
- Width
- 240 mm
- Conductor cross section
- 2.5 mm²
- Housing colour
- Black
- Dimmable
- Yes
- Surface protection
- Powder coating
- Voltage type
- AC
- Type of control gear
- LED operating device current-controlled
- Colour rendering index CRI
- 80-89
- Cable length
- 3 m
- With light sensor
- No
- Number of poles
- 2
- Length
- 250 mm
- Height/depth
- 189 mm
- Housing material
- Aluminium
- Lamp type
- LED not exchangeable
- Material cover
- Glass opal
- Impact strength
- IK06
- Degree of protection (IP)
- IP65
- Built-in battery
- No
- Suitable for number of light sources
- 1
- Max. system power
- 25 W
- Rated luminous flux according to IEC 62722-2-1
- 1920 lm
- Colour of light
- White
- Remote control
- None
- Type of wiring
- Ending
- Colour consistency (McAdam ellipse)
- SDCM3
- Luminaire efficacy
- 77 lm/W
- Operation by Bluetooth
- No
- Dimming DALI-2
- No
- Dimming D4i
- No
- Solar powered
- No
- With integrated PV panel
- No
- Suitable for off-grid power system
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.42
Cross References
- EAN 7021986239799
- SAP 1200785596
- Code 83948766
Product Documentation
Document preview: Herning MIDI Pole Head Ø60 Black CCT (623979) — Specification sheet
