SG Armaturen

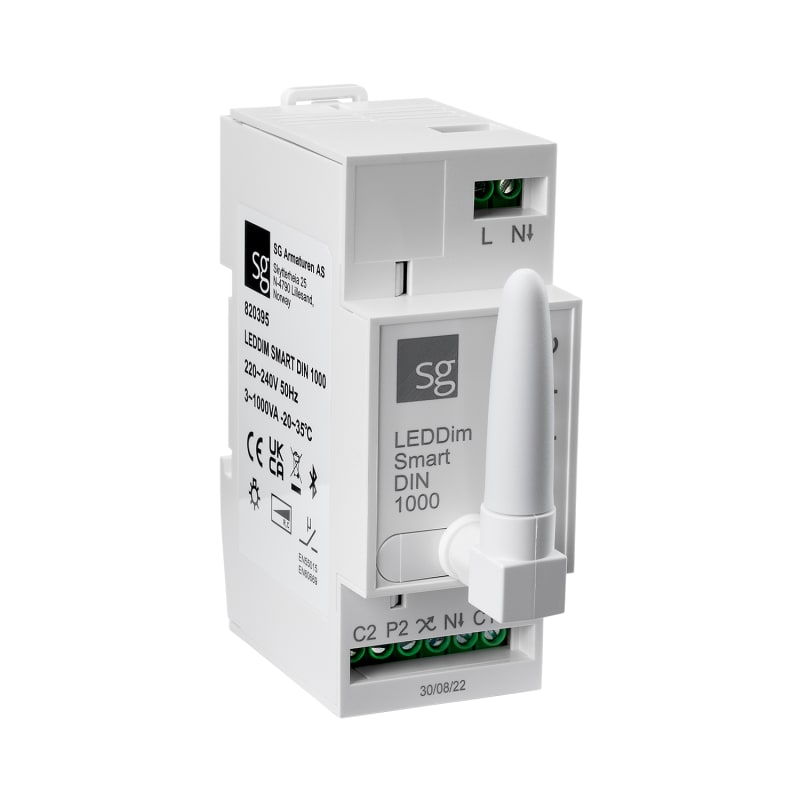

Jointim Smart White DIN 1000
Part number820395EAN / GTIN7021988203958HS code8538.90
Electrical Components
Switches & Dimmers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 820395 LEDDIM DIN 1000.
Technical Specifications
- Manufacturer part number (MPN)
- 820395
- EAN / GTIN
- 7021988203958
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Product segment
- Smart home
- Mounting method
- Module frame
- Assembly arrangement
- Basic element
- Colour
- White
- Halogen free
- Yes
- Number of units
- 1
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- Power consumption
- 1 W
- Frequency
- 50 Hz
- Material quality
- Thermoplastic
- Type of load
- Universal and LED Retrofit
- Material
- Plastic
- Type of fastening
- Click in mounting
- Light value memory
- Yes
- Substation input
- Yes
- RAL-number (similar)
- 9003
- Serial dimmer
- Yes
- Applicable with movement sensor
- Yes
- Applicable with transmission button
- Yes
- Applicable with infrared button
- No
- Applicable with presence indicator
- No
- Applicable with button
- Yes
- Applicable with time switch/timer
- Yes
- Impact strength
- IK00
- Nominal power
- 0–800 VA
- Nominal voltage
- 220–240 V
- Control voltage
- 24–240 V
- Transparent
- No
- Surface finishing
- Matt
- Suitable for degree of protection (IP)
- IP20
- Core cross section
- 0.5–4 mm²
- Device width
- 36 mm
- Device height
- 90 mm
- Device depth
- 85 mm
- Number of modules (module system)
- 2
- IFTTT support available
- No
- Dimming phase cut-off (trailing edge)
- Yes
- Dimming phase cut-on (leading edge)
- No
- Min. depth of built-in installation box
- 0 mm
- App control via Bluetooth
- Yes
- Nominal power resistive load
- 1000 W
- Nominal power capacitive load
- 1000 VA
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Max. switching power LED
- 800 W
- Min. brightness controllable
- Yes
- Device emplacement
- Indoor positioning
- Country of origin
- China
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 7021988203958
- SAP 1200549262
- Code 82882584
Product Documentation
Document preview: Jointim Smart White DIN 1000 (820395) — Specification sheet
