SG Armaturen

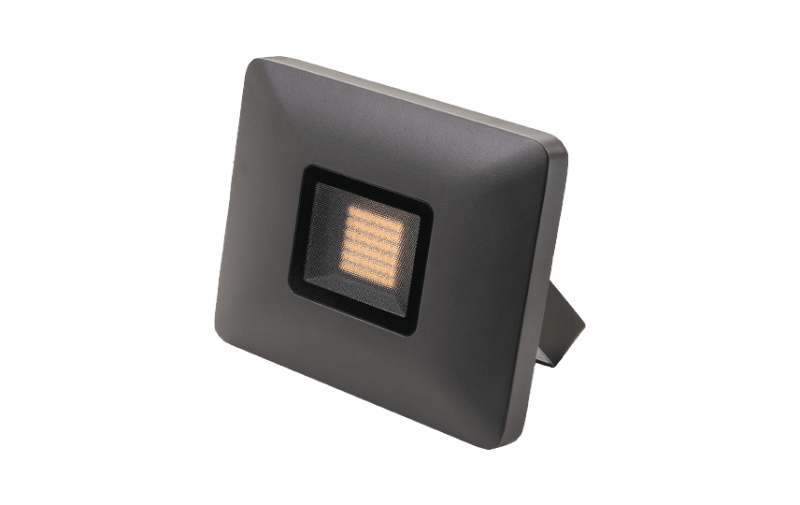

FLOM MIDI 23W/830 IP65
Part number630020EAN / GTIN7021986300208HS code9405.42
Lighting & Electrical Accessories
Floodlights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 630020 FLOM MIDI 3000K.
Technical Specifications
- Manufacturer part number (MPN)
- 630020 EAN / GTIN: 7021986300208 Sales unit: pcs Package quantity: 10 pcs IP rating: IP65 Power: 23 W Efficacy: 113 lm/W Lumen: 2610lm Colour temperature: 3000K Colour rendering (Ra): Ra>80 Lifetime: 50,000 L80/B50> Mounting: Surface, Outdoor System wattage: 23W Voltage: 220-240V Max. luminaires per circuit breaker: B10: 30, B16: 18, C10: 33, C16: 20 Type of light source: LED Luminous flux: 2610lm MacAdams factor: SDCM: 3 minimum ambient temperature: -25°C Light distribution: Direct Optic: Glass Frosted Beam angle: 100° UGR: UGR>28 Visible flicker (PstLM): 0.16 Stroboscopic flicker (SVM): 0.02 ULOR (<1%): Yes, up to 13° tilt angle Type: On/Off Luminaire class: Class I IK Class: IK06 Contains light source of energy class: C Breeam: Fulfils Hea 01 for flicker free lighting Housing: Aluminium Colour: Graphite Optics: Tempered glass Cable: Cable 1.5m Length (mm) L: 160 Width (mm) W: 130 Height (mm) H: 52 Weight (kg) gross/net: 1.067 / 0.97 Packaging dimensions (mm): 170 x 180 x 70 Country of origin: China
Standards & Compliance
- HS Code
- 9405.42
Cross References
- EAN 7021986300208
- SAP 1200374558
- Code 82387228
Product Documentation
Document preview: FLOM MIDI 23W/830 IP65 (630020) — Specification sheet
More from SG Armaturen
SG Armaturen
Herning MIDI Pole Head Ø60 Black CCT
623979
SG Armaturen
Stripline 10M 15W/840 2X5M Cable
391419
SG Armaturen
Frame 2X2 White (78060)
SG Armaturen

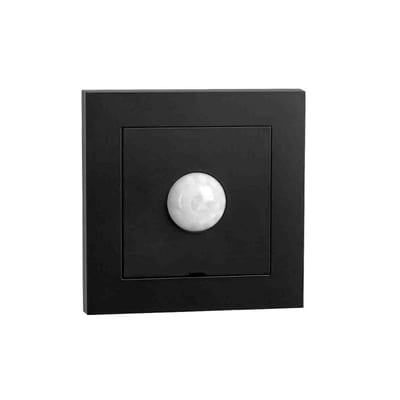

PIR WALL Black Front
820472
SG Armaturen

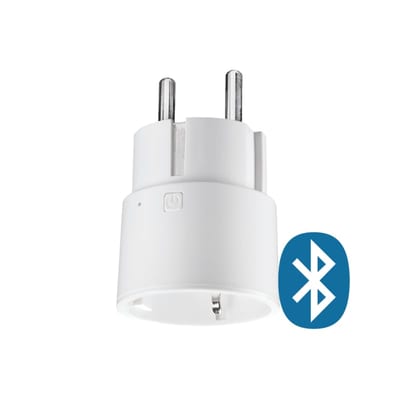

Smart PLUG White (820458)
SG Armaturen

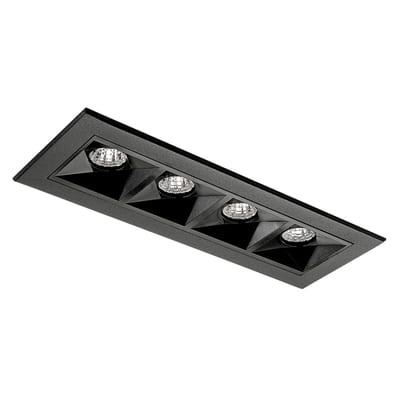

Inspire R 150 Black 8W/927
212421
SG Armaturen

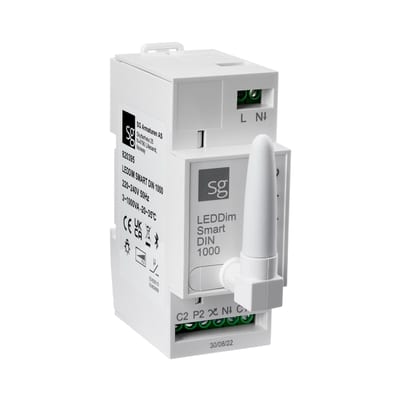

Jointim Smart White DIN 1000
820395
SG Armaturen

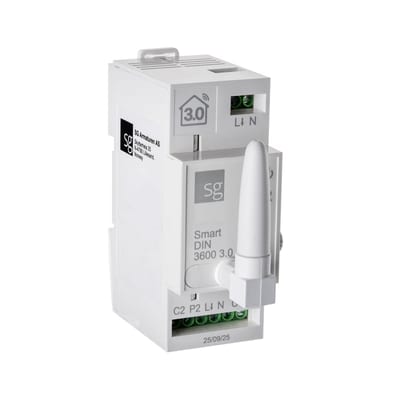

Smart DIN 3600 3.0 (820552)
