SG Armaturen

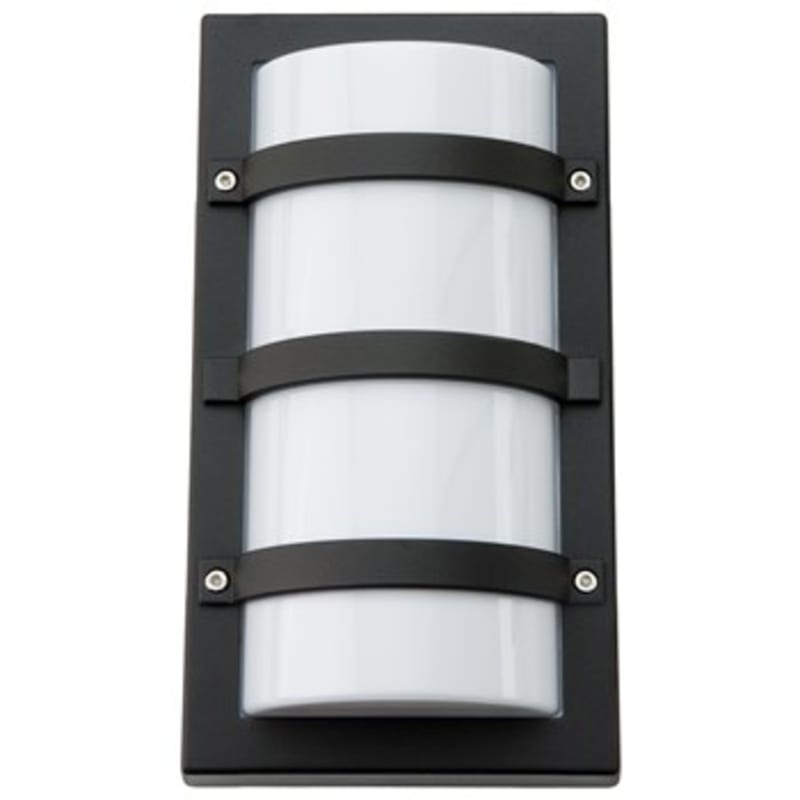

TRIO Black 10W IP65 (614524)
Part number614524EAN / GTIN7021986145243HS code8543.70
Lighting & Electrical Accessories
Outdoor Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 614524 TRIO BLACK 2x6W LED KL In. Vandalsikker IP65 wall luminaire for indoors/outdoor use.
Technical Specifications
- Manufacturer part number (MPN)
- 614524
- EAN / GTIN
- 7021986145243
- HS code
- 8543.70
- Sales unit
- pcs
- Package quantity
- 12 pcs
- IP rating
- IP65
- Power
- 10 W
- Efficacy
- 57 lm/W
- Lumen
- 400lm
- Colour temperature
- 2700K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L70/B10>
- Mounting
- Surface, Indoor / Outdoor
- System wattage
- 7W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 33, B16: 52, C10: 40, C16: 64
- Type of light source
- LED
- Luminous flux
- 400lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal
- Beam angle
- 130°
- Type
- Trailing edge
- Luminaire class
- Class I
- IK Class
- IK10
- Fire protection class
- 850°C - 30s
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Black (RAL 9004)
- Optics
- UV-stabilized polycarbonate
- Connection
- Screwless terminal block
- Width (mm) W
- 180
- Height (mm) H
- 320
- Depth (D)
- 102
- Weight (kg) gross/net
- 1.8 / 1.5
- Packaging dimensions (mm)
- 330 x 186 x 116
Standards & Compliance
- HS Code
- 8543.70
Cross References
- EAN 7021986145243
- SAP 1000098501
- Code 8897032
Product Documentation
Document preview: TRIO Black 10W IP65 (614524) — Specification sheet
More from SG Armaturen
SG Armaturen

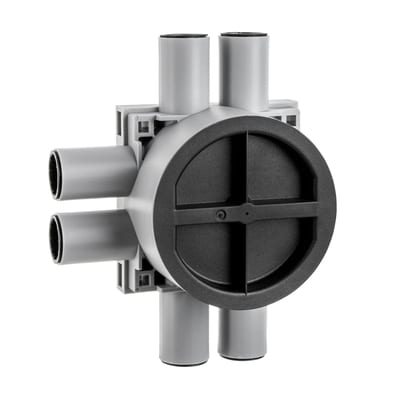

WALL BOX 45mm 6-Run (79912)
SG Armaturen

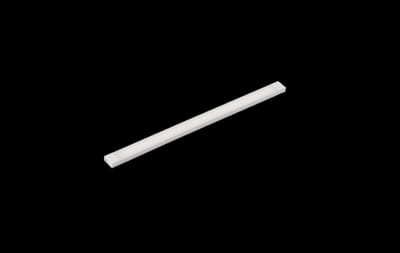

Slimline PRO 170mm 1,9W/927
391252
SG Armaturen

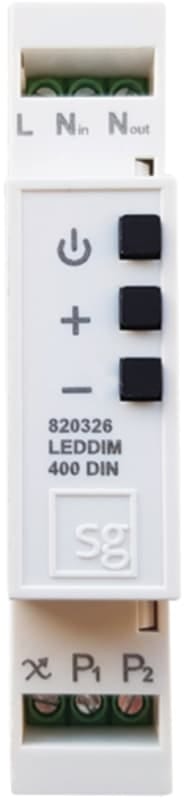

Jointim DIN 400VA 2-Pole
820326
SG Armaturen

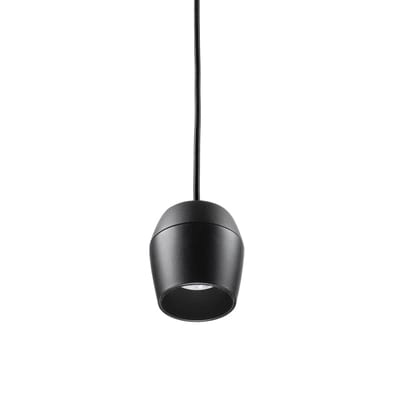

ZIP 1T Jelsa Pendant Black 6,5W/927
320888
SG Armaturen

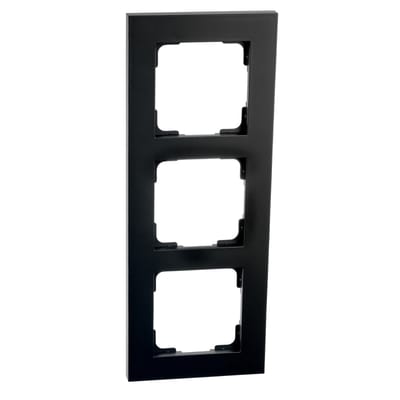

Frame 90mm 3X Black (78141)
SG Armaturen

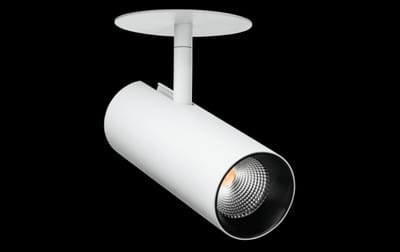

TUBE MINI R White 14W/927 40°
320696
SG Armaturen

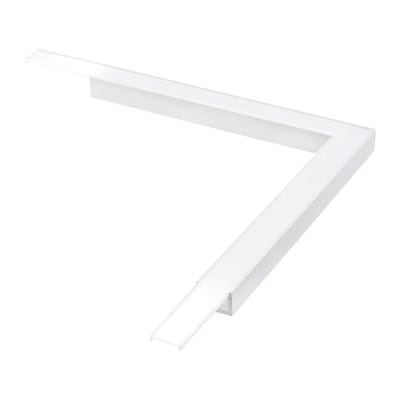

Stripline Profile Surface-Mounted Corner Piece, White
391460
SG Armaturen

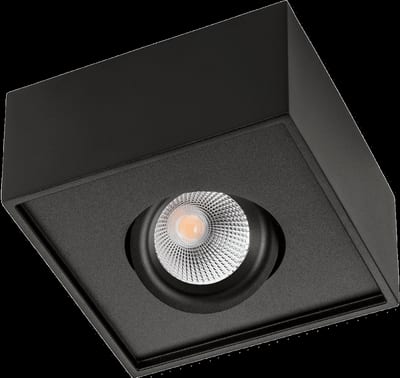

CUBE LUX Black 7W/927
