SG Armaturen
WALL BOX 45mm 6-Run (79912)
Part number79912EAN / GTIN7021987991214HS code8536.69
Electrical Components
Wiring Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

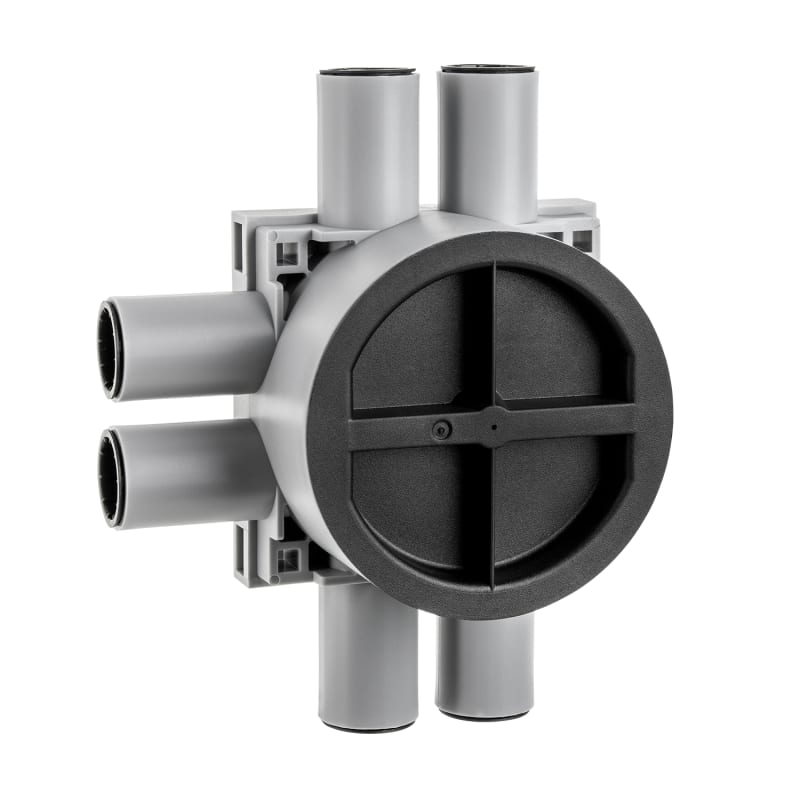

SG Armaturen 79912 Wall box 45MM 6-RUN.
Technical Specifications
- Manufacturer part number (MPN)
- 79912
- EAN / GTIN
- 7021987991214
- Sales unit
- pcs
- Package quantity
- 32 pcs
- Mounting
- Indoor
- Housing
- Polypropylene (PP)
- Halogen free
- Yes
- Module
- 45mm 6 way
- Length (mm) L
- 123
- Width (mm) W
- 97
- Height (mm) H
- 45
- Weight (kg) gross/net
- 0.088 / 0.068
- Packaging dimensions (mm)
- 123 x 97 x 45
- Number per pack
- 32
- With partition panel
- No
- Mounting method
- Flush-mounted
- Shape
- Round
- Construction type
- Built-in installation box (device box)
- Model
- Single
- Provided with revolving ring
- Yes
- Couplable
- No
- Equipped with
- None
- Length
- 123 mm
- Width
- 97 mm
- Depth
- 45 mm
- Inner depth
- 42 mm
- Suitable for wall/board thickness
- 24 mm
- For number of electric fittings
- 1
- Mounting switching equipment
- Screw or spread out
- With screws
- No
- Housing feed-through by break-out opening
- No
- Housing feed-through by seal membrane
- No
- Housing feed-through by nozzle
- Yes
- Housing feed-through by step membrane
- No
- For tube diameter
- 16/20 mm
- Pipe locking
- Yes
- Pipe locking optional
- No
- Inlet from the rear
- Yes
- Number of inlets
- 10
- Number of included spouts
- 6
- Material
- Plastic
- Surface protection
- Untreated
- Colour
- Grey
- Degree of protection (IP)
- IP3X
- Cover model
- Construction protective cover
- Transparent cover
- No
- Cover attachment
- Snapped on
- Sealable
- No
- Circuit integrity
- None
- With screening
- No
- Air tight
- No
- Clamp position fixed
- No
- Luminaire hook mounting
- No
- Nozzle
- Double nozzle
- Special application
- None
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 7021987991214
- SAP 1200786354
- Code 83948799
Product Documentation
Document preview: WALL BOX 45mm 6-Run (79912) — Specification sheet
