SG Armaturen

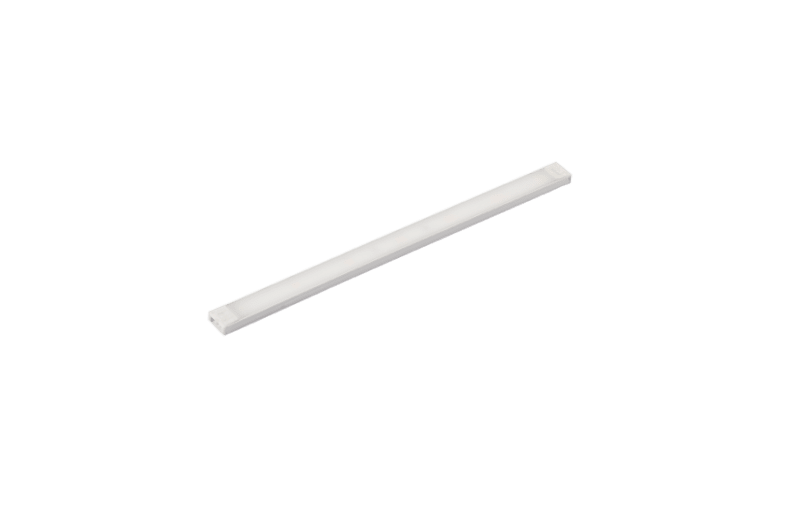

Slimline PRO 170mm 1,9W/927
Part number391252EAN / GTIN7021983912527HS code9405.11
Lighting & Electrical Accessories
LED Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 391252 L70/B50>50 000 hours, 290lm, 153 lm/W, SDCM3, IP20.
Technical Specifications
- Manufacturer part number (MPN)
- 391252
- EAN / GTIN
- 7021983912527
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Power
- 1.9 W
- Efficacy
- 163 lm/W
- Lumen
- 310lm
- IP Class
- IP20
- Colour temperature
- 2700K
- Colour rendering (Ra)
- Ra>90
- Lifetime
- 50,000 L70/B50>
- Mounting
- Surface, Indoor
- System wattage
- 1.9W
- Voltage
- 24V
- Type of light source
- LED
- Luminous flux
- 310lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal
- Beam angle
- 110°
- UGR
- UGR>28
- Photobiological safety
- RG 0
- Luminaire class
- Class III
- Energy efficency class
- F
- Housing
- Aluminium
- Colour
- White
- Optics
- Polycarbonat (PC)
- Module
- 170
- Length (mm) L
- 170
- Width (mm) W
- 17
- Height (mm) H
- 7
- Weight (kg) gross/net
- 0.04 / 0.026
- Packaging dimensions (mm)
- 240 x 21 x 11
- Luminaire efficacy
- 163 lm/W
- Model
- Strip
- Mounting method
- Surface mounting
- Lamp type
- LED not exchangeable
- Number of nodes per meter
- 141
- Number of nodes per foot
- 43
- Lamp power per meter
- 11.2 W
- Lamp power per foot
- 3.4 W
- Luminous flux per meter
- 1824 lm
- Voltage type
- DC
- Lamp voltage
- 24 V
- Type of control gear
- LED operating device voltage-controlled
- Suitable for dimmer
- Yes
- Exchangeable control gear
- No
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Highest energy efficiency class of the exchangeable lamp
- A++
- Lowest energy efficiency class of the exchangeable lamp
- A++
- Rated lifetime L70/B50 at 25 °C
- 50000 h
- Degree of protection (IP)
- IP20
- Protection class according to IEC 61140
- III
- Max. system power
- 1.9 W
- Colour of light
- White
- Constant light output (CLO)
- No
- Colour rendering index CRI
- 90-100
- Power factor
- 100
- Colour of light adjustable
- No
- Luminous flux adjustable
- No
- Beam angle adjustable
- No
- Width
- 17 mm
- Height/depth
- 7 mm
- Length
- 170 mm
- Length of particular segments
- 170 mm
- With end piece
- Yes
- With connection set
- No
- With protective cover
- No
- Self-adhesive
- Yes
- Type of wiring
- Ending
- Number of poles
- 2
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- IFTTT support available
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021983912527
- SAP 1200457299
- Code 82528459
Product Documentation
Document preview: Slimline PRO 170mm 1,9W/927 (391252) — Specification sheet
More from SG Armaturen
SG Armaturen
Jointim DIN 400VA 2-Pole
820326
SG Armaturen
ZIP 1T Jelsa Pendant Black 6,5W/927
320888
SG Armaturen
Frame 90mm 3X Black (78141)
SG Armaturen
TUBE MINI R White 14W/927 40°
320696
SG Armaturen
Stripline Profile Surface-Mounted Corner Piece, White
391460
SG Armaturen
CUBE LUX Black 7W/927
902545
SG Armaturen

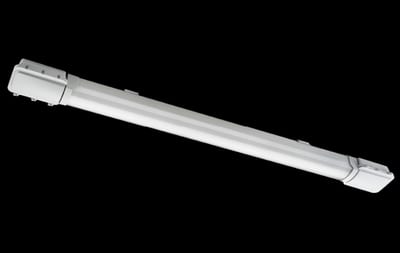

FARM66 1500 43W/840 IP66 IK08 DALI
120012
SG Armaturen

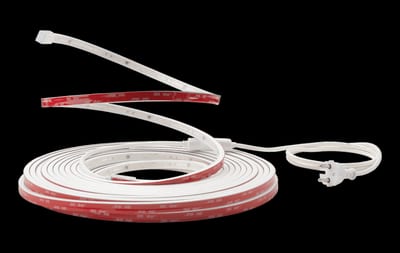

Stripline 230V OUT 20M 9W/927 1,5M CABLE
