SG Armaturen

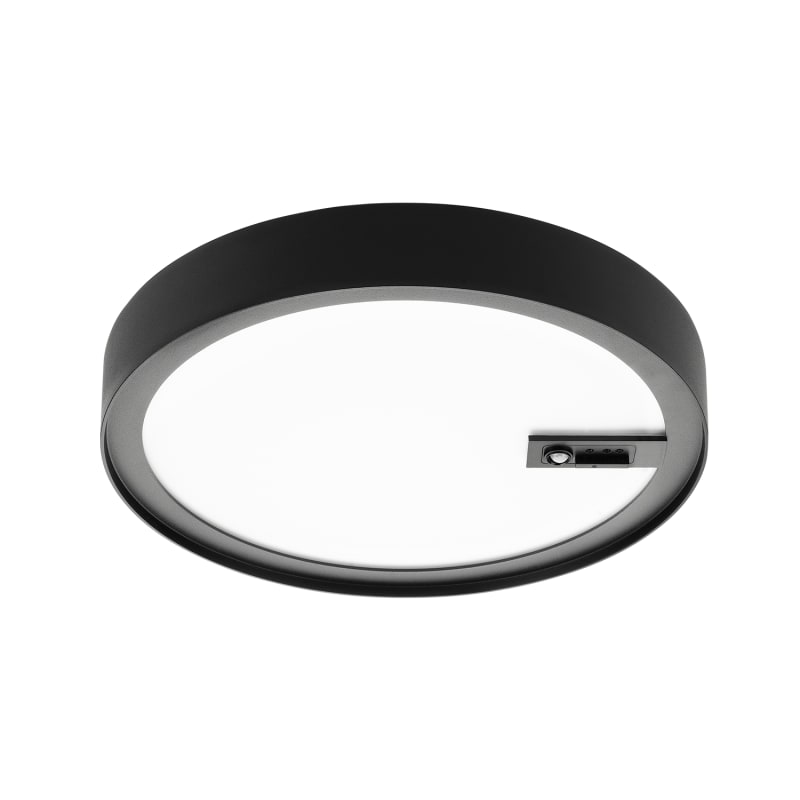

DISC 290 Connect Black 3000K
Part number606236EAN / GTIN7021986062366HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 606236 DISC 290 CONNECT BLACK 3000K, 17W, 1900lm, Ra>80 SDCM3, L80/B20>100,000, IK10, IP20.
Technical Specifications
- Manufacturer part number (MPN)
- 606236
- EAN / GTIN
- 7021986062366
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Colour temperature
- 3000 K
- Efficacy
- 112 lm/W
- Lumen
- 1900lm
- IP Class
- IP20
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Surface, Indoor
- System wattage
- 17W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 25, B16: 40, C10: 41, C16: 68
- Type of light source
- LED
- Light source included
- Yes
- Luminous flux
- 1900lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal prismatic
- Beam angle
- 85°
- UGR
- UGR<25
- Type
- Connect
- Luminaire class
- Class II
- Contains light source of energy class
- C
- Housing
- Aluminium
- Colour
- Black
- Optics
- Acrylic (PMMA)
- Module
- 290
- Connection
- Screwless terminal block
- Height (mm) H
- 55
- Diameter (mm) D
- 288
- Weight (kg) gross/net
- 2.005 / 1.846
- Packaging dimensions (mm)
- 308 x 303 x 60
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986062366
- SAP 1200888908
- Code 84131597
Product Documentation
Document preview: DISC 290 Connect Black 3000K (606236) — Specification sheet
More from SG Armaturen
SG Armaturen
Sense LINE 120X600 9W/840 Linect
212692
SG Armaturen

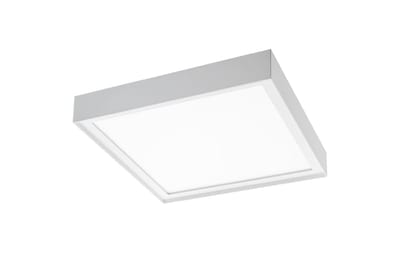

DISC 285X285 White 22W/827 DALI
606058
SG Armaturen

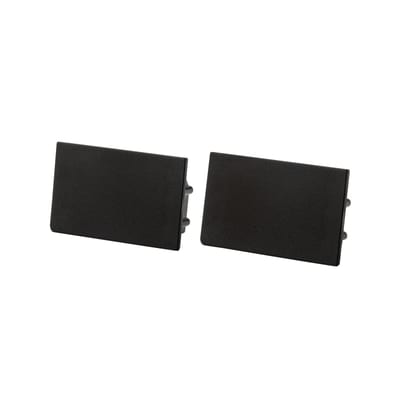

Stripline END CAP KIT Surface-Mounted (391503)
SG Armaturen

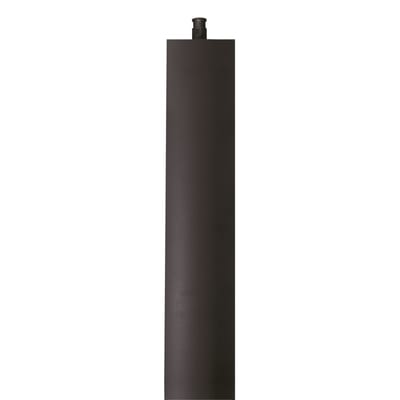

WAX Bollard Black (8249044308)
SG Armaturen

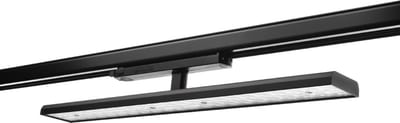

Arena 600 3T Black 26W/930 DALI
607045
SG Armaturen
Inspire 1200 White Prism 29W/830 PIR
212851
SG Armaturen

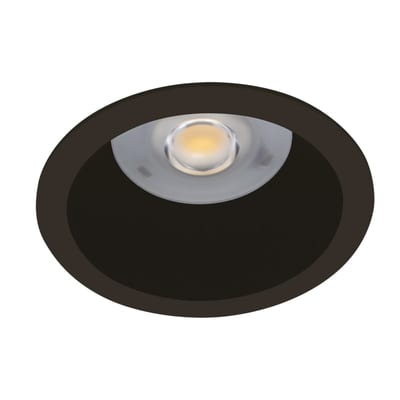

RAX SOFT 150 Black 1600 15W/840 DALI
212559
SG Armaturen

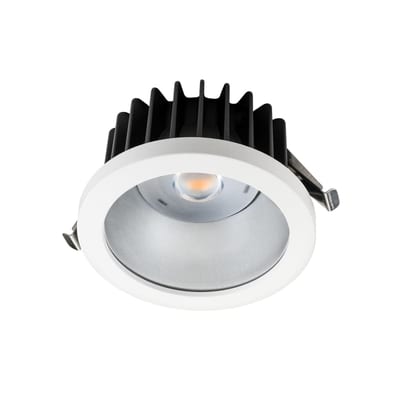

RAX SOFT 150 Satin 4000 34W/840
