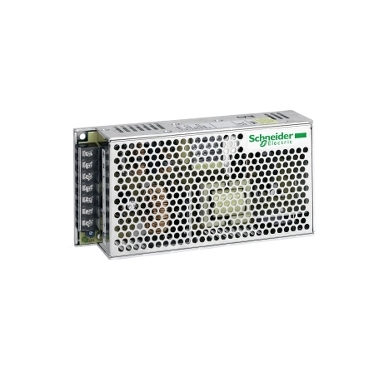

Schneider Phaseo ABL1 Modular Power Supply 24V DC 6A 150W

Schneider Electric ABL1REM24062 Phaseo ABL1 modular regulated SMPS, 100-240V AC input, 24V DC / 6A / 150W output. Compact DIN rail device with diagnostics LED.

Series

Phaseo ABL1 REM, Input Voltage: 100-240V AC, 1-phase, 50/60Hz, Output Voltage: 24V DC regulated, Output Current: 6A, Output Power: 150W, Protections: Short-circuit, overcurrent, over-temperature, overvoltage, Mounting: 35mm DIN rail, Ip Rating: IP20

Voltage

24 V

Range of product

Phaseo Dedicated

Product or component type

Power supply

Power supply type

Regulated switch mode

Rated power in W

150 W

Main Input Voltage

100...120 V AC single phase; 200...240 V AC single phase; 180...370 V DC

Output voltage

24 V DC

Power supply output current

6.2 A

Operating position

Any position

Vibration resistance

2 gn (f= 9…150 Hz) conforming to EN/IEC 61131-2; 3.5 mm (f= 5…9 Hz) conforming to EN/IEC 61131-2

Name of test

Conducted interference conforming to EN 61000-4-8 level 4; Electrostatic discharges conforming to EN/IEC 61000-4-2 level 3; Induced electromagnetic field conforming to EN/IEC 61000-4-6 level 3; Radiated electromagnetic field conforming to EN/IEC 61000-4-3 level 3; Rapid transient conforming to IEC 61000-4-4 level 3; Conducted/radiated emissions conforming to EN 55022 class B; Conducted/radiated emissions conforming to EN/IEC 55011; Emission conforming to EN/IEC 61000-6-3; Primary outage conforming to IEC 61000-4-11; Surge conforming to EN/IEC 61000-4-5

Input voltage limits

170...264 V; 85...132 V

Network frequency

47...63 Hz

Inrush current

50 A at 115 V AC; 100 A at 230 V AC

Cos phi

0.65

Efficiency

80 %

Power dissipation in W

37.5 W

Current consumption

5 A at 100 V; 2.5 A at 240 V

Input protection type

Integrated fuse (not interchangeable)

Output voltage limits

21.6...26.4 V

Line and load regulation

+/- 3 %

Holding time

>= 10 ms at 100 V; >= 40 ms at 240 V

Output protection type

Against overload, protection technology: 1.1...1.5 x In; Against overvoltage, protection technology: tripping if U > 1.25 x Un; Against short-circuits, protection technology: automatic reset; Thermal

Connections - terminals

For ground connection: screw type terminals, connection capacity: 1 x 4 mm² 12 AWG; For input connection: screw type terminals, connection capacity: 2 x 4 mm² 12 AWG; For output connection: screw type terminals, connection capacity: 4 x 4 mm² 12 AWG

Marking

CE

Mounting support

Reversible mounting bracket; Panel

Operating altitude

2000 m

Output coupling

Series; Parallel

Overvoltage category

II

Meantime between failure [MTBF]

100000 h at 40 °C

Status LED

1 LED (green) output voltage

Product weight

0.73 kg

Product certifications

TUV 60950-1; KC; RCM; cCSAus; CSA 22-2 No 60950-1; EAC; UL 508

Environmental characteristic

EMC conforming to EN 50081-1; EMC conforming to EN 50082-2; EMC conforming to EN 61000-6-3; EMC conforming to EN/IEC 61000-6-2; Safety conforming to EN/IEC 60950-1; Safety conforming to SELV

IP degree of protection

IP20 conforming to EN/IEC 60950

Ambient air temperature for operation

0…45 °C (without derating); 45…60 °C (with derating factor)

Ambient air temperature for storage

-25…85 °C

Relative humidity

20…90 %

Pollution degree

2

Dielectric strength

1500 V between input and ground; 3000 V between input and output; 500 V between output and ground

Number of Units in Package 1

1

Country of origin

CN

Warranty (in months)

18

EAN

3389110638332

Standard

IEC 61204; EN 60950-1

Classification / Approval

CE, UL, CSA, RCM, EAC

HS Code

8504.40
