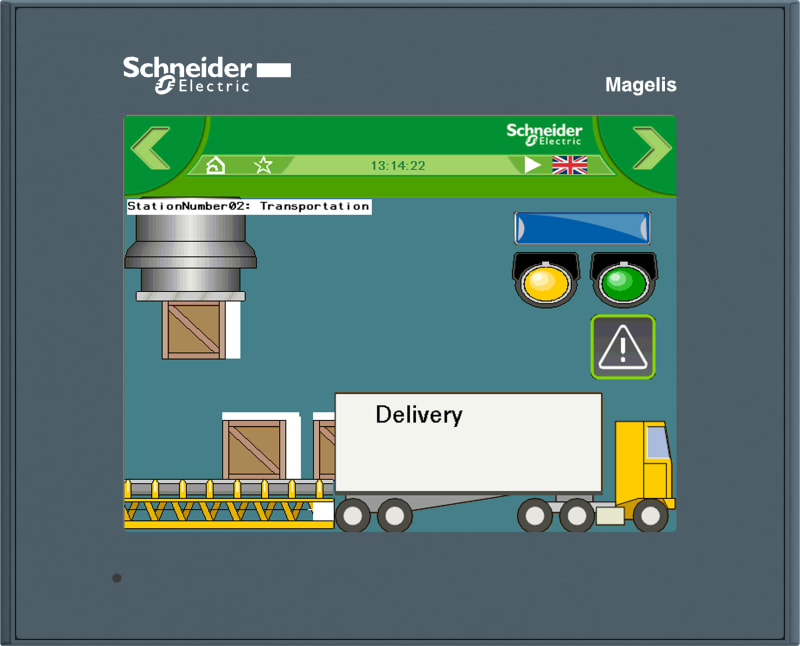

Schneider Magelis HMIGTO2310 5.7" Color Touch HMI

Schneider Electric HMIGTO2310 Magelis GTO advanced 5.7-inch QVGA TFT colour touch HMI, 320x240 resolution, 24V DC supply. Ethernet + serial + USB. Vijeo Designer programming.

Series

Magelis GTO, Display Size: 5.7-inch QVGA TFT, Resolution: 320x240, 65536 colours, Touch: Resirigide analog touchscreen, Supply Voltage: 24V DC, Communication: 1x Ethernet 10/100, 2x serial (RS232/485), 2x USB, Memory: 96 MB application memory, Ip Rating: IP65 (front), IP20 (rear), Programming: Vijeo Designer

Range of product

Harmony GTO

Product or component type

Advanced touchscreen panel

Display colour

65536 colours

Display size

5.7 inch

Supply

External source

Battery type

Lithium battery for internal RAM, autonomy: 100 days, charging time = 5 day(s), battery life = 10 year(s)

Processor name

ARM926EJ-S

Software package

Vijeo Designer

Terminal type

Touchscreen display

Display type

Backlit colour TFT LCD

Display resolution

320 x 240 pixels QVGA

Touch sensitive zone

1024 x 1024

Touch panel

Resistive film, 1000000 cycles

Backlight lifespan

50000 hours white at 25 °C

Brightness

16 levels - control by touch panel; 16 levels - control by software

Character font

Korean; Taiwanese (traditional Chinese); ASCII (European characters); Chinese (simplified Chinese); Japanese (ANK, Kanji)

[Us] rated supply voltage

24 V DC

Supply voltage limits

19.2…28.8 V

Inrush current

30 A

Maximum power consumption in W

6.5 W when power is not supplied to external devices; 4.5 W when backlight is OFF; 5 W when backlight is dimmed; 10.5 W

Local signalling

Status LED green, steady for offline; Status LED green, steady for operating; Status LED orange, flashing for software starting up; Status LED red, steady for power supply (ON); Status LED clear, faded for power supply (OFF); COM2 LED yellow, steady for data is being transmitted; COM2 LED yellow, faded for no data transmission; SD card LED green, steady for card is inserted; SD card LED green, faded for card is not inserted or is not being accessed

Memory description

Flash EPROM, 96 MB

Data backed up

512 KB internal RAM (SRAM)

Data storage equipment

SD card, <= 32 GB; SDHC card, <= 32 GB

Downloadable protocols

Schneider Electric Modicon Modbus; Schneider Electric Modicon Uni-TE; Schneider Electric Modicon Modbus Plus; Schneider Electric Modicon FIPWAY; Mitsubishi Melsec third party protocols; Omron Sysmac third party protocols; Rockwell Automation Allen-Bradley third party protocols; Siemens Simatic third party protocols; Schneider Electric Modicon Modbus TCP

Integrated connection type

COM1 serial link SUB-D 9, interface: RS232C, transmission rate: 2400...115200 bps; COM2 serial link RJ45, interface: RS485, transmission rate: 2400...115200 bps; COM2 serial link RJ45, interface: RS485, transmission rate: 187.5 kbps compatible with Siemens MPI; Ethernet RJ45, interface: 10BASE-T/100BASE-TX; Ethernet RJ45, interface: IEEE 802.3; USB 2.0 type A; USB 2.0 type mini B

Product mounting

Flush mounting

Fixing mode

By 4 screw clamps

Front material

PPT

Enclosure material

PPT

Type of cooling

Natural convection

Width

169.5 mm

Height

137 mm

Depth

59.5 mm

Product weight

0.8 kg

Standards

IEC 61000-6-2; UL 508; IEC 61131-2

Product certifications

cULus; C-Tick; CE; KCC; UKCA; UKEX

Ambient air temperature for operation

0…55 °C

Ambient air temperature for storage

-20…60 °C

Relative humidity

10…90 % without condensation

Operating altitude

< 2000 m

IP degree of protection

IP20 (rear panel) conforming to IEC 60529; IP65 (front panel) conforming to IEC 60529

NEMA degree of protection

NEMA 4X front panel (indoor use)

Shock resistance

147 m/s² 3 chocks in each direction X, Y and Z conforming to IEC 61131-2

Vibration resistance

3.5 mm (f = 5…9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - conforming to IEC 61131-2; 1 gn (f = 9…150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - conforming to IEC 61131-2

Resistance to electrostatic discharge

6 kV contact discharge conforming to IEC 61000-4-2 level 3

Number of Units in Package 1

1

Number of Units in Package 2

4

Number of Units in Package 3

64

Country of origin

ID

Warranty (in months)

18

EAN

3595864150246

Standard

IEC 61131-2; UL 508

Classification / Approval

CE, UL, CSA, RCM, EAC

HS Code

8537.10
