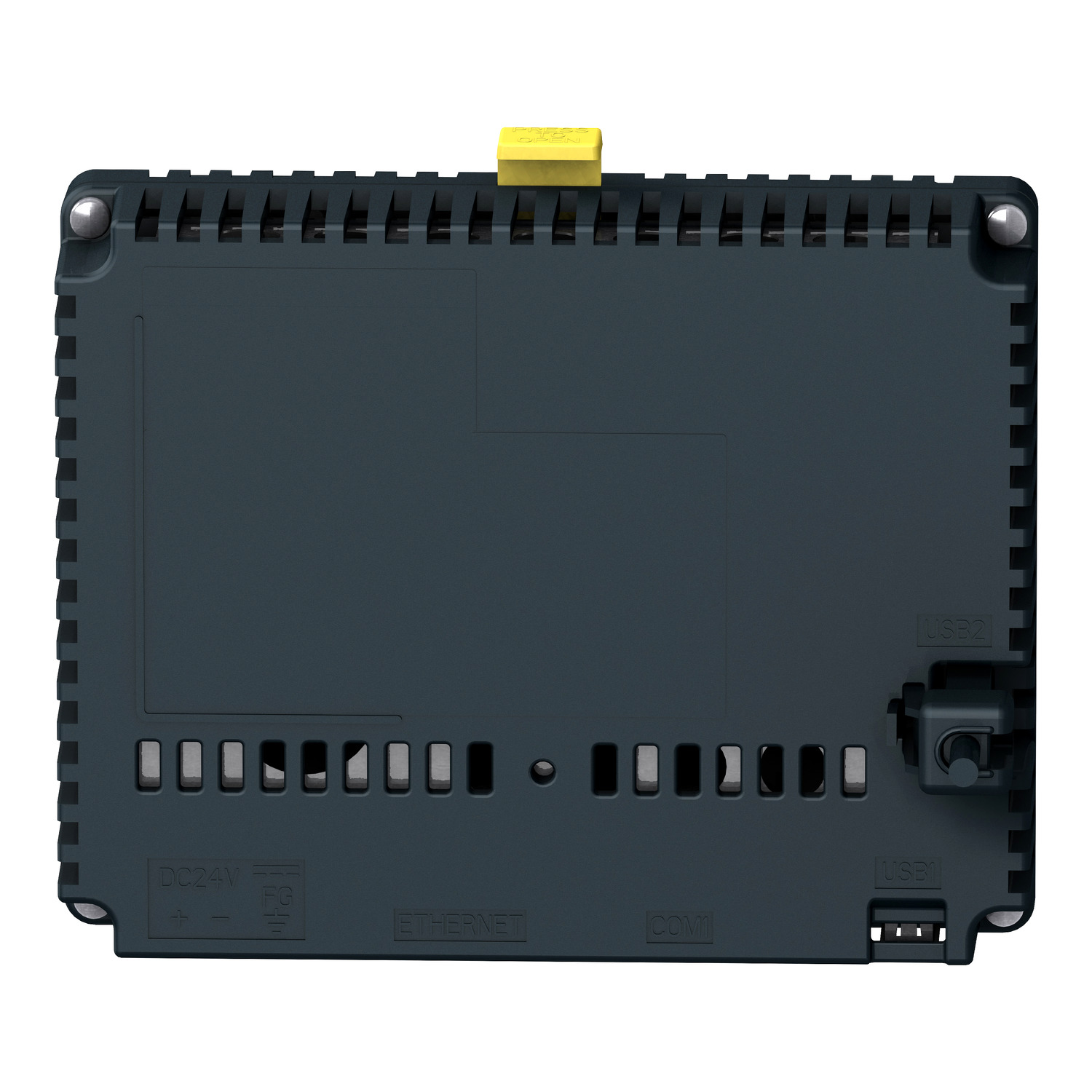

Schneider Magelis HMISTU655 3.5" Color Touch HMI

Schneider Electric HMISTU655 Magelis STU 3.5-inch QVGA colour TFT touch HMI, 320x240 resolution, 24V DC supply, Ethernet + serial + USB.

Series

Magelis STU, Display Size: 3.5-inch QVGA TFT colour, Resolution: 320x240, 65536 colours, Touch: Resirigide analog touchscreen, Supply Voltage: 24V DC, Communication: 1x Ethernet 10/100, 1x RS232/485 serial, 1x USB, Ip Rating: IP65 (front), IP20 (rear), Programming: Vijeo Designer

Range of product

Harmony STO & STU

Product or component type

Touch panel screen

Software package

Vijeo Designer

Processor name

ARM926EJ-S

Display size

3.5 inch

Display type

QVGA TFT colour touchscreen

Display colour

65536 colours

Display resolution

320 x 240 pixels QVGA

Touch panel

Analogue

Backlight lifespan

50000 hours

Brightness

16 levels

Character font

Chinese (simplified Chinese); Japanese (ANK, Kanji); ASCII; Korean; Taiwanese (traditional Chinese)

[Us] rated supply voltage

24 V DC

Supply

External source

Supply voltage limits

20.4…28.8 V

Inrush current

30 A

Power consumption in W

6.5 W

Number of pages

Limited by internal memory capacity

Memory description

Application memory 16 MB; Back up of data 64 kB

Integrated connection type

1 USB 2.0 type mini B; 1 USB 2.0 type A; COM1 serial link - female RJ45 - RS232C/RS485 (rate: <= 115.2 kbits/s); power supply - removable screw terminal block; 1 Ethernet - RJ45

Realtime clock

Access to the PLC real-time clock

Downloadable protocols

Modbus TCP/IP; Modbus; Uni-TE; Third party protocols

Fixing mode

Ø 22 mm hole

Enclosure material

PC/PBT

Marking

With Schneider logo; CE

Height

98.15 mm

Width

118 mm

Depth

55.3 mm

Immunity to microbreaks

10 ms

Standards

IEC 61000-6-2; IEC 61131-2; UL 1604; UL 508; FCC Class A

Product certifications

cULus; C-Tick; Marine; UL class 1 Div2 T4A ou T5; UKCA

Ambient air temperature for operation

0…50 °C

Ambient air temperature for storage

-20…60 °C

Relative humidity

0…85 % without condensation

Operating altitude

<= 2000 m

IP degree of protection

IP20 (rear panel) conforming to IEC 60529; IP65 (front panel) conforming to IEC 60529

NEMA degree of protection

NEMA 4X front panel (indoor use)

Shock resistance

15 gn for 11 ms conforming to IEC 60068-2-27

Vibration resistance

+/- 3.5 mm (f = 5…9 Hz) conforming to IEC 60068-2-6; 1 gn (f = 9…150 Hz) conforming to IEC 60068-2-6

Resistance to electromagnetic fields

10 V/m conforming to IEC 61000-4-3

Number of Units in Package 1

1

Number of Units in Package 2

16

Country of origin

CN

Warranty (in months)

18

EAN

3606489909482
