Schneider ACTI9 iPF K Transient protection housing

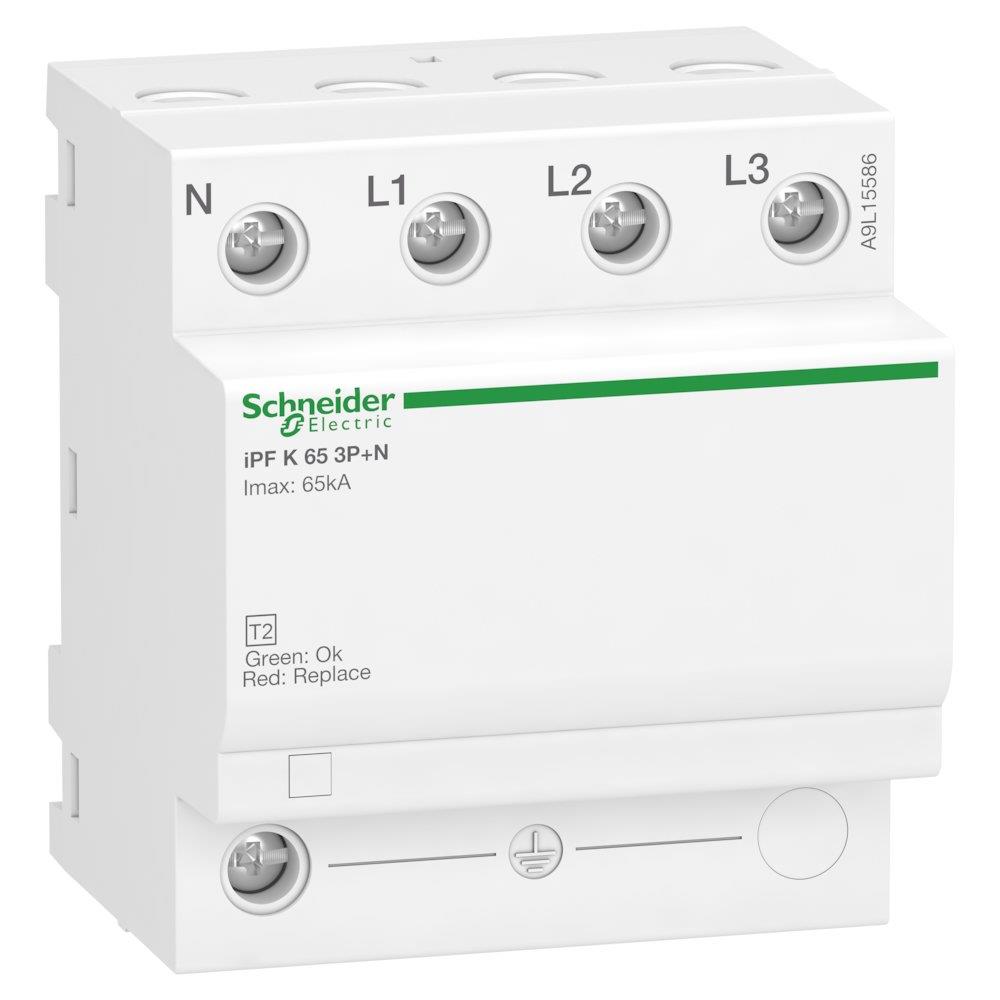

Schneider Acti9 iPF K Transient protection housing. Accessories for electrical cabinets and boxes (Electrical Engineering / Tables, cabinets, and boxes). Supplied under manufacturer part number A9L15586, EAN 3606480089800, HS code 8536.30, country of origin China.

Product type

Accessories for electrical cabinets and boxes

Product group

Tables, cabinets, and boxes

REACH SVHC substance above 0.1%

Lead, Diarylmethane, Diboron-trioxide, Lead-monoxide

Carbon footprint (EPD)

3.2609 kg CO2e per pcs

Country of origin

China

Customs tariff code (EU CN)

85363030

HS code

8536.30

Manufacturer part number

A9L15586

Range of product

IPF K

Product name

Acti9 iPF K

Product or component type

Surge arrester

Device short name

iPF K

Device application

Distribution

Standards

IEC 61643-11:2011

Product certifications

CE; EAC

Poles description

3P + N

Remote signalling

Without

Surge arrester type

Electrical distribution network

Earthing system

TN-S; TT

Surge arrester class type

Type 2

Surge arrester technology

MOV + GDT

[Ue] rated operational voltage

230/400 V AC (+/- 10 %) at 50/60 Hz

Nominal discharge current

Common mode: 20 kA (L/PE); Common mode: 20 kA (N/PE); Differential mode: 20 kA (L/N)

Maximum discharge current

Common mode: 65 kA L/PE; Common mode: 65 kA N/PE; Differential mode: 65 kA L/N

[Uc] maximum continuous operating voltage

Common mode: 260 V N/PE; Differential mode: 340 V L/N

Maximum [Up] voltage protection level

Common mode 1.5 kV type 2 N/PE; Differential mode 1.5 kV type 2 L/N

[Out] temporary overvoltage

337 V L/N 5 s withstand; 442 V L/PE 5 s withstand; 1200 V N/PE 200 ms withstand; 1453 V L/PE 200 ms withstand

Disconnector device type

Associated circuit breaker iK60N 50 A curve C - Icu 6 kA; Associated fuse gG 80 A - Icu 25 kA

Signalling circuit voltage

0.25 A/250 V AC 50/60 Hz

Mounting mode

Clip-on (DIN rail)

9 mm pitches

8

Height

81 mm

Width

72 mm

Depth

69 mm

Product weight

335 g

Colour

White (RAL 9003)

[Ipe] Ground residual current

0.003 mA

Connections - terminals

Tunnel type terminal (top or bottom) 25 mm² rigid; Tunnel type terminal (top or bottom) 16 mm² flexible; Tunnel type terminal (top or bottom) 16 mm² flexible with ferrule

Wire stripping length

11 mm

Tightening torque

3.5 N.m

Compatibility code

IPF K 65

IK degree of protection

IK03 conforming to IEC 62262

Relative humidity

5…95 %

Operating altitude

2000 m

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…85 °C

Number of Units in Package 1

1

Number of Units in Package 2

3

Number of Units in Package 3

36

Warranty (in months)

18

EAN

3606480089800

HS Code

8536.30

• EAN 3606480089800
• MPN A9L15586
