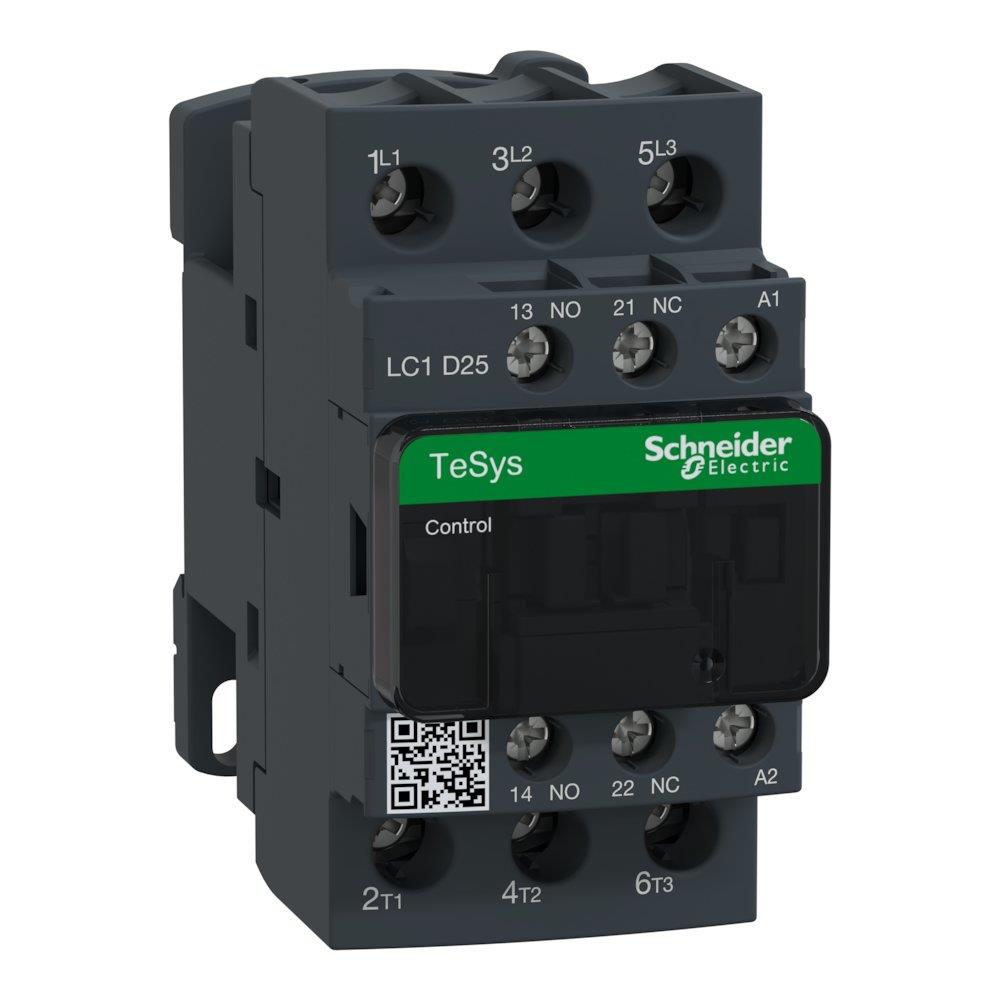

Schneider LC1D Contactor - TeSys D, 25A, 3P, 24 ACV

Schneider LC1D Contactor. Contactors and thermal relays (Electrical Engineering / Components for panels and boxes). Principal data: series TeSys D, current 25 A, number of poles 3P, voltage 24 V AC. Supplied under manufacturer part number LC1D25B7TQ, EAN 3389110349665, HS code 8536.41, country of origin France.

Product type

Contactors and thermal relays Product group: Components for panels and boxes Series: TeSys D Current: 25 A Number of poles: 3P Voltage: 24 V AC Sales unit: Pack Carbon footprint (EPD): 2.4133 kg CO2e per pcs Country of origin: France Customs tariff code (EU CN): 85364190 HS code: 8536.41 Manufacturer part number: LC1D25B7TQ Range: TeSys; TeSys Deca Range of product: TeSys Deca Product or component type: Contactor Device short name: LC1D Contactor application: Resistive load; Motor control Utilisation category: AC-3; AC-3e; AC-1 Poles description: 3P [Ue] rated operational voltage: Power circuit: <= 690 V AC 25...400 Hz [Ie] rated operational current: 25 A (at <60 °C) at <= 440 V AC AC-3 for power circuit; 40 A (at <60 °C) at <= 440 V AC AC-1 for power circuit; 25 A (at <60 °C) at <= 440 V AC AC-3e for power circuit [Uc] control circuit voltage: 24 V AC 50/60 Hz Motor power kW: 5.5 kW at 220/230 V AC 50/60 Hz (AC-3); 11 kW at 380/400 V AC 50/60 Hz (AC-3); 11 kW at 415/440 V AC 50/60 Hz (AC-3); 15 kW at 500 V AC 50/60 Hz (AC-3); 15 kW at 660/690 V AC 50/60 Hz (AC-3); 5.5 kW at 220/230 V AC 50/60 Hz (AC-3e); 11 kW at 380/400 V AC 50/60 Hz (AC-3e); 11 kW at 415/440 V AC 50/60 Hz (AC-3e); 15 kW at 500 V AC 50/60 Hz (AC-3e); 15 kW at 660/690 V AC 50/60 Hz (AC-3e); 5.5 kW at 400 V AC 50/60 Hz (AC-4) Motor power hp: 5 hp at 200/208 V AC 50/60 Hz for 3 phases motors conforming to CSA; 5 hp at 200/208 V AC 50/60 Hz for 3 phases motors conforming to UL; 3 hp at 230...240 V AC 50/60 Hz for 1 phase motors conforming to CSA; 3 hp at 230...240 V AC 50/60 Hz for 1 phase motors conforming to UL; 15 hp at 460/480 V AC 50/60 Hz for 3 phases motors conforming to CSA; 15 hp at 460/480 V AC 50/60 Hz for 3 phases motors conforming to UL; 2 hp at 115 V AC 50/60 Hz for 1 phase motors conforming to CSA; 2 hp at 115 V AC 50/60 Hz for 1 phase motors conforming to UL; 20 hp at 575/600 V AC 50/60 Hz for 3 phases motors conforming to CSA; 20 hp at 575/600 V AC 50/60 Hz for 3 phases motors conforming to UL; 7.5 hp at 230...240 V AC 50/60 Hz for 3 phases motors conforming to CSA; 7.5 hp at 230...240 V AC 50/60 Hz for 3 phases motors conforming to UL Compatibility code: LC1D Pole contact composition: 3 NO Protective cover: With [Ith] conventional free air thermal current: 10 A (at 60 °C) for control circuit; 40 A (at 60 °C) for power circuit Irms rated making capacity: 140 A AC for control circuit conforming to IEC 60947-5-1; 450 A at 440 V for power circuit conforming to IEC 60947 Rated breaking capacity: 450 kA at 440 V for power circuit conforming to IEC 60947 Associated fuse rating: 10 A gG for control circuit conforming to IEC 60947-5-1; 40 A at <= 690 V coordination type 2 for power circuit; 63 A at <= 690 V coordination type 1 for power circuit Average impedance: 2 mOhm - Ith 40 A 50 Hz for power circuit Power dissipation per pole: 3.2 W AC-1; 1.25 W AC-3; 1.25 W AC-3e [Ui] rated insulation voltage: Control circuit: 600 V CSA certified; Control circuit: 600 V UL certified; Power circuit: 600 V CSA certified; Power circuit: 600 V UL certified; Control circuit: 690 V conforming to IEC 60947-4-1; Power circuit: 690 V conforming to IEC 60947-4-1 Overvoltage category: III [Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947 Safety reliability level: B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 Mechanical durability: 15 Mcycles Control circuit type: AC at 50/60 Hz Coil technology: Without built-in bidirectional peak limiting diode suppressor Control circuit voltage limits: 0.3...0.6 Uc (60 °C):drop-out AC 50/60 Hz; 0.8...1.1 Uc (60 °C):operational AC 50 Hz; 0.85...1.1 Uc (60 °C):operational AC 60 Hz Inrush power in VA: 70 VA cos phi 0.75 (at 20 °C) Hold-in power consumption in VA: 7 VA 50/60 Hz cos phi 0.3 (at 20 °C) Heat dissipation: 2…3 W at 50/60 Hz for control circuit Operating time: 4...19 ms opening; 12...22 ms closing Maximum operating rate: 3600 cyc/h at 60 °C Connections - terminals: Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end; Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end; Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end; Power circuit: screw clamp terminals 1 1.5…10 mm² - cable stiffness: solid without cable end; Power circuit: screw clamp terminals 2 2.5…10 mm² - cable stiffness: solid without cable end; Power circuit: screw clamp terminals 1 2.5…10 mm² - cable stiffness: flexible without cable end; Power circuit: screw clamp terminals 2 2.5…10 mm² - cable stiffness: flexible without cable end; Power circuit: screw clamp terminals 1 1…10 mm² - cable stiffness: flexible with cable end; Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: flexible with cable end Tightening torque: Control circuit: 1.7 N.m - with screwdriver flat Ø 6 mm; Control circuit: 1.7 N.m - with screwdriver Philips No 2; Power circuit: 2.5 N.m - with screwdriver flat Ø 6 mm; Power circuit: 2.5 N.m - with screwdriver Philips No 2; Control circuit: 1.7 N.m - with screwdriver pozidriv No 2; Power circuit: 2.5 N.m - with screwdriver pozidriv No 2 Auxiliary contact composition: 1 NO + 1 NC minimum switching voltage: 17 V for control circuit minimum switching current: 5 mA for control circuit Insulation resistance: > 10 MOhm for control circuit Non-overlap time: 1.5 ms on de-energisation between NC and NO contacts; 1.5 ms on energisation between NC and NO contacts Mounting support: Rail; Plate Standards: UL 60947-4-1; EN/IEC 60947-5-1; CSA C22.2 No 14; EN/IEC 60947-4-1; IEC 60335-1 Product certifications: BV; GL; LROS (Lloyds register of shipping); UL; DNV; CSA; RINA; GOST; CCC; UKCA IP degree of protection: IP2X conforming to IEC 60529; IP2X conforming to VDE 0106 Climatic withstand: conforming to IACS E10 exposure to damp heat; conforming to IEC 60947-1 Annex Q category D exposure to damp heat Permissible ambient air temperature around the device: -5…60 °C; -40…70 °C at Uc Operating altitude: 3000 m without derating Fire resistance: 850 °C conforming to IEC 60695-2-1 Flame retardance: V1 conforming to UL 94 Mechanical robustness: Shocks contactor closed (15 Gn for 11 ms) ; Shocks contactor opened (8 Gn for 11 ms) ; Vibrations contactor opened (2 Gn, 5...300 Hz) ; Vibrations contactor closed (4 Gn, 5...300 Hz) Height: 85 mm Width: 45 mm Depth: 92 mm Product weight: 3.7 kg Quantity per set: Set of 10 Warranty (in months): 18 EAN: 3389110349665

HS Code

8536.41

• EAN 3389110349665
• MPN LC1D25B7TQ
