Schneider ZB5 Paddle Actuator Head - Harmony XB5, 40mm, Orange, Push - Drej

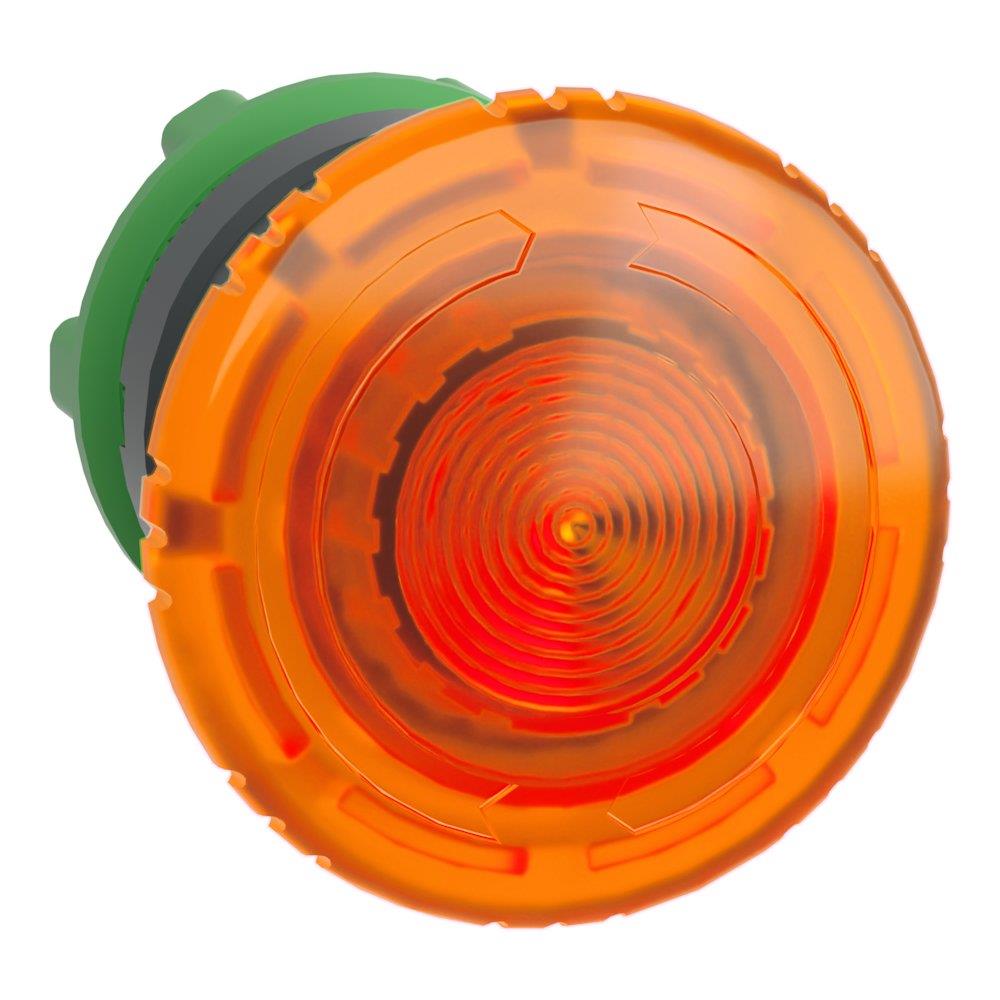

Schneider ZB5 Paddle Actuator Head. Pedal pressure and emergency stop button (Electrical Engineering / Push buttons and signal units / Push buttons). Principal data: series Harmony XB5, diameter 40 mm, color Orange, operation Pressure - Drej. Supplied under manufacturer part number ZB5AW753, EAN 3389110666861, HS code 8538.90, country of origin France.

Product type

Pedal pressure and emergency stop button

Product group

Push buttons and signal units

Series

Harmony XB5

Diameter

40 mm

Color

Orange

Operation

Pressure - Drej

Carbon footprint (EPD)

0.1993 kg CO2e per pcs

Country of origin

France

Customs tariff code (EU CN)

85389099

HS code

8538.90

Manufacturer part number

ZB5AW753

Range of product

Harmony XB5

Product or component type

Head for illuminated push-button

Device short name

ZB5

Product compatibility

Universal LED

Bezel material

Dark grey plastic

Mounting diameter

22 mm

Sale per indivisible quantity

1

Head type

Standard

Shape of signaling unit head

Round

Type of operator

latching

Reset

Turn to release

Operator profile

Orange mushroom Ø 40 mm, unmarked

CAD overall width

40 mm

CAD overall height

40 mm

CAD overall depth

50 mm

Product weight

0.022 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Mechanical durability

300000 cycles

Main group

Mushroom head

Group of product

Mush. turn to release illum

Station name

XALD 1 cut-out; XALK 1 cut-out

Cap/operator or lens colour

Orange

Marking

Unmarked

Electrical composition code

M6 for <2 contacts using single blocks in front mounting with integral LED and transformer; M10 for <2 contacts using single blocks in front mounting with integral LED; MF1 for <2 contacts using single blocks in front mounting with integral LED; MR1 for <2 contacts using single blocks in rear mounting with integral LED; M3 for <4 contacts using single blocks in front mounting with integral LED; M4 for <4 contacts using single and double blocks in front mounting with integral LED

Device presentation

Basic sub-assemblies

Protective treatment

TC

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class II conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP69; IP69K

Enclosure Type

UL type 4X/13

IK degree of protection

IK05 conforming to IEC 62262

Standards

GB 14048.5; UL 508; IEC 60947-5-1; CSA C22.2 No 14; JIS C8201-5-1; IEC 60947-1; IEC 60947-5-4; JIS C8201-1

Product certifications

CSA; DNV; BV; LROS (Lloyds register of shipping); UL listed

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

40

Warranty (in months)

18

EAN

3389110666861

HS Code

8538.90
