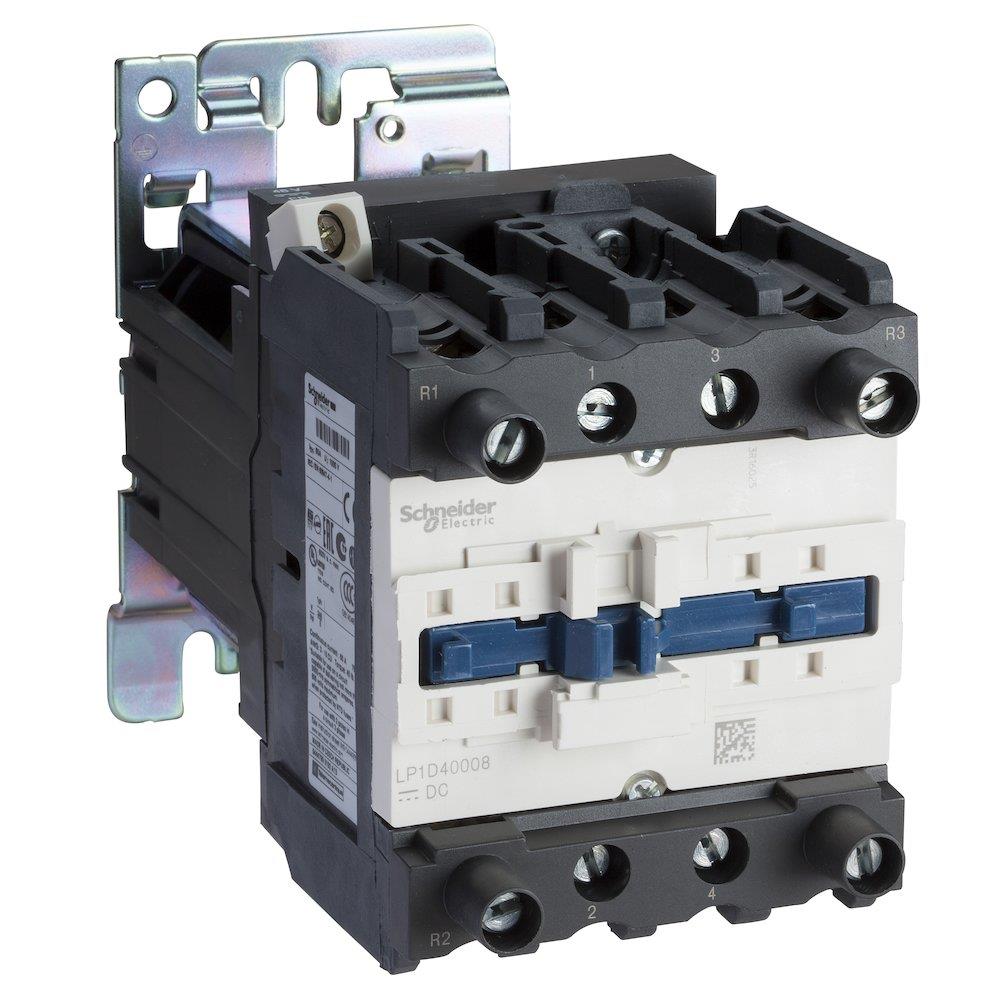

Schneider LP1D Contactor - TeSys D, 65A, 4P

Schneider LP1D Contactor. Contactors and thermal relays (Electrical Engineering / Components for panels and boxes). Principal data: series TeSys D, current 65 A, number of poles 4P. Supplied under manufacturer part number LP1D65004BD, EAN 3389110234237, HS code 8536.49, country of origin Czechia.

Product type

Contactors and thermal relays Product group: Components for panels and boxes Series: TeSys D Current: 65 A Number of poles: 4P Carbon footprint (EPD): 12.8905 kg CO2e per pcs Country of origin: Czechia Customs tariff code (EU CN): 85364900 HS code: 8536.49 Manufacturer part number: LP1D65004BD Range of product: TeSys Deca Product or component type: Contactor Device short name: LP1D Contactor application: Resistive load Utilisation category: AC-1; AC-3; AC-3e; AC-4 Poles description: 4P [Ue] rated operational voltage: Power circuit: <= 690 V AC 25...400 Hz [Ie] rated operational current: 80 A (at <60 °C) AC AC-1 for power circuit [Uc] control circuit voltage: 24 V DC Compatibility code: LP1D Pole contact composition: 4 NO Protective cover: With [Ith] conventional free air thermal current: 10 A (at 60 °C) for control circuit; 80 A (at 60 °C) for power circuit Irms rated making capacity: 1000 A at 440 V for power circuit conforming to IEC 60947; 250 A AC for control circuit conforming to IEC 60947-5-1 Rated breaking capacity: 1000 A at 440 V for power circuit conforming to IEC 60947 Associated fuse rating: 10 A gG for control circuit conforming to IEC 60947-5-1; 125 A gG at <= 690 V coordination type 2 for power circuit; 160 A gG at <= 690 V coordination type 1 for power circuit Average impedance: 1 mOhm - Ith 80 A 50 Hz for power circuit Power dissipation per pole: 9.6 W AC-1 [Ui] rated insulation voltage: Control circuit: 600 V CSA certified; Control circuit: 600 V UL certified; Power circuit: 600 V CSA certified; Power circuit: 600 V UL certified; Control circuit: 690 V conforming to IEC 60947-1; Power circuit: 690 V conforming to IEC 60947-1 Overvoltage category: III [Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947 Mechanical durability: 10 Mcycles Control circuit type: DC standard Coil technology: Built-in bidirectional peak limiting diode suppressor Control circuit voltage limits: 0.1...0.3 Uc (60 °C):drop-out DC; 0.75...1.25 Uc (60 °C):operational DC Inrush power in W: 19 W (at 20 °C) Hold-in power consumption in W: 7.4 W at 20 °C Rated operational power in W: 14 W at 24 V DC-13 - electrical durability: 10000000 cycles - for control circuit; 48 W at 24 V DC-13 - electrical durability: 3000000 cycles - for control circuit; 96 W at 24 V DC-13 - electrical durability: 1000000 cycles - for control circuit Operating time: 20 ms opening; 50 ms closing Time constant: 34 ms Maximum operating rate: 3600 cyc/h at 60 °C Connections - terminals: Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end; Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end; Power circuit: screw clamp terminals 1 1…35 mm² - cable stiffness: solid without cable end; Power circuit: screw clamp terminals 2 1…25 mm² - cable stiffness: solid without cable end; Power circuit: screw clamp terminals 2 1…35 mm² - cable stiffness: solid without cable end Tightening torque: Control circuit: 1.2 N.m - on screw clamp terminal - with screwdriver flat Ø 6 mm; Control circuit: 1.2 N.m - on screw clamp terminal - with screwdriver Philips No 2; Power circuit: 5 N.m - on screw clamp terminal - with screwdriver flat Ø 6 to Ø 8 mm Auxiliary contacts type: type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1; type mirror contact 1 NC conforming to IEC 60947-4-1 minimum switching voltage: 17 V for control circuit minimum switching current: 5 mA for control circuit Insulation resistance: > 10 MOhm for control circuit Non-overlap time: 1.5 ms on de-energisation between NC and NO contacts; 1.5 ms on energisation between NC and NO contacts Mounting support: Plate; Rail Standards: EN 60947-1; IEC 60947-4-1; EN 60947-4-1; IEC 60947-1; BS 5424; NF C 63-110; JEM 1038; VDE 0660 Product certifications: GL; PTB; CSA; DNV; SNCF; Sichere trennung; UL; GOST; RINA; UKCA IP degree of protection: IP2X conforming to IEC 60529; IP2X conforming to VDE 0106 Protective treatment: TH (pollution degree 3) conforming to IEC 60068 Permissible ambient air temperature around the device: -5…60 °C; -40…70 °C at Uc Operating altitude: 3000 m without derating Fire resistance: 850 °C conforming to IEC 60695-2-1 Flame retardance: V1 conforming to UL 94 Mechanical robustness: Shocks contactor open (8 Gn for 11 ms) ; Shocks contactor closed (10 Gn for 11 ms) ; Vibrations contactor opened (2 Gn, 5...300 Hz) ; Vibrations contactor closed (3 Gn, 5...300 Hz) Height: 127 mm Width: 85 mm Depth: 182 mm Product weight: 2.21 kg Warranty (in months): 18 EAN: 3389110234237

HS Code

8536.49

• EAN 3389110234237
• MPN LP1D65004BD
