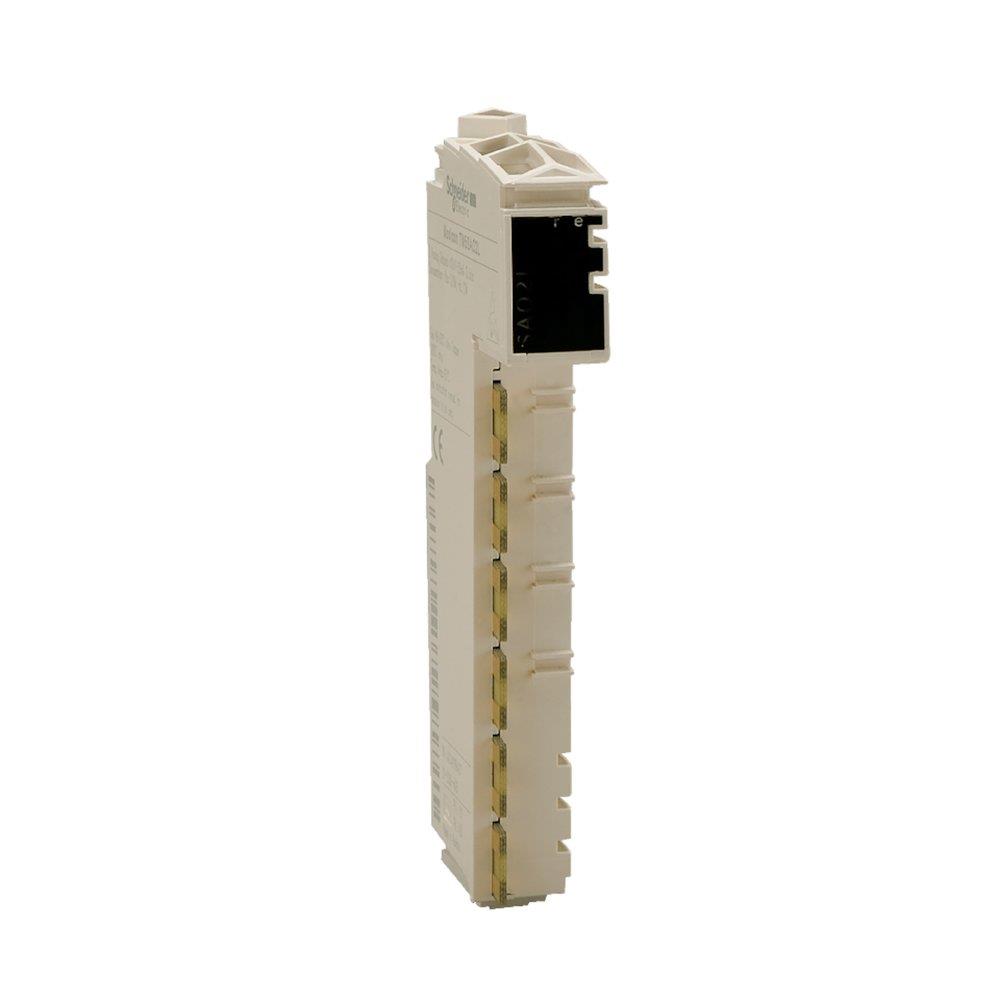

Schneider Modicon TM5 Expansion Module - 6

Schneider Modicon TM5 Expansion Module. Distributed I/O (Electrical Engineering / Industry and automation). Principal data: number of analogue outputs 6. Supplied under manufacturer part number TM5SAI6TH, EAN 3595864074788, HS code 8538.90, country of origin Austria.

Product type

Distributed I/O

Product group

Industry and automation

Number of analogue outputs

6

Carbon footprint (EPD)

0.3575 kg CO2e per pcs

Country of origin

Austria

Customs tariff code (EU CN)

85389099

HS code

8538.90

Manufacturer part number

TM5SAI6TH

Range of product

Modicon TM5

Product or component type

Analog input module

Product compatibility

Logic controller; Motion controller

Range compatibility

Modicon LMC058; Modicon M258

Analogue input number

6

Measurement resolution

0.1 °C

Colour

White

Temperature coefficient

0.01 %FS/°C, analogue input type: thermocouple

Supply

Internal

[Us] rated supply voltage

24 V DC -15...20 %

Analogue input type

Thermocouple - 210...1200 °C thermocouple J; Thermocouple - 270...1300 °C thermocouple N; Thermocouple - 270...1372 °C thermocouple K; Thermocouple - 50...1768 °C thermocouple S

Analogue input resolution

16 bits

Input filtering

1...66.7 ms configurable by software

Type of cable

Shielded cable

Measurement error

+/- 0.1 % of full scale - 210...1200 °C thermocouple J 25 °C; +/- 0.11 % of full scale - 270...1300 °C thermocouple N 25 °C; +/- 0.11 % of full scale - 270...1372 °C thermocouple K 25 °C; +/- 0.17 % of full scale - 50...1768 °C thermocouple S 25 °C

Non-linearity

+/- 0.001 %FS, analogue input type: thermocouple

Common mode rejection

> 70 dB

Typical current consumption

2 mA at 5 V DC; 38 mA at 24 V DC input/output

Power dissipation in W

0.92 W

Isolation between channels

None

Isolation between channels and bus

500 Vrms AC

Local signalling

1 LED green for power supply; 1 LED red for power supply; 6 LEDs green for input status

Housing colour

White

Height

99 mm

Width

12.5 mm

Depth

75 mm

Product weight

0.025 kg

IP degree of protection

IP20

Marking

CE

Product certifications

CSA; GOST-R; CULus; C-Tick

Standards

IEC 61131-2; CSA C22.2 No 213; UL 508; CSA C22.2 No 142

Ambient air temperature for operation

0…55 °C without derating (horizontal installation); 0…60 °C with derating factor (horizontal installation); 0…50 °C (vertical installation)

Ambient air temperature for storage

-25…70 °C

Relative humidity

5…95 % without condensation

Operating altitude

0...2000 m

Pollution degree

2

Vibration resistance

1 gn (f = 8.4…150 Hz) on DIN rail; 3.5 mm (f = 5…8.4 Hz) on DIN rail

Shock resistance

15 gn for 11 ms

Warranty (in months)

18

EAN

3595864074788

HS Code

8538.90
