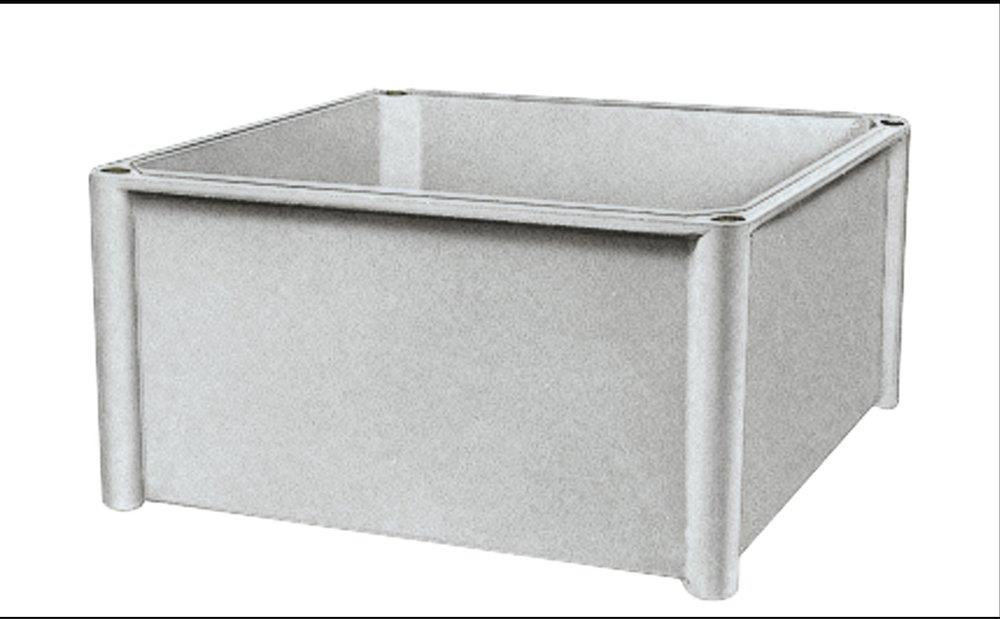

Schneider Thalassa PLS Box Base - Thalassa PLS, 270 x 360mm, 135mm, grey, PE ( Polyester )
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Thalassa PLS Box Base. Modular boxes (Electrical Engineering / Tables, cabinets, and boxes / Capsules). Principal data: series Thalassa PLS, size 270 x 360 mm, depth 135 mm, color Grey. Supplied under manufacturer part number NSYFPLS2736G, EAN 3606480773990, HS code 8538.10, country of origin Spain.
Technical Specifications
- Product type
- Modular boxes
- Product group
- Tables, cabinets, and boxes
- Series
- Thalassa PLS
- Size
- 270 x 360 mm
- Depth
- 135 mm
- Color
- Grey
- Material
- PE ( Polyester )
- REACH SVHC substance above 0.1%
- Lead, Terphenyl
- Carbon footprint (EPD)
- 5.2112 kg CO2e per pcs
- Country of origin
- Spain
- Customs tariff code (EU CN)
- 85381000
- HS code
- 8538.10
- Manufacturer part number
- NSYFPLS2736G
- Range
- PanelSeT
- Product name
- PanelSeT PLS
- Device short name
- PLS
- Enclosure type
- Multi-purpose
- Category
- Insulating modular rear
- Nominal height
- 270 mm
- Nominal width
- 360 mm
- Nominal depth
- 135 mm
- Enclosure mounting
- Wall mounted
- Device composition
- 1 rear part: on enclosure
- Body type
- One piece moulded
- Type of front cover
- Without
- Colour
- Body: grey (RAL 7035)
- Standards
- NEMA classification 13; IEC 62208; NEMA 4X
- Product certifications
- UL
- Electrical insulation class
- Class II
- IP degree of protection
- IP66 conforming to IEC 60529
- IK degree of protection
- IK09 conforming to IEC 62262
- Fire resistance
- 960 °C conforming to IEC 62208
- Ambient air temperature for storage
- -30…70 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 112
- Warranty (in months)
- 18
- EAN
- 3606480773990
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3606480773990
- MPN NSYFPLS2736G
Product Documentation
