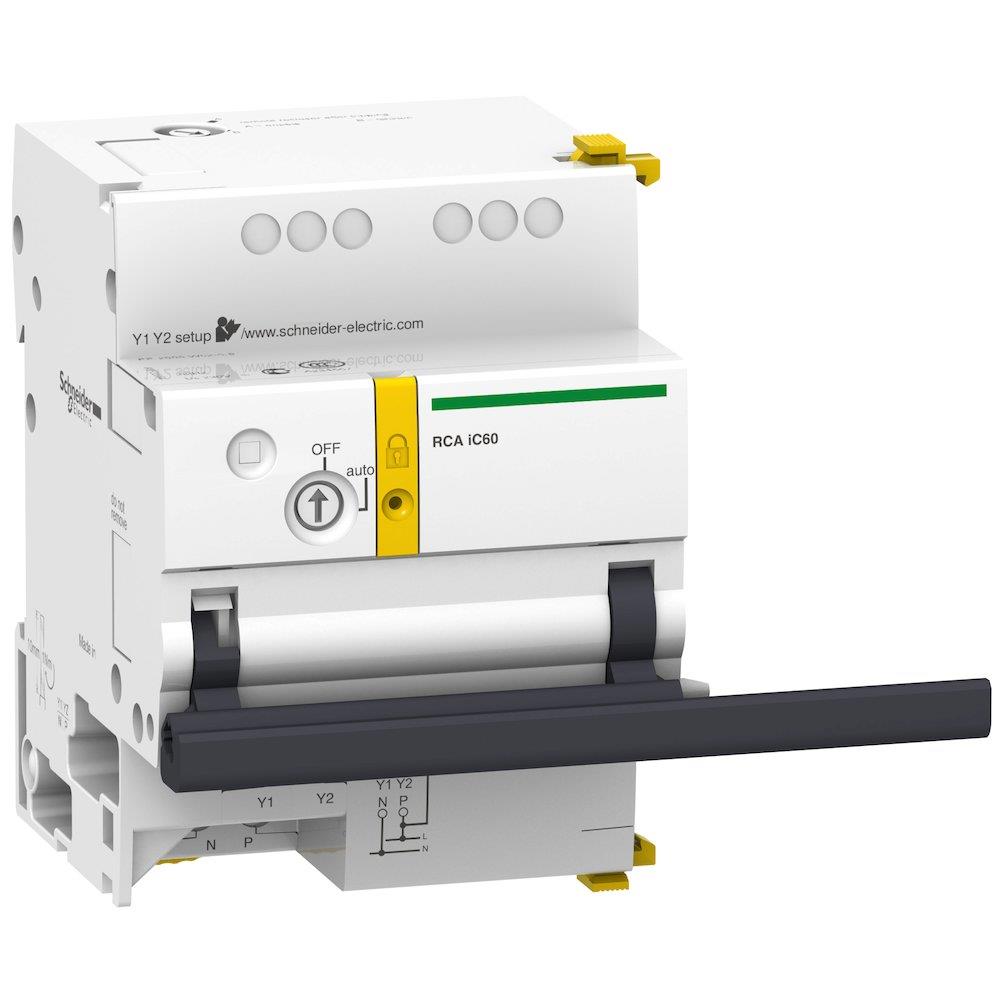

Schneider ACTI9 IC60 RCA Motor Drive

Schneider Acti9 iC60 RCA Motor Drive. Accessories for fuses (Electrical Engineering / Components for panels and boxes / Fuses and accessories). Supplied under manufacturer part number A9C70114, EAN 3606480097959, HS code 8544.11, country of origin Spain.

Product type

Accessories for fuses

Product group

Components for panels and boxes

REACH SVHC substance above 0.1%

Lead, Diboron-trioxide, Lead tetroxide, Lead-monoxide, Octrizole

Carbon footprint (EPD)

2.7601 kg CO2e per pcs

Country of origin

Spain

Customs tariff code (EU CN)

85441110

HS code

8544.11

Manufacturer part number

A9C70114

range of product

Acti9

Product or component type

Remote control auxiliary

Device short name

RCA iC60

Signal contacts composition

1 OF volt-free contacts

Signalling circuit voltage

Volt-free contact 24...230 V 0.01…1 A AC

Control type

Remote control impulse and maintained 230 V AC 50/60 Hz

Input current

5 mA impulse; 5 mA maintained

Impulse duration

>= 200 ms control circuit

Response time

< 500 ms

[Us] rated supply voltage

230 V AC 50/60 Hz

Power consumption in W

1 W

[Ui] rated insulation voltage

400 V

[Uimp] rated impulse withstand voltage

6 kV

Value of setting

Mode A: reclosing authorized after tripping; Mode B: reclosing inhibited after tripping; Auto: remote control authorized; Off: remote control inhibited

Local signalling

Flashing green LED: ready to operate; Flashing orange LED: not operational

mounting mode

Fixed

Mounting support

DIN rail

Comb busbar and distribution block compatibility

NO

9 mm pitches

7

Height

93 mm

Width

63 mm

Depth

75.5 mm

Product weight

430 g

Colour

White

Electrical durability

10000 cycles

Mechanical durability

10000 cycles

Provision for padlocking

Padlockable

Wire stripping length

Power supply: 10 mm for bottom connection; Input: 10 mm for bottom connection; Output: 8 mm for top connection

Tightening torque

Auxiliary output: 0.7 N.m; Auxiliary supply: 1 N.m; Auxiliary input: 1 N.m

Range compatibility

Acti9 iC60; Acti9 iC65; Acti9 iMDU voltage adaptor

Product compatibility

3P or 4P iC60; 3P or 4P iC65; iMDU

IP degree of protection

IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529

Pollution degree

3 conforming to IEC 60947

Overvoltage category

II

Tropicalisation

2

Relative humidity

93 % at 40 °C

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…60 °C

Number of Units in Package 1

1

Number of Units in Package 2

14

Warranty (in months)

18

EAN

3606480097959

HS Code

8544.11

• EAN 3606480097959
• MPN A9C70114
