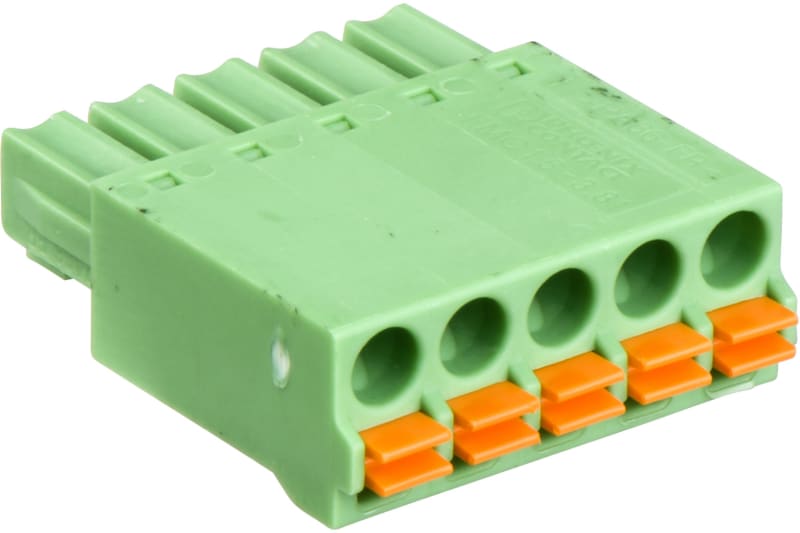

Schneider Electric set of 12 spring connectors 5 pins TI24 A9XC2412

Schneider Electric A9XC2412 Connector 5 PIN set of 12 pcs.

Manufacturer part number (MPN)

A9XC2412

EAN / GTIN

3606480437274

Sales unit

pcs

Package quantity

100 pcs

Range of product

Acti9

Range

Acti9

Product or component type

Connector

Device short name

connectors Ti24

Accessory / separate part category

Connection accessory

Quantity per set

Set of 12

Connections - terminals

Spring connector 5 pin(s)

Range compatibility

Acti 9

Product compatibility

OF+SD 24; RCA iC60; IATL 24; Acti 9 Smartlink; Reflex iC60; IOF+SD 24; IACT 24

Market segment

Small commercial

Compatibility code

Connectors Ti24

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

2.000 cm

Package 1 Width

9.500 cm

Package 1 Length

12.500 cm

Package 1 Weight

37.000 g

Unit Type of Package 2

S02

Number of Units in Package 2

100

Package 2 Height

15.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

4.096 kg

Country of origin

DE

Warranty (in months)

18

Width

19.54 mm

Height

7.8 mm

Depth

22.9 mm

Shape

Rectangular

Rated voltage

24 V

With wire protection

Yes

With housing

Yes

Suitable for distribution board

Yes

Number of poles

5

Contact type

Pin

Ambient temperature

0–60 °C

Operating temperature

0–65 °C

Rated surge voltage

2.5 kV

Type of electric connection

Spring clamp connection

Overvoltage category

III

Pollution degree

2

Diameter plug-in contact

2.2 mm

Contact insert without contacts

No

Connectable conductor cross section solid-core

0.5–1.5 mm²

Connectable conductor cross section multi-wired

0.5–1.5 mm²

With protective conductor

No

Material contact

Nickel

Material connector insert

Thermoplastic

Rated current In

8 A

Material of contact insert

Thermoplastic

Min. number of insertion cycles

100

Number of control contacts

5

HS Code

8544.42
