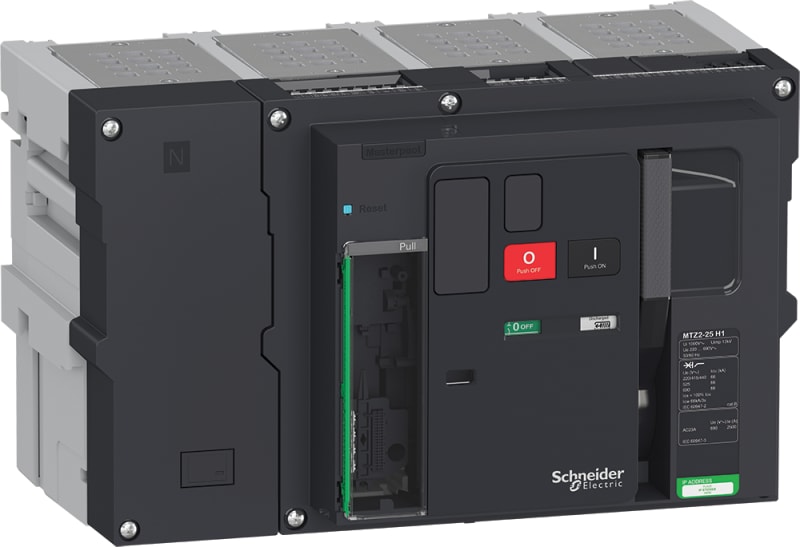

Schneider Electric circuit breaker basic frame, Masterpact MTZ2 25H1, 2500 A, 66 kA at 440 VAC 50/60 Hz, 4P, drawout, without Micrologic LV848306

Schneider Electric LV848306 Circuit breaker Masterpact MTZ2 25H1 2500A 4p withdrawable without protection, pocket and connection

Manufacturer part number (MPN)

LV848306

EAN / GTIN

3606480808944

HS code

8536.90

Sales unit

pcs

Rated current

2500 A

Range

MasterPacT

Product name

MasterPact MTZ2

Device short name

MTZ2 25 H1

Product or component type

Circuit breaker

Device application

Power distribution protection

Poles description

4P

Neutral position

Left

Control type

Without control unit

Product compatibility

control unit MicroLogic 2.0 X; control unit MicroLogic 5.0 X; control unit MicroLogic 6.0 X; control unit MicroLogic 7.0 X; control unit MicroLogic 2.0 Xi; control unit MicroLogic 5.0 Xi; control unit MicroLogic 6.0 Xi; control unit MicroLogic 7.0 Xi

[In] rated current

2500 A at 40 °C

Breaking capacity code

H1 66 kA 415 V AC

[Ue] rated operational voltage

690 V AC 50/60 Hz

Suitability for isolation

Yes conforming to EN/IEC 60947-2

Selectivity category

Category B

mounting mode

Drawout

Breaking capacity

66 kA at 220/415 V AC 50/60 Hz; 66 kA at 440 V AC 50/60 Hz; 66 kA at 500/525 V AC 50/60 Hz; 66 kA at 660/690 V AC 50/60 Hz

[Ics] rated service breaking capacity

66 kA at 220/415 V AC 50/60 Hz; 66 kA at 440 V AC 50/60 Hz; 66 kA at 500/525 V AC 50/60 Hz; 66 kA at 660/690 V AC 50/60 Hz

[Icw] rated short-time withstand current

66 kA 0.5 s; 66 kA 1 s; 66 kA 3 s

[Icm] rated short-circuit making capacity

145 kA 220/415 V AC at 50/60 Hz; 145 kA 440 V AC at 50/60 Hz; 145 kA 500/525 V AC at 50/60 Hz; 145 kA 660/690 V AC at 50/60 Hz

Sensor rating

1250 A; 1600 A; 2000 A; 2500 A

[Ui] rated insulation voltage

1000 V AC 50/60 Hz

[Uimp] rated impulse withstand voltage

12 kV

Power dissipation in W

600 W

Maximum breaking time

25 ms

Maximum closing response time

70 ms

Mounting support

Rails; Base plate

Upside connection

Front; Rear

Downside connection

Front; Rear

Connection pitch

115 mm

Mechanical durability

20000 cycles with periodic preventive maintenance

Electrical durability

AC-3: 6000 cycles 440/690 V AC 50/60 Hz conforming to EN/IEC 60947-3; 2500 cycles 690 V AC 50/60 Hz conforming to EN/IEC 60947-2; 5000 cycles 440 V AC 50/60 Hz conforming to EN/IEC 60947-2; AC-23A: 2500 cycles 690 V AC 50/60 Hz conforming to EN/IEC 60947-3; AC-23A: 5000 cycles 440 V AC 50/60 Hz conforming to EN/IEC 60947-3

Height

Drawout circuit breaker with chassis: 439 mm; Drawout circuit breaker without chassis: 300 mm

Width

Drawout circuit breaker with chassis: 556 mm; Drawout circuit breaker without chassis: 493 mm

Depth

Drawout circuit breaker with chassis: 403 mm; Drawout circuit breaker without chassis: 300 mm

Product weight

120 kg

Standards

EN/IEC 60947-1; EN/IEC 60947-2; EN/IEC 60947-2 Annex H; IEC 61557-12

Product certifications

CE; IECEE CB Scheme

IP degree of protection

IP30 conforming to EN 60529

Pollution degree

3 conforming to IEC 60947-1

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…85 °C

Operating altitude

0...2000 m without derating; 2000...5000 m with derating

Number of Units in Package 1

1

Country of origin

FR

Warranty (in months)

18

HS Code

8536.90

• EAN 3606480808944
• SAP 1200050777
• Code 81878760
