RJ45 Dob sent plate DPM straight an
Pricing
Request a quote
We reply within 24 hours
Product Description

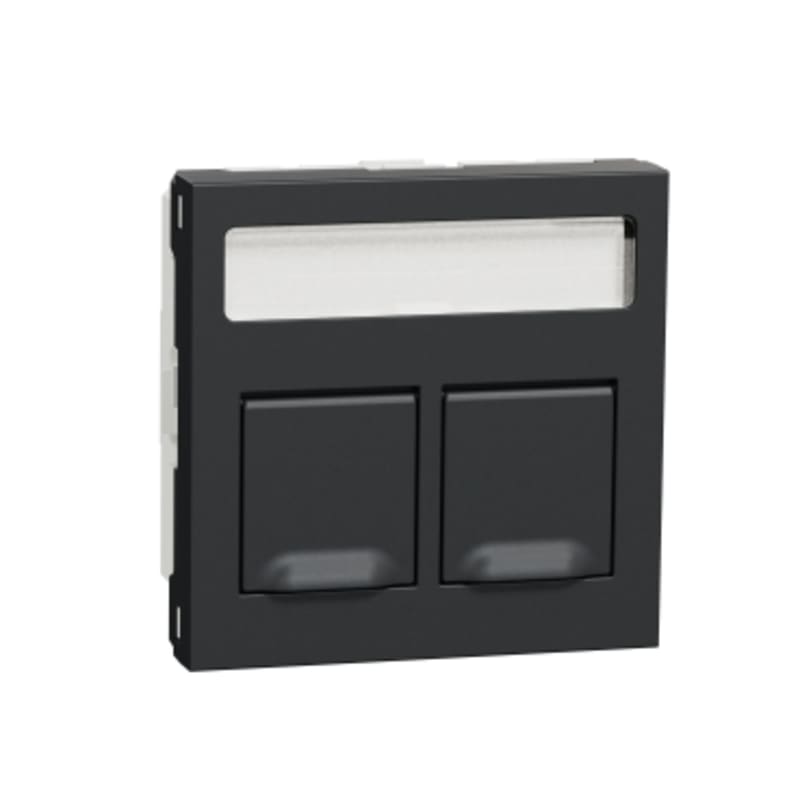

Schneider Electric NU942254 RJ45 - Double Senter Plate DPM - straight - Anthracite.
Technical Specifications
- Manufacturer part number (MPN)
- NU942254
- EAN / GTIN
- 3606481464286
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- New Unica
- Product or component type
- Central plate
- Accessory / separate part category
- Fixing accessory
- Device presentation
- Mechanism with cover plate
- Socket number
- 2
- Provided equipment
- Protective flap; Label holder
- Colour tint
- Anthracite (RAL 7021)
- Connector type
- RJ45
- Device mounting
- Flush
- fixing mode
- Clip-in
- Installation direction
- Straight
- Cover type
- Shutter
- Number of modules
- 2 modules
- Type of footprint
- DPM
- Material
- Thermoplastic ABS-UV stabilised: central plate
- Surface finish
- Painted powder coated
- surface treatment
- Untreated
- Depth
- 27 mm
- Width
- 45 mm
- Height
- 45 mm
- resistance to chemical agents
- Resistant to alcohol (70 %); Resistant to alcohol (96 %); Resistant to A-Lactic Acid; Resistant to diluted quaternary ammonium; Resistant to diluted bleach; Resistant to diluted ammonia; Resistant to soapy water; Resistant to crystal cleaner; Resistant to hydrogen peroxide 10 volumes; Resistant to hexane
- IP degree of protection
- IP20
- IK degree of protection
- IK01
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Number of Units in Package 3
- 180
- Warranty (in months)
- 18
- Mounting method
- Flush-mounted
- Assembly arrangement
- Central cover plate
- Colour
- Anthracite
- Halogen free
- Yes
- With hinged lid
- Yes
- Utilization
- RJ45
- Outlet direction
- Straight
- With strain relief
- Yes
- Material quality
- Thermoplastic
- Imprintable label
- Imprintable label snap-in in intermediate ring
- Suitable for number of connectors
- 2
- Contact type
- Female
- Type of fastening
- Engage (snap)
- Shielded buses
- No
- Shielded housing
- No
- With lighting
- No
- Luster terminal
- No
- RAL-number (similar)
- 7021
- With dust cover
- Yes
- With imprint
- Yes
- Impact strength
- IK04
- With buses/couplings
- No
- Support ring
- No
- Transparent
- No
- Surface finishing
- Matt
- Suitable for degree of protection (IP)
- IP20
- Device width
- 45 mm
- Device height
- 45 mm
- Device depth
- 22 mm
- Min. depth of built-in installation box
- 40 mm
- Isolated connections
- No
- Anti-bacterial treatment
- No
- Country of origin
- Spain
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 3606481464286
- SAP 1200478142
- Code 82563086
Product Documentation
