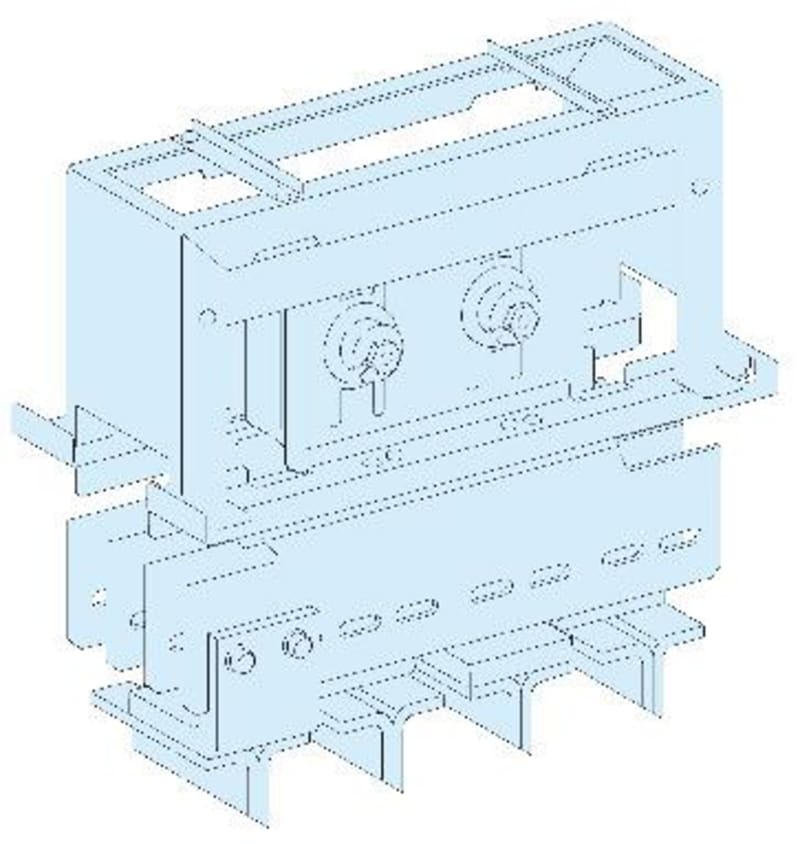

Schneider Electric CANALIS Connection 2500A MTZ2/NW 3P Prisma P LVS04725
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04725 Canalis Connection 2500A MTZ2 3P for PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04725
- EAN / GTIN
- 3606481868190
- Sales unit
- pcs
- Rated current
- 2500 A
- Number of poles
- 3P
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Interface and connection Canalis
- product name
- PrismaSeT PrismaSeT P enclosure
- Accessory / separate part category
- Interface accessory
- Standards
- IEC 61439-2, inside enclosure; IEC 61439-1
- Product certifications
- ASTA
- Cubicle-device connection
- KT with Canalis
- Poles description
- 3P
- installation description
- Cubicle - width 650 mm
- Cubicle depth
- 600 mm: front; 600 + 400 mm: rear
- Installed device
- Masterpact: drawout NW20...25 - control: toggle vertical installation; Masterpact: fixed NW20...25 - control: toggle vertical installation
- [Ie] rated operational current
- 2500 A
- Colour
- Natural
- Height
- 350 mm
- Width
- 575 mm
- Depth
- 450 mm
- Product weight
- 53.56 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 600 mm PrismaSeT P cubicle Masterpact NW20...25 drawout toggle vertical 3P 1 front connection on Canalis 28; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW20...25 drawout toggle vertical 3P 1 rear connection on Canalis 17; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW20...25 fixed toggle vertical 3P 1 front connection on Canalis 28; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW20...25 fixed toggle vertical 3P 1 rear connection on Canalis 16
- Number of Units in Package 1
- 1
- Warranty (in months)
- 18
- Country of origin
- Hungary
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481868190
- SAP 1200547038
- Code 82880628
