Schneider Electric Harmony XAC, Single contact block, spring return, single speed, spring return, front mounting, 2 NO + 1 NC XENG1491

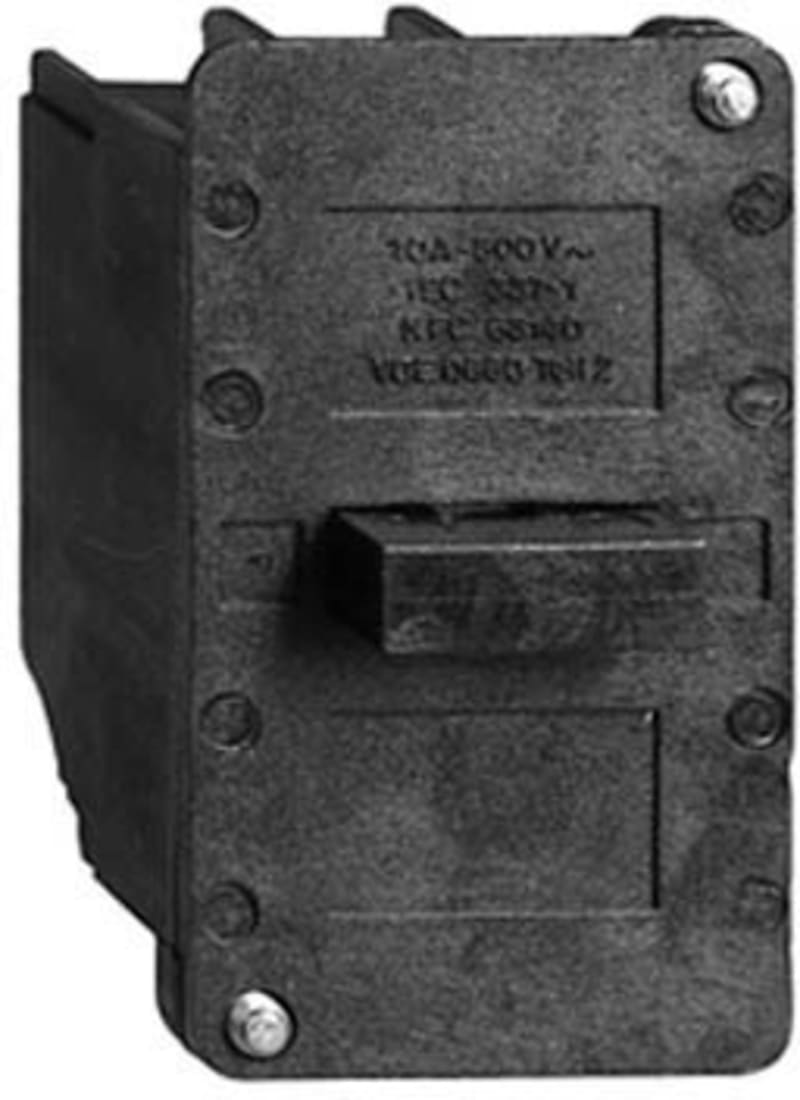

Schneider Electric XENG1491 Contact Element.

Manufacturer part number (MPN)

XENG1491

EAN / GTIN

3389110645712

Sales unit

pcs

Package quantity

100 pcs

Range of product

Harmony XAC

Product or component type

Contact block

Component name

XENG

Electrical circuit type

Control circuit

Contact block application

Single speed

Contact block type

Single

Type of operator

Spring return

Product compatibility

XACA9...head; XACA

Contacts type and composition

1 NC + 2 NO

Mounting of block

Front mounting

Contact operation

Slow-break; Simultaneous

Connections - terminals

Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end; Screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end

Mechanical durability

1000000 cycles

Contact code designation

A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A; A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A; Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A; Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A

[Ithe] conventional enclosed thermal current

10 A

[Ui] rated insulation voltage

600 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

Maximum resistance across terminals

25 MOhm

Operating force

18 N

Short-circuit protection

10 A fuse protection by cartridge fuse type gG

Rated operational power in W

40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C; 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C; 65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C

Terminals description ISO n°1

(21-22)NC; (13-14)NO; (33-34)NO

Product weight

0.04 kg

Standards

IEC 60947-5-1; CSA C22.2 No 14; UL 508

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…70 °C

Vibration resistance

15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

Shock resistance

100 gn conforming to IEC 60068-2-27

Overvoltage category

Class II conforming to IEC 61140

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.500 cm

Package 1 Width

3.000 cm

Package 1 Length

3.500 cm

Package 1 Weight

41.000 g

Unit Type of Package 2

S02

Number of Units in Package 2

100

Package 2 Height

15.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

4.407 kg

Country of origin

CZ

Warranty (in months)

18

HS Code

8536.50
