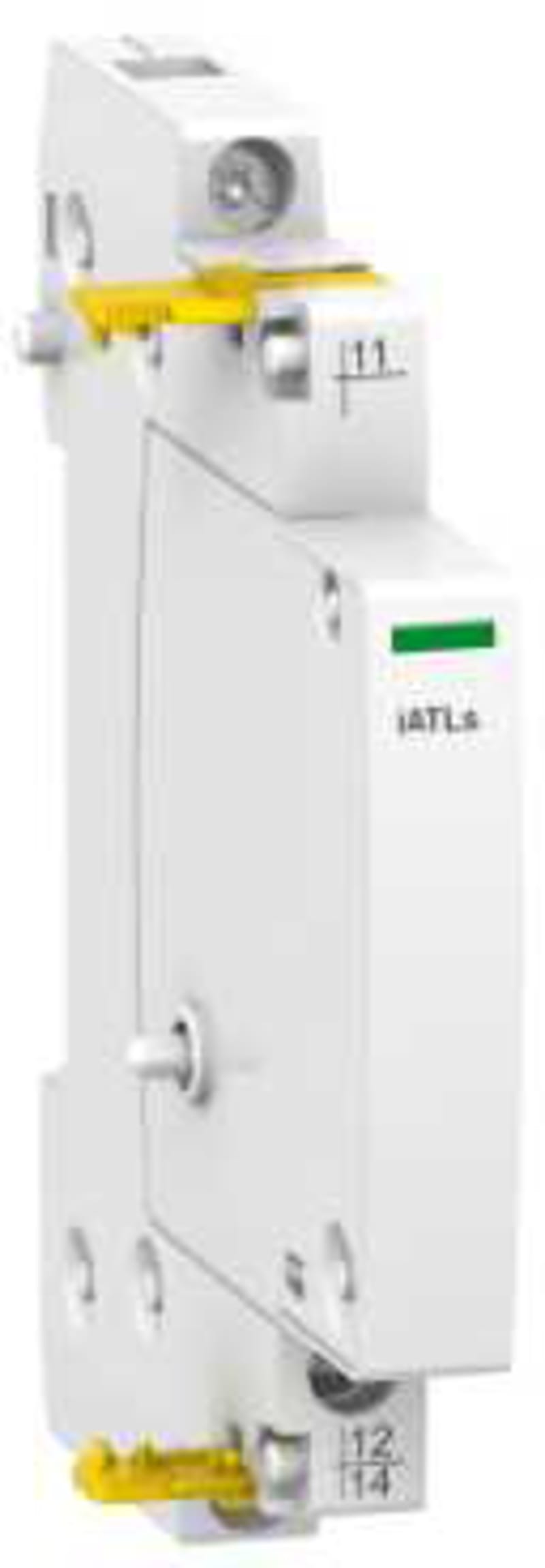

Schneider Electric ACTI9 remote indication iATLs A9C15405

Schneider Electric A9C15405 Auxiliary Contact iATLs for iTL.

Manufacturer part number (MPN)

A9C15405

EAN / GTIN

3606480374845

Sales unit

pcs

Package quantity

12 pcs

range of product

Acti9

Device short name

iATLs

Product or component type

Remote indication auxiliary

Signal contacts composition

1 C/O

Signalling circuit voltage

24 V AC/DC: 10 mA; 12...240 V AC: 50/60 Hz 6 A; 12...24 V DC: 6 A; 15...240 V AC: 50/60 Hz 2 A; 13...24 V DC: 2 A

[Uc] control circuit voltage

24...240 V AC 50/60 Hz; 24...240 V DC

[Ui] rated insulation voltage

440 V

[Uimp] rated impulse withstand voltage

4 kV

mounting mode

Fixed, on right side of TL

Mounting support

DIN rail

9 mm pitches

1

Height

81 mm

Width

9 mm

Depth

69 mm

Colour

White

Connections - terminals

Tunnel type terminals0.5…4 mm² - rigid; Tunnel type terminals0.5…4 mm² - rigid - with cable end; Tunnel type terminals1…4 mm² - flexible; Tunnel type terminals1…4 mm² - flexible - with cable end

Wire stripping length

11 mm

Tightening torque

1 N.m

Range compatibility

Acti9 iTL; Acti9 iTLi; Acti9 iTLs; Acti9 iTLc; Acti9 iTLm

Product compatibility

ITL (32 A); ITL (16 A)

Overvoltage category

III

IP degree of protection

IP20 conforming to IEC 60529

Tropicalisation

2

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-20…50 °C

Ambient air temperature for storage

-40…70 °C

Standards

EN/IEC 60669-2-2

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

2.100 cm

Package 1 Width

9.300 cm

Package 1 Length

7.700 cm

Package 1 Weight

40.000 g

Unit Type of Package 2

BB1

Number of Units in Package 2

12

Package 2 Height

8.600 cm

Package 2 Width

9.900 cm

Package 2 Length

26.500 cm

Package 2 Weight

531.000 g

Unit Type of Package 3

S03

Number of Units in Package 3

108

Package 3 Height

30.000 cm

Package 3 Width

30.000 cm

Package 3 Length

40.000 cm

Package 3 Weight

5.267 kg

Country of origin

BE

Warranty (in months)

18

Function

Signalling switch

Voltage type

AC

Rated voltage

240 V

Installed at the factory

No

Width in number of modular spacings

0.5

Rated switch current

6 A

Device fitting

Contactor/relay

Additional equipment

Signalling switch

Voltage type for actuating

AC

Number of contacts as change-over contact

1

With auto test for earth leakage function

No

Suitable for max. number of poles main contact unit (total)

4

Suitable for max. current main contact unit

32 A

HS Code

8536.49
