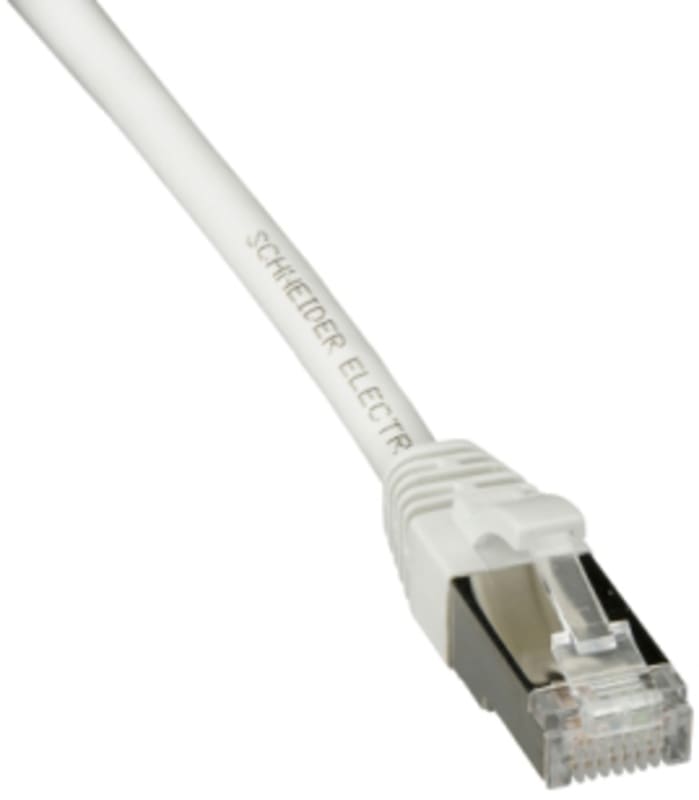

Schneider Electric Patch cord, Actassi, Category 6A, S/FTP, LSZH, 3 m, white ACTPC6ASFLS30WE
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ACTPC6ASFLS30WE Actassi patch cord Cat 6A S/FTP AWG28 halogen-free LSZH, 3 meter, white.
Technical Specifications
- Manufacturer part number (MPN)
- ACTPC6ASFLS30WE EAN / GTIN: 3606481051691 HS code: 8544.42 Sales unit: pcs Package quantity: 38 pcs Rated current: 6 A range: Actassi product: Patch cord Device application: Communication Colour: White Cable shielding type: S/FTP Type of cable: 4 pair cables length (customizable value in configurator): 3 m Communication network category: 6A Transmission frequency: 500 MHz Contacts material: Phosphor bronze with 50 micro-inches gold over 100 micro-inches nickel AWG gauge: 28 AWG Maximum number of cord per bundle: 48 in cabinet for 4PPoE Type 3 (up to 60 W); 24 in cabinet for 4PPoE Type 4 (up to 90 W) Maximum patch cord cumulated length: 10 m with 84 m 2-point permanent link at 20 °C; 7 m with 90 m 2-point permanent link at 20 °C minimum number of matings: 750 cycles Cable outer diameter: 5.5 mm +/- 0.2 mm material: Copper: conductor; PE (polyethylene): wire insulation; Aluminium/polyester: foil; Tin plated copper: braid shield; PE (polyethylene): sheath Flame retardance: LSZH Standards: ISO/IEC 11081-2017 performance; TIA/EIA-568-C.2 performance; EN 50173-2018 performance; IEC 61935-2 performance Warranty (in months): 18
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3606481051691
- SAP 1200537702
- Code 82699926
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Modular multifunction 3-Phase supply control relay, 5 A, 1 CO, 208...480 V AC RM17TU00
Schneider Electric
Busbar Horizontal-LinergyLGYE 3200A
LVS04567
Schneider Electric
Schneider Electric IMT80303 Multifix Cast-In Cover for 1-Module Wall Box
Schneider Electric
Schneider Electric A9F07213 ACTI9 IC60H Miniature Circuit Breaker 2P 13 A, Curve C
Schneider Electric
Schneider Electric ARGUS standard indoor 360° - carton CCT56P002
Schneider Electric
Door for PrismaSeT G cabinet 33MOD B600-IP30
LVS08224
Schneider Electric
Schneider Electric Patch cord, Actassi, Category 6A, S/FTP, LSZH, 5 m, white ACTPC6ASFLS50WE
Schneider Electric
Schneider Electric NSYS3D3315P Wall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 300X300X150MM, IP66, IK10
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ACTPC6ASFLS30WE?
- ACTPC6ASFLS30WE can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is ACTPC6ASFLS30WE.
- What is the HS code for ACTPC6ASFLS30WE?
- The customs tariff (HS) code for ACTPC6ASFLS30WE is 8544.42.
- Who manufactures ACTPC6ASFLS30WE?
- ACTPC6ASFLS30WE is a Schneider Electric product in the Cables & Wiring range.
- Is a datasheet available for ACTPC6ASFLS30WE?
- Yes — the ACTPC6ASFLS30WE datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ACTPC6ASFLS30WE?
- The minimum order quantity is 1.
- Is ACTPC6ASFLS30WE available?
- Yes — ACTPC6ASFLS30WE is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
