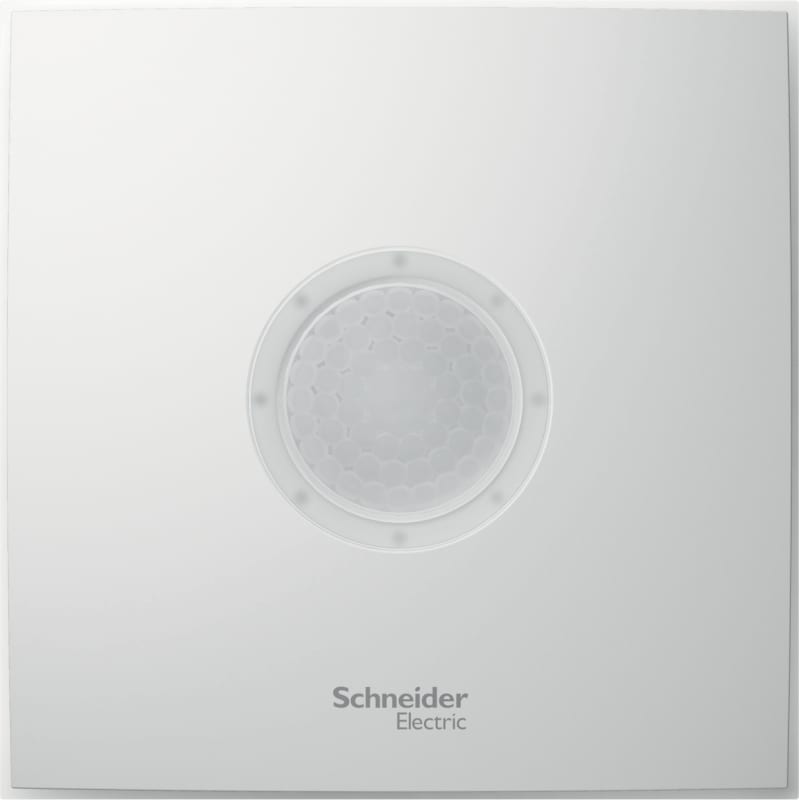

Schneider Electric ARGUS standard indoor 360° - carton CCT56P002
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric CCT56P002 Argus motion detector 360° IP20 for ceiling mounting. Polar-white.
Technical Specifications
- Manufacturer part number (MPN)
- CCT56P002
- EAN / GTIN
- 3606480145179
- Sales unit
- pcs
- Package quantity
- 36 pcs
- IP rating
- IP20
- Range of product
- ARGUS standard movement detector
- Range
- ARGUS
- Product or component type
- Movement detector
- Load type
- Capacitive: : 6 A, 28 µF, AC; Halogen lamp: 1000 W, AC; Compact fluorescent lamp: 4 x 23 W, AC; Low voltage halogen lamp with wire-wound transformer: 500 VA; Low voltage halogen lamp with electronic transformer: 315 VA; Fluorescent tube: 250 VA, AC; Incandescent lamp: 1000 W, AC
- Colour tint
- White
- Type of packing
- Carton
- [Ue] rated operational voltage
- 220...240 V
- Network frequency
- 50 Hz
- Output current
- 10 A
- Type of setting
- Time adjustment; Light sensitivity adjustable
- Time delay
- 3 s...10 min
- Light intensity adjustment
- 5…2000 lux
- Horizontal detection angle
- 0…360 °
- detection range
- Radius: 3.9 m
- Material
- ABS + PC matt
- Device mounting
- Ceiling
- Mounting height
- 2.4 m
- Condition of use
- Indoor use only
- IP degree of protection
- IP20
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 20
- Warranty (in months)
- 18
- Nominal voltage
- 230 V
- Mounting method
- Surface mounted
- Colour
- White
- Width
- 135 mm
- Model
- Movement sensor
- Height
- 135 mm
- Depth
- 43 mm
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- Voltage type
- AC
- Switch-off delay
- 600 s
- Material quality
- Thermoplastic
- Max. reach frontally
- 7.4 m
- Max. reach sideways
- 7.4 m
- Max. switching power
- 1000 W
- Max. starting current
- 10 A
- Diameter reach on floor
- 7.4 m
- Scan angle
- 360 °
- Impact strength
- IK02
- Degree of protection (IP)
- IP20
- Surface finishing
- Glossy
- Min. switch-on time
- 3 s
- Max. duty cycle
- 10 min
- Suitable for wall mounting
- No
- Optimum mounting height
- 2.4 m
- With DALI interface
- No
- Min. starting current
- 0 A
- Movement sensor/presence detector technology
- Passive infrared
- Sensor type
- Passive infrared
- Country of origin
- China
- Min. depth of built-in installation box
- 0 mm
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3606480145179
- SAP 1000498208
- Code 8613601
Product Documentation
More from Schneider Electric
Schneider Electric
Door for PrismaSeT G cabinet 33MOD B600-IP30
LVS08224
Schneider Electric

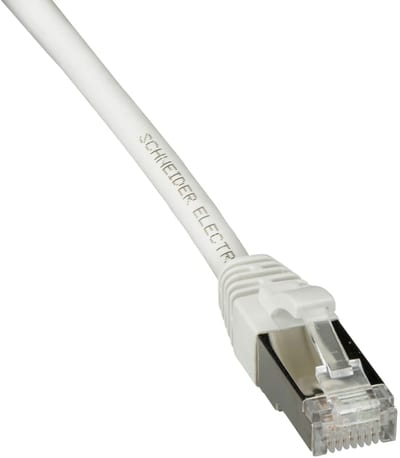

Schneider Electric Patch cord, Actassi, Category 6A, S/FTP, LSZH, 5 m, white ACTPC6ASFLS50WE
Schneider Electric

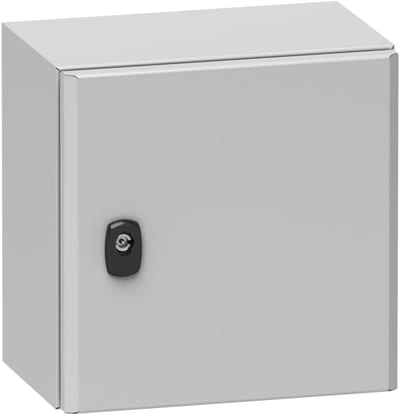

Schneider Electric NSYS3D3315P Wall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 300X300X150MM, IP66, IK10
Schneider Electric
Multidetektor, Intellia EDI-30 opt/heat
FFS06720230
Schneider Electric

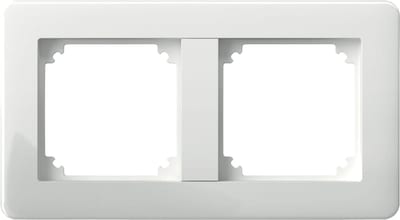

Exxact 2*FRAME Primo White
WDE002302
Schneider Electric

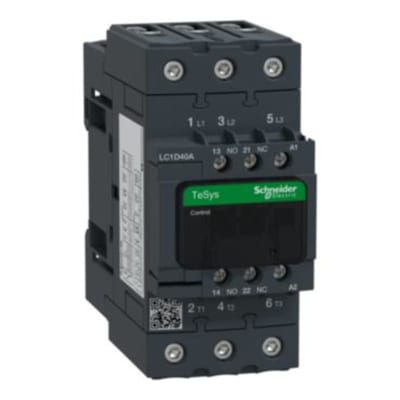

Schneider Electric Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3E, <=400V, 40A, 110V AC 50/60Hz coil, screw clamp terminals LC1D40AF7
Schneider Electric

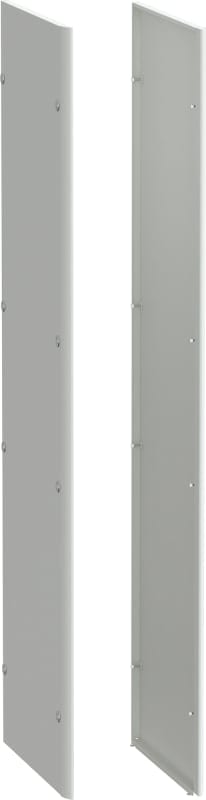

SIDEPLATER-2 pcs- IP30-D600-PRISMASET P
LVS08760
Schneider Electric

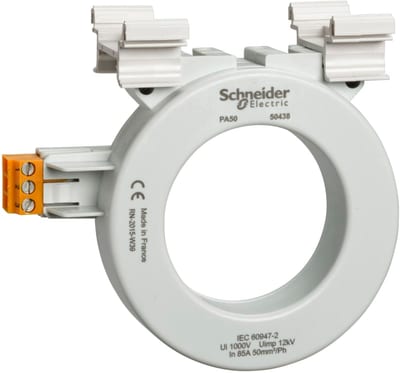

Schneider Electric 50438 closed toroid A type, for Vigirex and Vigilhom, PA50, inner diameter 50 mm, rated current 85 A
