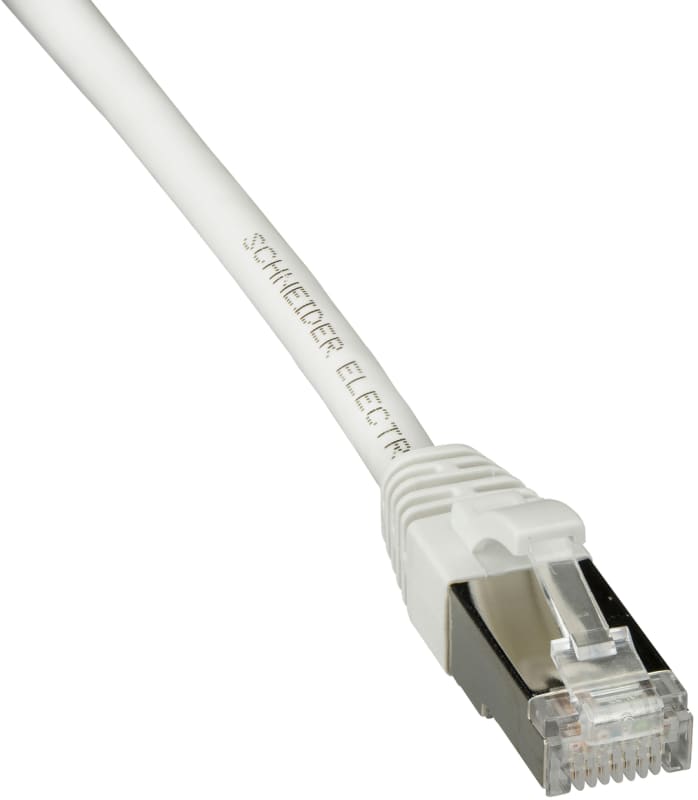

Schneider Electric Patch cord, Actassi, Category 6A, S/FTP, LSZH, 5 m, white ACTPC6ASFLS50WE
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ACTPC6ASFLS50WE Actassi patch cord Cat 6A S/FTP AWG28 halogen-free LSZH, 5 meter, white.
Technical Specifications
- Manufacturer part number (MPN)
- ACTPC6ASFLS50WE EAN / GTIN: 3606481051707 HS code: 8544.42 Sales unit: pcs Package quantity: 28 pcs Rated current: 6 A range: Actassi product: Patch cord Device application: Communication Colour: White Cable shielding type: S/FTP Type of cable: 4 pair cables length (customizable value in configurator): 5 m Communication network category: 6A Transmission frequency: 500 MHz Contacts material: Phosphor bronze with 50 micro-inches gold over 100 micro-inches nickel AWG gauge: 28 AWG Maximum number of cord per bundle: 48 in cabinet for 4PPoE Type 3 (up to 60 W); 24 in cabinet for 4PPoE Type 4 (up to 90 W) Maximum patch cord cumulated length: 10 m with 84 m 2-point permanent link at 20 °C; 7 m with 90 m 2-point permanent link at 20 °C minimum number of matings: 750 cycles Cable outer diameter: 5.5 mm +/- 0.2 mm material: Copper: conductor; PE (polyethylene): wire insulation; Aluminium/polyester: foil; Tin plated copper: braid shield; PE (polyethylene): sheath Flame retardance: LSZH Standards: ISO/IEC 11081-2017 performance; TIA/EIA-568-C.2 performance; EN 50173-2018 performance; IEC 61935-2 performance Warranty (in months): 18
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3606481051707
- SAP 1200537755
- Code 82699956
Product Documentation
