Busbar Horizontal-LinergyLGYE 3200A

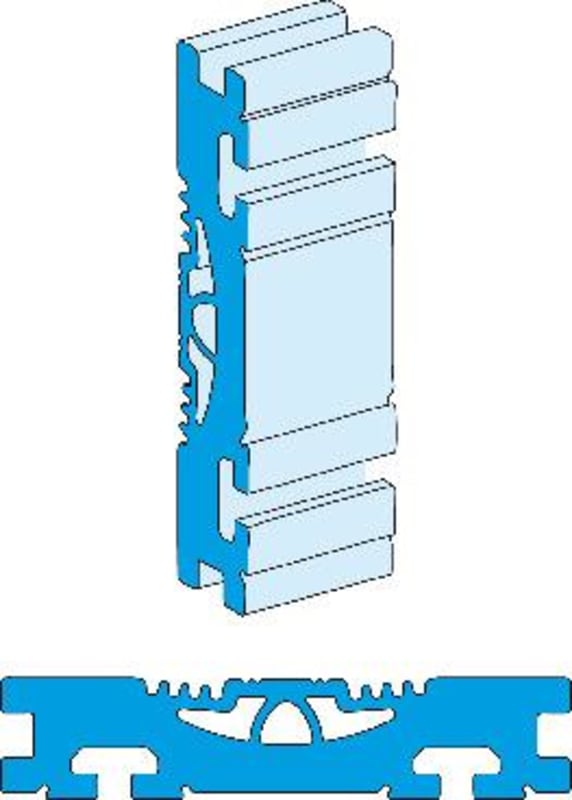

Schneider Electric LVS04567 — LINERGY LGYE PROFILE 3200A LENGTH 2000MM.

Manufacturer part number (MPN)

LVS04567

EAN / GTIN

3606481870612

Sales unit

pcs

Rated current

3200 A

Range

Linergy

Range of product

Linergy

Product or component type

Profile busbar

Product name

Linergy LGYE

Range compatibility

PrismaSeT PrismaSeT P enclosure

Accessory / separate part category

Busbar accessory

Busbar description

Linergy

Quantity per set

Set of 1

Installation direction

Horizontal, operating position: top; Horizontal, operating position: bottom

installation description

Cubicle - width 650 mm; Cubicle - width 650 + 150 mm; Cubicle duct - width 300 mm; Cubicle duct - width 400 mm

[Ui] rated insulation voltage

1000 V

[Uimp] rated impulse withstand voltage

12 kV (degree of pollution: 3)

[Ie] rated operational current

3200 A

[Icw] rated short-time withstand current

60 kA (1 s) for 2 supports (horizontal position); 85 kA (1 s) for 3 supports (horizontal position); 100 kA (1 s) for 4 supports (horizontal position)

Permissible current

3200 A at 35 °C: <= IP31; 2800 A at 35 °C: IP31

Length

2000 mm

Width

150 mm

Depth

31 mm

Product weight

15.6 kg

Colour

Natural

Type of busbar connection

Double t-slot

Connection pitch

Free connection position

Standards

IEC 61439-2; IEC 61439-1

Product certifications

ASTA

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.500 cm

Package 1 Width

15.700 cm

Package 1 Length

210.000 cm

Package 1 Weight

19.016 kg

Unit Type of Package 2

PAL

Number of Units in Package 2

18

Package 2 Height

27.000 cm

Package 2 Width

120.000 cm

Package 2 Length

202.000 cm

Package 2 Weight

362.000 kg

Country of origin

FR

Warranty (in months)

18

Model

Profile

Height

31 mm

Flexible

No

Surface protection

Untreated

Rated current In

3200 A

HS Code

7604.29

• EAN 3606481870612
• SAP 1200546982
• Code 82879140
