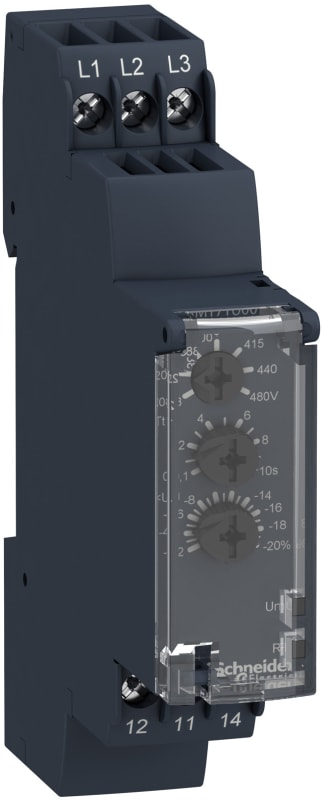

Schneider Electric Modular multifunction 3-Phase supply control relay, 5 A, 1 CO, 208...480 V AC RM17TU00

Monitoring relay 3-phase 208.480V 1C/O.

Manufacturer part number (MPN)

RM17TU00 EAN / GTIN: 3389119405096 Sales unit: pcs Package quantity: 48 pcs Range of product: Harmony Control Relays Relay type: Multifunction control relay Relay name: RM17TU Product or component type: 3-phase control relay Relay monitored parameters: Undervoltage detection; Phase sequence; Phase failure detection Control type: Without test button Contacts type and composition: 1 C/O [Uc] control circuit voltage: 208...480 V Product specific application: For 3-phase supply [Us] rated supply voltage: self-powered Supply voltage limits: 183…528 V AC Supply frequency: 50/60 Hz +/- 10 % Power consumption in VA: 0…22 VA at 400 V AC 50 Hz Measurement range: 208...480 V AC Measurement voltage limits: 183…528 V AC Maximum measuring cycle: 150 ms measurement cycle as true rms value Threshold adjustment voltage: 2...20 % of Un selected; -2...-12 % in the range 208 V AC; -2...-17 % in the range 220 V AC Hysteresis: 2 % Measurement error: < 0.05 %/°C with temperature variation; < 1 % over the whole range with voltage variation Time delay type: Adjustable 0.1...10 s, +/- 10 % of the full scale value Tt- time delay upon fault Reset time: 1500 ms time delay Output contacts: 1 C/O nominal output current: 5 A Maximum switching voltage: 250 V AC Switching capacity in VA: 1250 VA minimum switching current: 10 mA at 5 V DC Maximum switching current: 5 A AC; 5 A DC Electrical durability: 100000 cycles Mechanical durability: 30000000 cycles Response time: < 200 ms (in the event of a fault) Control circuit voltage limits: - 12 % + 10 % Un Control circuit frequency: 50...60 Hz +/- 10 % Phase failure sensitivity: 0.7 Un Electromagnetic compatibility: Emission standard for industrial environments conforming to IEC 61000-6-4; Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3; Immunity for industrial environments conforming to IEC 61000-6-2 Standards: IEC 60255-1 Product certifications: GL; GOST; UL; C-Tick; CSA Marking: CE Directives: 73/23/EEC - low voltage directive; 89/336/EEC - electromagnetic compatibility Ambient air temperature for storage: -40…70 °C; -40…70 °C Ambient air temperature for operation: -20…50 °C Relative humidity: 95 % at 55 °C conforming to IEC 60068-2-30 IP degree of protection: IP20 (terminals) conforming to IEC 60529; IP30 (casing) conforming to IEC 60529 Pollution degree: 3 conforming to IEC 60664-1 Overvoltage category: III conforming to IEC 60664-1 Dielectric test voltage: 2 kV, 1 min AC 50 Hz conforming to IEC 60255-5 Insulation resistance: > 500 MOhm at 500 V DC conforming to IEC 60255-5 [Ui] rated insulation voltage: 400 V conforming to IEC 60664-1 Operating position: Any position without derating Connections - terminals: Screw terminals, 1 x 0.5...1 x 4 mm² (20 AWG...11 AWG) solid without cable end; Screw terminals, 2 x 0.5...2 x 2.5 mm² (20 AWG...14 AWG) solid without cable end; Screw terminals, 1 x 0.2...1 x 2.5 mm² (24 AWG...12 AWG) flexible with cable end; Screw terminals, 2 x 0.2...2 x 1.5 mm² (24 AWG...16 AWG) flexible with cable end Tightening torque: 0.6…1 N.m conforming to IEC 60947-1 Housing material: Polycarbonate Local signalling: LED (green) for power ON; LED (yellow) for relay ON Mounting support: 35 mm symmetrical DIN rail conforming to IEC 60715 Reliability data: MTTFd = 502.2 years; B10d = 470000 Height: 90 mm; 88.9 mm Width: 17.5 mm; 17.8 mm Depth: 72 mm; 71.1 mm Product weight: 0.08 kg; 0.08 kg Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 2.800 cm Package 1 Width: 8.000 cm Package 1 Length: 9.600 cm Package 1 Weight: 86.000 g Unit Type of Package 2: S02 Number of Units in Package 2: 48 Package 2 Height: 15.000 cm Package 2 Width: 30.000 cm Package 2 Length: 40.000 cm Package 2 Weight: 4.708 kg Country of origin: ID Warranty (in months): 18 Type of electric connection: Screw connection With detachable clamps: No Rated control supply voltage AC 50 Hz: 208–480 V Rated control supply voltage AC 60 Hz: 208–480 V Voltage type for actuating: AC Phase sequence monitoring: Yes Phase failure detection: Yes Function under voltage detection: Yes Function overvoltage detection: No Phase imbalance monitoring: No Voltage measuring range: 183–528 V Min. adjustable delay-on energization time: 0.1 s Max. permitted delay-on energization time: 10 s Min. adjustable off-delay time: 0.1 s Max. permitted off-delay time: 10 s Number of contacts as change-over contact: 1

HS Code

8536.49

• EAN 3389119405096
• SAP 1000257651
• Code 8232019
