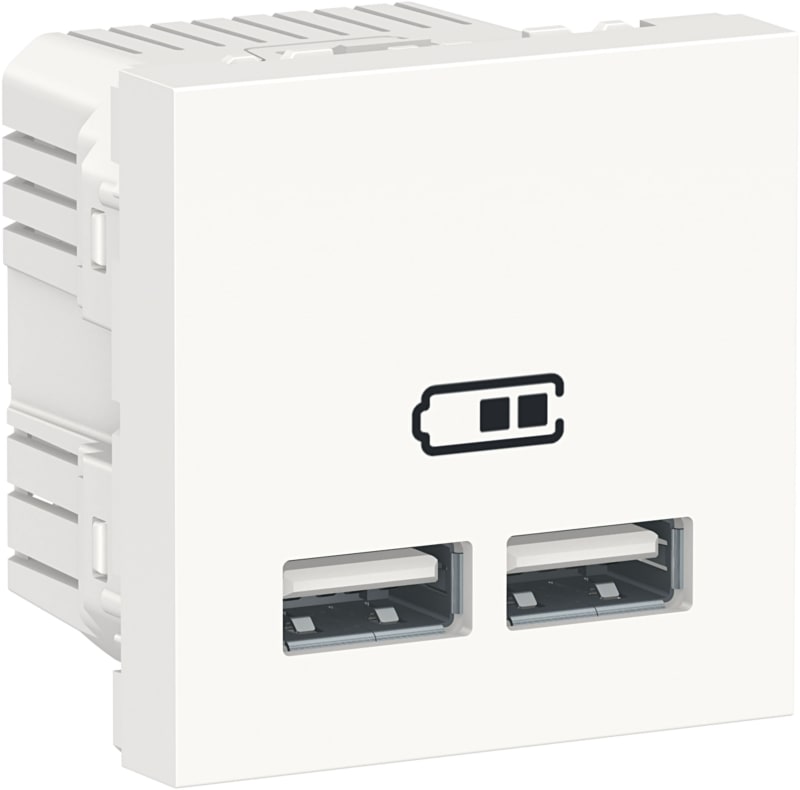

Schneider Electric Double USB socket, New Unica, 2.1A, A+A type, 2 modules, white NU341818

Schneider Electric NU341818 USB charger 2 x Type A - White.

Manufacturer part number (MPN)

NU341818

EAN / GTIN

3606489455835

Sales unit

pcs

Package quantity

10 pcs

Range

New Unica

Product or component type

USB charger

Device presentation

Mechanism with cover plate

Device application

Charger

Device mounting

Flush

Number of modules

2 modules

Type of USB power supply

USB type A + A

Colour tint

White (RAL 9003)

Surface finish

Glossy

[Ue] rated operational voltage

100...240 V AC 50/60 Hz

Nominal output power

10.5 W

Socket number

2

Integrated connection type

2 USB type A 5 V DC, maximum load current: 2.1 A

Material

PC (polycarbonate) GF10 FR: casing; PC (polycarbonate) GF10 FR: internal cover; Thermoplastic ABS-UV stabilised: centre plate

Protection type

Short-circuit protection

Number of terminals

2 screw terminals

shape of screw head

Pozidriv No 1

Clamping connection capacity

1.5...2.5 mm² for rigid cable(s); 1.5...2.5 mm² for flexible cable(s)

Wire stripping length

8 mm

Product compatibility

All devices fulfilling the EN 62684 standard

fixing mode

Clip-in

Type of packing

Flow-pack

Ambient air temperature for operation

5…45 °C

Ambient air temperature for storage

-5…50 °C

Standards

IEC 62368-1; IEC 62680-3; EN 61000-6-3; EN 61000-6-1

Height

45 mm

Width

45 mm

Depth

40 mm

Embedding depth

27 mm

Product weight

0.082 kg

resistance to chemical agents

Resistant to alcohol (70 %); Resistant to alcohol (96 %); Resistant to A-Lactic Acid; Resistant to diluted quaternary ammonium; Resistant to diluted bleach; Resistant to diluted ammonia; Resistant to soapy water; Resistant to crystal cleaner; Resistant to hydrogen peroxide 10 volumes; Resistant to hexane

Electrical insulation class

Class II

IK degree of protection

IK04

IP degree of protection

IP2XC

Number of Units in Package 1

1

Number of Units in Package 2

10

Number of Units in Package 3

100

Warranty (in months)

18

Number of ports USB-A

2

Number of outputs

2

Operating voltage

100–240 V

Frequency

50–60 Hz

Max. output current

2400 mA

Output voltage

5 V

Connection type

Screwed terminal

Colour

Beige

RAL-number

1013

Device width

45 mm

Device height

45 mm

Device depth

40 mm

Min. depth of built-in installation box

40 mm

Suitable for degree of protection (IP)

IP20

Impact strength

IK04

Anti-bacterial treatment

No

Country of origin

China

HS Code

8504.40

• EAN 3606489455835
• SAP 1200230143
• Code 82177706
